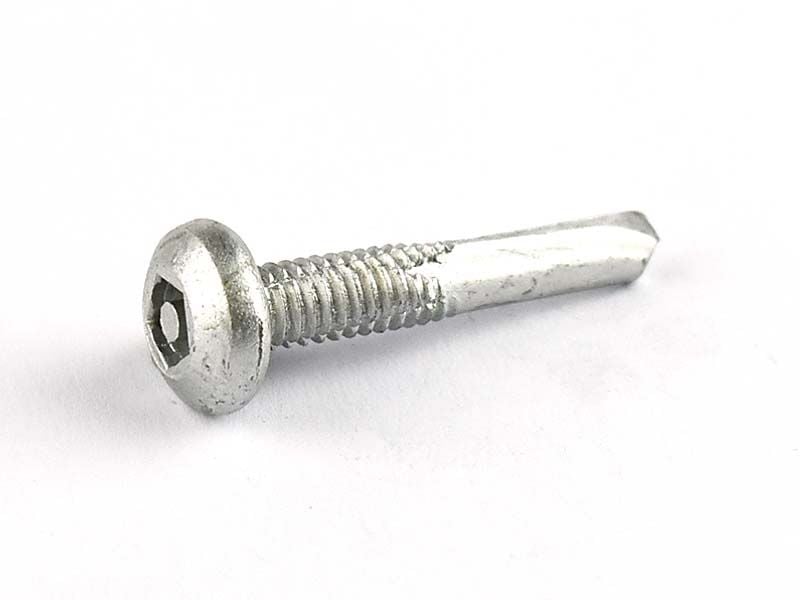

PROLOK Pentaforce Pan SD500® Galvanised
PROLOK Pentaforce Pan SD500® Galvanised
High Security ● ● ●
SD500® screws are a self drilling screw featuring a extended (no. 5) drill point for drilling through steel up to 12mm.
Designed to cut its own mating threads into the material to fasten securely in one action. You can ensure effective installation by completely drilling through your joining material allowing the drill point to be completely drilled through.
Pentaforce Pan screw offers medium security, it features a 5 sided pentagon recess to stop all standard driver tool shapes. The drilling tip is suitable for heavy duty steel drilling.
It requires a special driver to fix and tighten to desired torque.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Security Level | High Security |
|---|---|
| Tooling | Restricted availability – registration of tool is required with purhcase of tools. |
| Driver Type | Pentaforce Security Bit |
| Head Type | Pan |
| Diameter / Gauge | 12g |
| Thread Type | Coarse |
| Point Type | Drill Point No.5 |
| Material Grade | Carbon Steel |
| Coating & Plating | Galvanised |
| For use with | Aluminium, Stainless Steel, Steel |
Technical Information
| SKU | Item | Material | Drv Direction | Driver Type |
|---|---|---|---|---|
| 1573.0122432 | 12-24 x 32 | GAL | 2-WAY | PFD2 |
| 1573.0122450 | 12-24 x 50 | GAL | 2-WAY | PFD2 |
