MBSC Nylon Frame Plug Zinc T40 Torx Countersunk Screw
MBSC Nylon Frame Plug Zinc T40 Torx Countersunk Screw

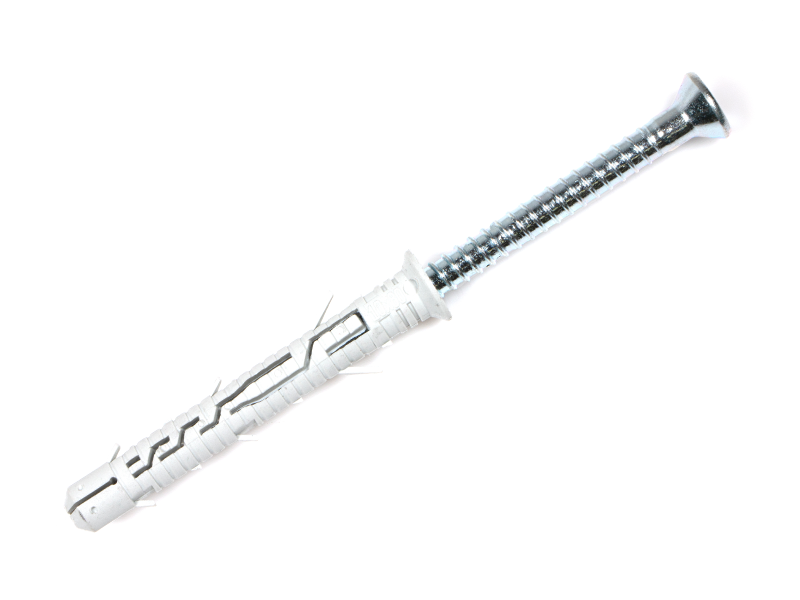

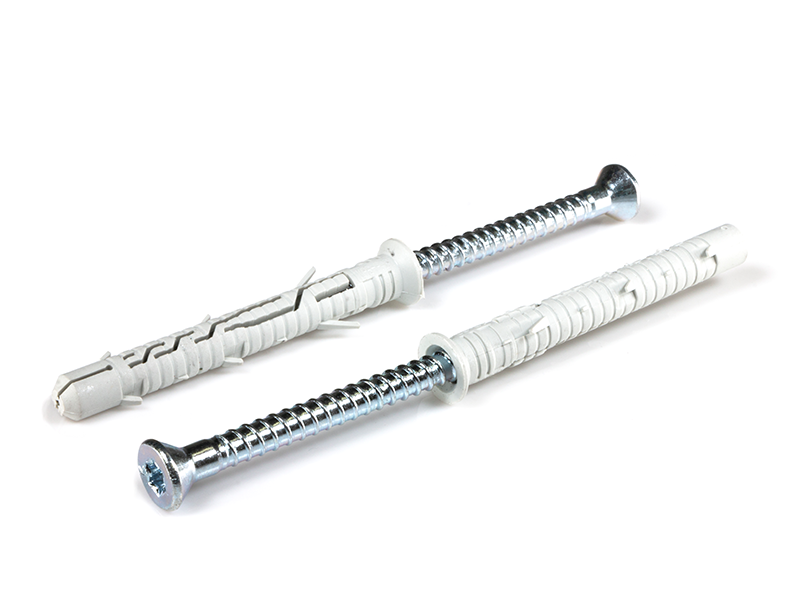

Nylon frame plug installs through fixing, supplied with a zinc plated countersunk torx screw for effective anchoring into lightweight concrete and perforated brick materials. The nylon plug is made from high-quality polyamide PA6 for both indoor and outdoor applications.
Installs in a 10mm hole with a 80mm depth (in substrate) use a T40 torx driver bit to secure.
Effective anchorage length of screw is 70mm; the drilled depth allows for maximum fixture thickness and the required cavity at the end of the drilled hole. Use for facade fixings, profiles, substructures and frames.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|
Technical Information
| SKU | Dia. x Length | Coating | Drill Depth | Fixture Max. | Description |
|---|---|---|---|---|---|
| 1029.0100080 | 10 x 80mm Nylon Plug | Csk Torx Screw ZP | 80mm | 10mm | 10 x 80mm Plug w/screw |
| 1029.0100100 | 10 x 100mm Nylon Plug | Csk Torx Screw ZP | 80mm | 30mm | 10 x 100mm Plug w/screw |
| 1029.0100120 | 10 x 120mm Nylon Plug | Csk Torx Screw ZP | 80mm | 50mm | 10 x 120mm Plug w/screw |
| 1029.0100140 | 10 x 140mm Nylon Plug | Csk Torx Screw ZP | 80mm | 70mm | 10 x 140mm Plug w/screw |
