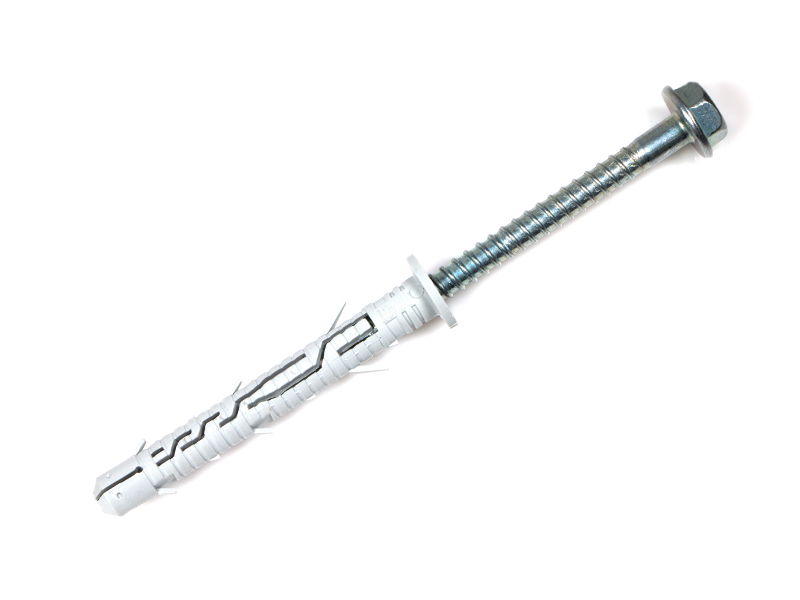

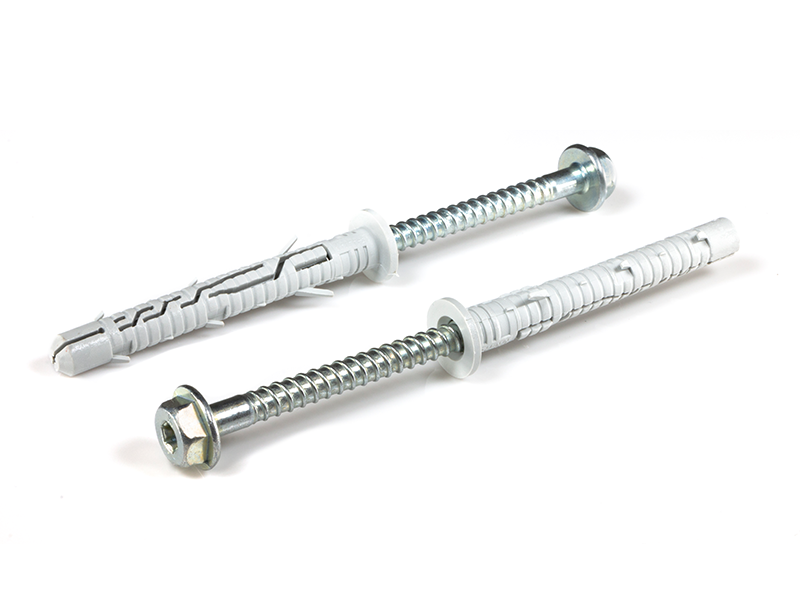

MBSH Nylon Frame Plug Zinc Hex Screw

Frame plug installs through fixing, supplied with a zinc plated hex flange screw for effective anchoring into lightweight concrete and perforated brick materials. The nylon plug is made from high-quality polyamide PA6 for both indoor and outdoor applications.

Installs in a 10mm hole with a 80mm depth (in substrate) use a hex socket driver bit to secure.

Effective anchorage length of screw is 70mm; the drilled depth allows for maximum fixture thickness and the required cavity at the end of the drilled hole. Use for facade fixings, profiles, substructures and frames.
