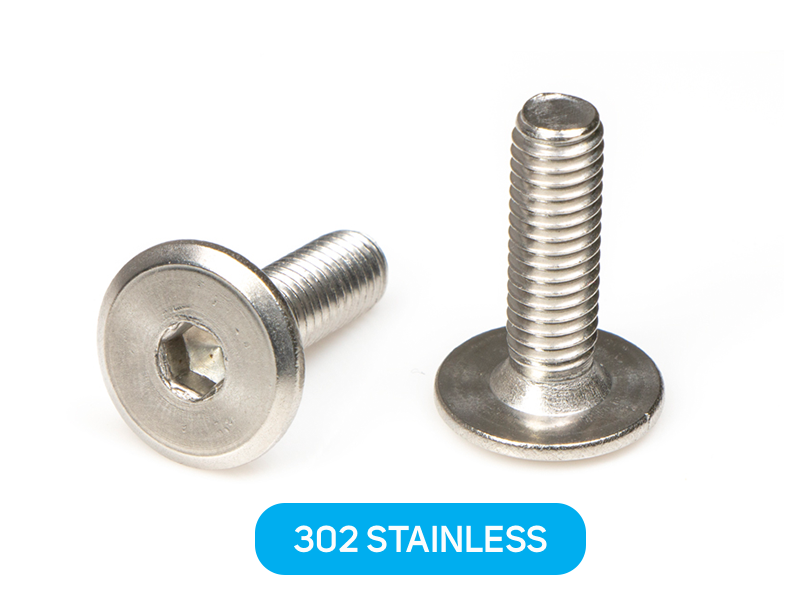

Joint Connector Bolts Stainless Steel JCB 6mm Furniture Bolts
Joint Connector Bolts Stainless Steel JCB 6mm Furniture Bolts
Avaible now in a limited range joint connector bolts (JCB) in stainless steel. JCB bolts have a standard M6 thread for compatible stainless JCB barrel connector nuts or an internal m6 tapped hole. Installed with a 4mm hex (allen) key.
Please be aware our quoted lengths measure from under the head to the end of the thread.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
PHYSICAL CHARACTERISTICS
- Point Type: Machine thread flat point
- Material: Stainless steel 302 grade
- Finish: Plain
- Head Dia: 15.0mm
- Head Height: 2.0-3.0mm approx.
MATERIAL
- 302 stainless steel is a high-carbon, austenitic stainless steel alloy
- Exhibits good ductility and toughness whilst also having great corrosion resistance
- Its corrosion resistance properties makes is suitable for us in the food and beverage industry

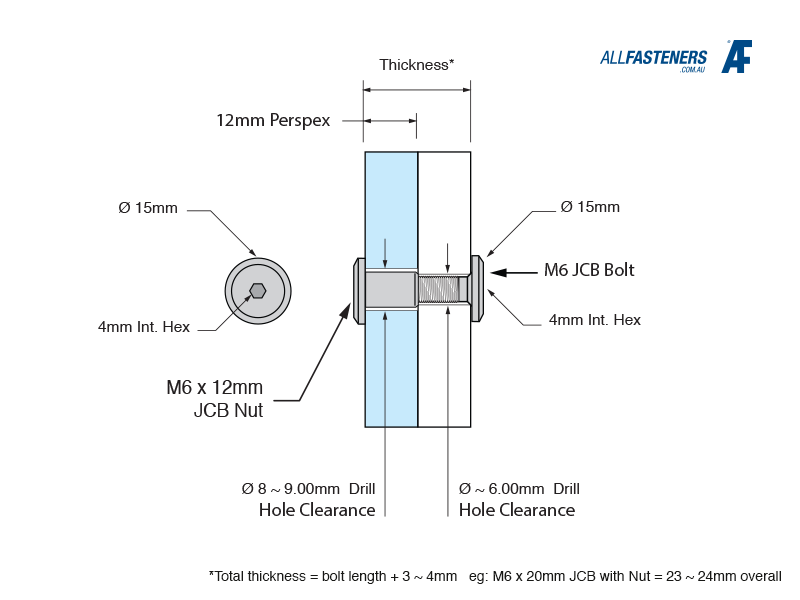

How to use JCB nut with connector bolts.

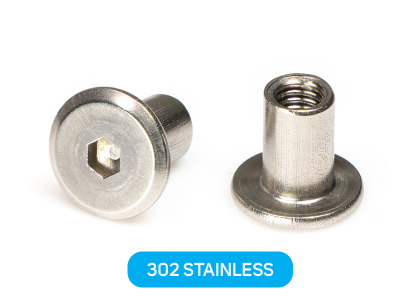

The JCB nut is 12mm measured from under the head to the end of the barrel. The barrel features roughly about 8mm of internal thread, these means it will add approximately 3 to 4mm to your selected bolt length.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Stainless Steel |
| Coating & Plating | Plain / Unplated |
| Driver Type | Hex Bit (Internal Hex) |
| Diameter / Gauge | M6 |
| Thread Type | Metric |
| Use for | Joinery Cabinetry |
Technical Information
| SKU | Dia x Length | Material | Driver Bit |
|---|---|---|---|
| 1761.0060020 | M6 x 20mm | Gr302 | M6 x 20mm |
| 1761.0060025 | M6 x 25mm | Gr302 | M6 x 25mm |
