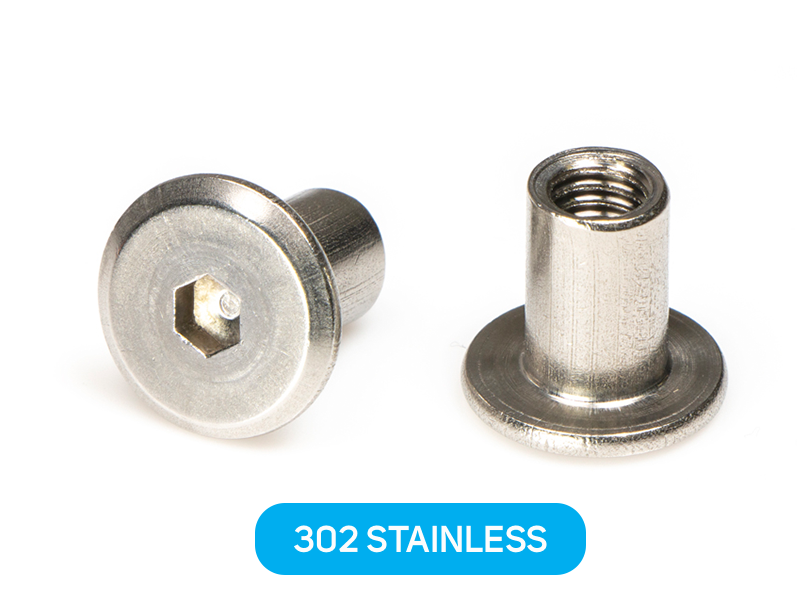

Connector Nut JCB Stainless Steel
Connector Nut JCB Stainless Steel
Connector nuts or sleeve nuts are now available in stainless steel. These nuts have an internal M6 thread compatible with the stainless steel JCB M6 (6mm) furniture bolts. Also known as joint connector bolts.
Installed with a 4mm hex (allen) socket key.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description

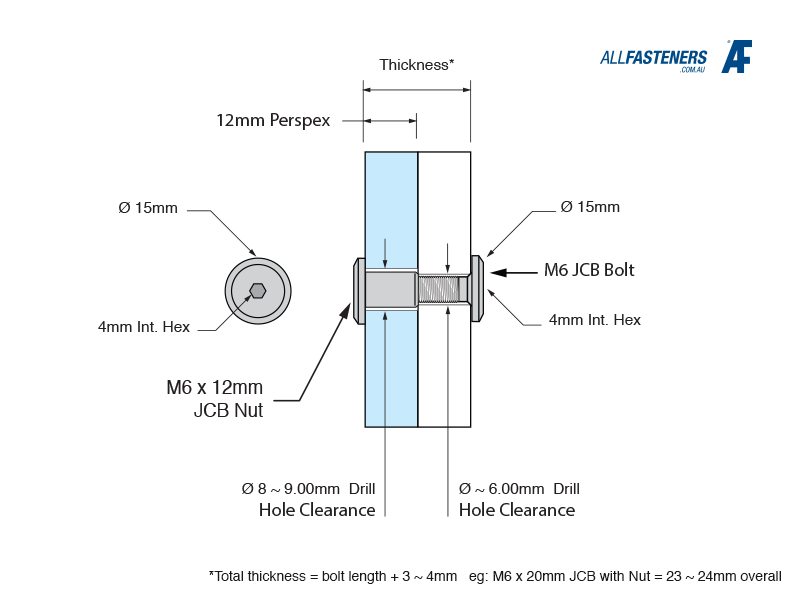

How to use JCB nut with connector bolts.
The JCB nut is 12mm measured from under the head to the end of the barrel. The barrel features roughly about 8mm of internal thread, these means it will add approximately 3 to 4mm to your selected bolt length.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | Stainless Steel |
|---|---|
| Driver Type | Hex Bit (Internal Hex) |
| Nut Type | Barrel Nuts |
Technical Information
| SKU | Item | Finish | Driver Bit | Finish | Description |
|---|---|---|---|---|---|
| 1764.0060012 | M6 x 12mm Nut | Stainless Steel | 4mm | Stainless Steel | M6 x 12mm (flat head 15mm dia.) |
