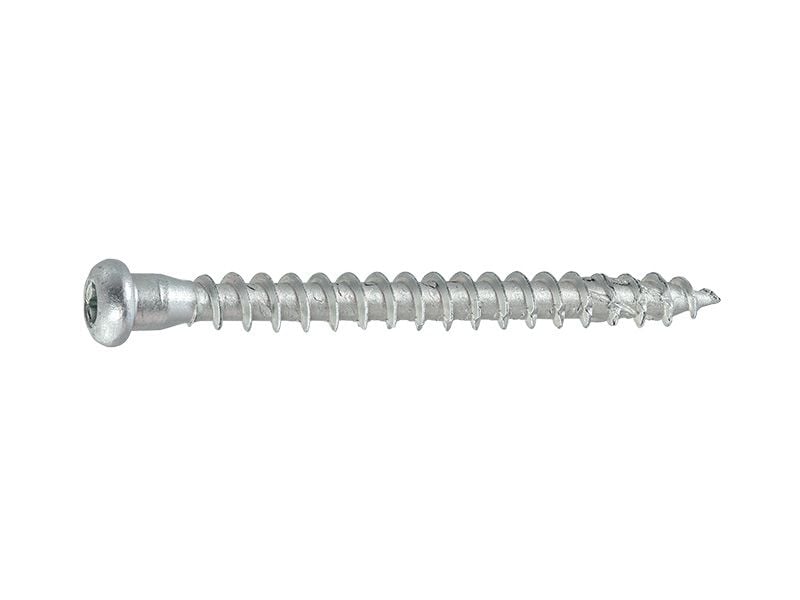

HDC-PCY Timber Construction Screw Round Head for Plates

Construction cylindrical head screws with full thread and TX drive for structural connections and reinforcements of wooden members.

SKU HDC-PCY Timber Construction Screw Round Head for Plates

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
M5 x 30mm HDC-PCY Timber Construction Screw Pan Cylindrical Torx T20 Hd Z/P From $25.88
M5 x 35mm HDC-PCY Timber Construction Screw Pan Cylindrical Torx T20 Hd Z/P From $33.75
M5 x 40mm HDC-PCY Timber Construction Screw Pan Cylindrical Torx T20 Hd Z/P From $39.13
M5 x 50mm HDC-PCY Timber Construction Screw Pan Cylindrical Torx T20 Hd Z/P From $48.25
M5 x 60mm HDC-PCY Timber Construction Screw Pan Cylindrical Torx T20 Hd Z/P From $49.75
M5 x 70mm HDC-PCY Timber Construction Screw Pan Cylindrical Torx T20 Hd Z/P From $58.88

Store Item

SKU:

Description

Round Head with Cylindrical Underhead and TX Drive - Allows safe and secure fastening of perforated and angular metal plates. TX drive guarantees optimum torque transfer.
Underhead Reinforcement - Wider screw diameter under the head improves shear strength of the screw.
High Torque - Allows screws to be installed without pre-drilling, even in hardwood substrates.
Wax Coating - Wax coating applied during the production process significantly reduces the torque.

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

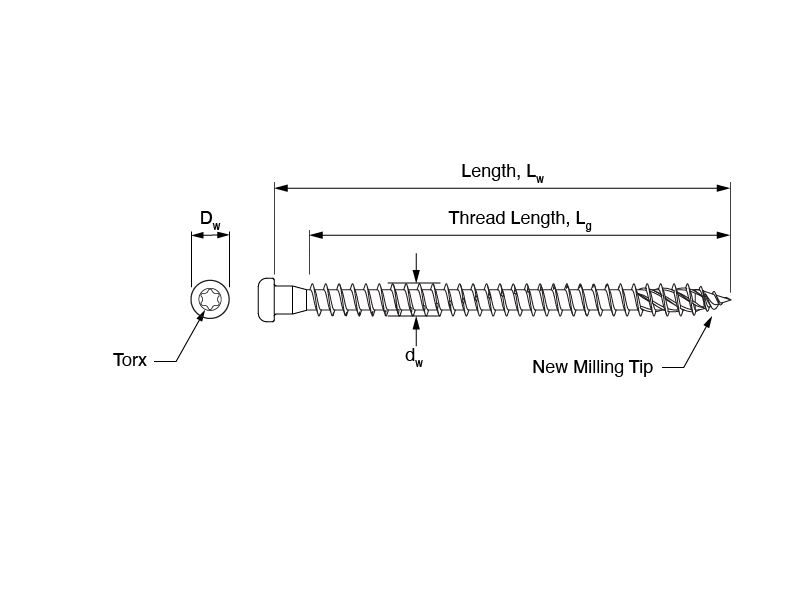

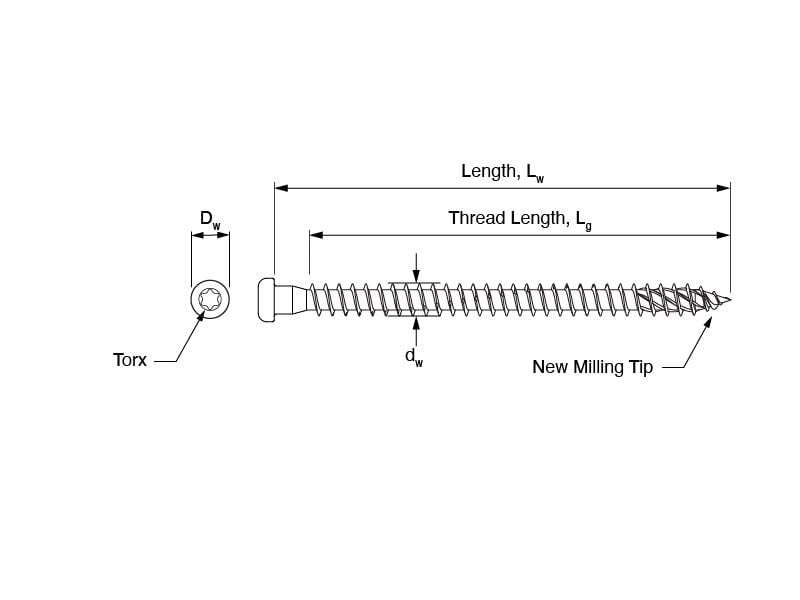

Technical Information

SKU	Description	Coating	Thread Length	Driver Bit
1215.0050030	M5 x 30mm HDC-PCY	Zinc White	22mm	TX20
1215.0050035	M5 x 35mm HDC-PCY	Zinc White	30mm	TX20
1215.0050040	M5 x 40mm HDC-PCY	Zinc White	30mm	TX20
1215.0050050	M5 x 50mm HDC-PCY	Zinc White	40mm	TX20
1215.0050060	M5 x 60mm HDC-PCY	Zinc White	50mm	TX20
1215.0050070	M5 x 70mm HDC-PCY	Zinc White	60mm	TX20
