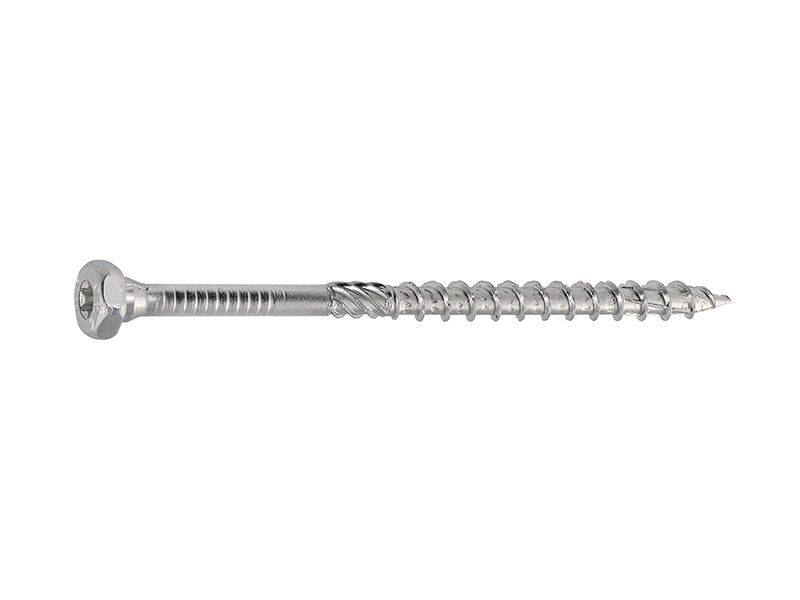

HDC-H Timber Construction Screw Hexagonal Head

Hexagonal head construction screws with TX drive for structural connections of wooden members, including solid, bonded and wood-based panels.

Solid Timbers
Glued Laminated Timbers - CLT, KVH, BSH / GLT
Laminated Veneer Lumber - LVL

SKU 3WKCH-Z

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
M6 x 50mm HDC-H Timber Construction Screw Hex Torx T30 Hd Z/P From $32.80
M6 x 60mm HDC-H Timber Construction Screw Hex Torx T30 Hd Z/P From $37.30
M6 x 70mm HDC-H Timber Construction Screw Hex Torx T30 Hd Z/P From $42.30
M6 x 80mm HDC-H Timber Construction Screw Hex Torx T30 Hd Z/P From $46.15
M6 x 100mm HDC-H Timber Construction Screw Hex Torx T30 Hd Z/P From $58.85
M8 x 40mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $36.60
M8 x 50mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $40.68
M8 x 60mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $45.18
M8 x 70mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $47.45
M8 x 80mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $59.83
M8 x 100mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $66.38
M8 x 120mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $74.30
M8 x 140mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $73.05
M8 x 160mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $88.23
M8 x 180mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $101.05
M8 x 200mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $124.60
M8 x 220mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $138.78
M8 x 240mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $159.48
M8 x 260mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $179.90
M8 x 280mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $204.73
M8 x 300mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $221.78
M10 x 60mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $60.98
M10 x 70mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $64.05
M10 x 80mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $67.30
M10 x 100mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $74.70
M10 x 120mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $41.80
M10 x 140mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $49.33
M10 x 160mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $59.55
M10 x 180mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $68.21
M10 x 200mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $84.10
M10 x 220mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $93.69
M10 x 240mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $107.64
M10 x 260mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $121.44
M10 x 280mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $138.18
M10 x 300mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $149.69
M10 x 320mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $160.58
M10 x 340mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $171.39
M10 x 360mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $185.01
M10 x 380mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $199.59
M10 x 400mm HDC-H Timber Construction Screw Hex Torx T40 Hd Z/P From $219.51

Build A Quote?

Store Item

SKU:

Description

FEATURES

Hexagonal Head - Hex head improves pull-through resistance of joint and allows steel-wood applications
Underhead Reinforcement - Wider screw diameter under the head improves shear strength of the screw.
Shank Ribs - Shank ribs reduces installation torque by reaming the hole.
High Torque - Allows screws to be installed without pre-drilling, even in hardwood substrates.
Wax Coating - Wax coating applied during the production process significantly reduces the torque.

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Coating & Plating	Zinc Clear
Material Grade	Carbon Steel
Head Type	Hexagonal
Driver Type	Torx Bit
Diameter / Gauge	M6, M8
Thread Type	Dual Thread
For use with	CLT (Cross Laminted Timber), LVL (Layerd Veneer Lumber), Timber, GLT (Glulam)

Technical Information

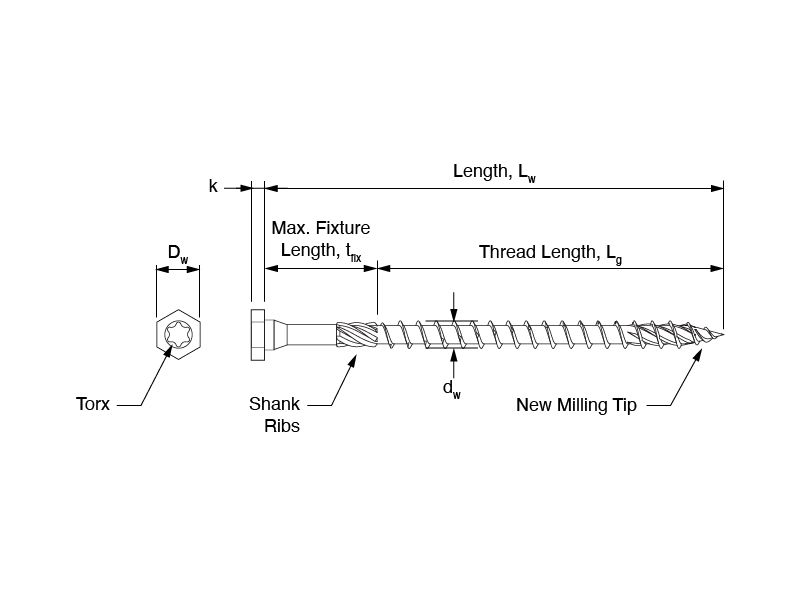

SKU	Description	Coating	Thread Length	Max. Fixture Length	Driver Bit
1210.0060050	M6 x 50mm HDC-H	Zinc White	30mm	20mm	TX30
1210.0060060	M6 x 60mm HDC-H	Zinc White	30mm	30mm	TX30
1210.0060070	M6 x 70mm HDC-H	Zinc White	40mm	30mm	TX30
1210.0060080	M6 x 80mm HDC-H	Zinc White	50mm	30mm	TX30
1210.0060100	M6 x 100mm HDC-H	Zinc White	60mm	40mm	TX30
1210.0080040	M8 x 40mm HDC-H	Zinc White	35mm	5mm	TX40
1210.0080050	M8 x 50mm HDC-H	Zinc White	45mm	5mm	TX40
1210.0080060	M8 x 60mm HDC-H	Zinc White	50mm	10mm	TX40
1210.0080070	M8 x 70mm HDC-H	Zinc White	50mm	20mm	TX40
1210.0080080	M8 x 80mm HDC-H	Zinc White	50mm	30mm	TX40
1210.0080100	M8 x 100mm HDC-H	Zinc White	50mm	50mm	TX40
1210.0080120	M8 x 120mm HDC-H	Zinc White	80mm	40mm	TX40
1210.0080140	M8 x 140mm HDC-H	Zinc White	100mm	40mm	TX40
1210.0080160	M8 x 160mm HDC-H	Zinc White	100mm	60mm	TX40
1210.0080180	M8 x 180mm HDC-H	Zinc White	100mm	80mm	TX40
1210.0080200	M8 x 200mm HDC-H	Zinc White	100mm	100mm	TX40
1210.0080220	M8 x 220mm HDC-H	Zinc White	100mm	120mm	TX40
1210.0080240	M8 x 240mm HDC-H	Zinc White	100mm	140mm	TX40
1210.0080260	M8 x 260mm HDC-H	Zinc White	100mm	160mm	TX40
1210.0080280	M8 x 280mm HDC-H	Zinc White	100mm	180mm	TX40
1210.0080300	M8 x 300mm HDC-H	Zinc White	100mm	200mm	TX40
1210.0100060	M10 x 60mm HDC-H	Zinc White	50mm	10mm	TX40
1210.0100070	M10 x 70mm HDC-H	Zinc White	50mm	20mm	TX40
1210.0100080	M10 x 80mm HDC-H	Zinc White	50mm	30mm	TX40
1210.0100100	M10 x 100mm HDC-H	Zinc White	50mm	50mm	TX40
1210.0100120	M10 x 120mm HDC-H	Zinc White	80mm	40mm	TX40
1210.0100140	M10 x 140mm HDC-H	Zinc White	80mm	60mm	TX40
1210.0100160	M10 x 160mm HDC-H	Zinc White	100mm	60mm	TX40
1210.0100180	M10 x 180mm HDC-H	Zinc White	100mm	80mm	TX40
1210.0100200	M10 x 200mm HDC-H	Zinc White	100mm	100mm	TX40
1210.0100220	M10 x 220mm HDC-H	Zinc White	100mm	120mm	TX40
1210.0100240	M10 x 240mm HDC-H	Zinc White	100mm	140mm	TX40
1210.0100260	M10 x 260mm HDC-H	Zinc White	100mm	160mm	TX40
1210.0100280	M10 x 280mm HDC-H	Zinc White	100mm	180mm	TX40
1210.0100300	M10 x 300mm HDC-H	Zinc White	100mm	200mm	TX40
1210.0100320	M10 x 320mm HDC-H	Zinc White	100mm	220mm	TX40
1210.0100340	M10 x 340mm HDC-H	Zinc White	100mm	240mm	TX40
1210.0100360	M10 x 360mm HDC-H	Zinc White	100mm	260mm	TX40
1210.0100380	M10 x 380mm HDC-H	Zinc White	100mm	280mm	TX40
1210.0100400	M10 x 400mm HDC-H	Zinc White	100mm	300mm	TX40
