Annular gap filling solution in construction anchoring with stainless steel.

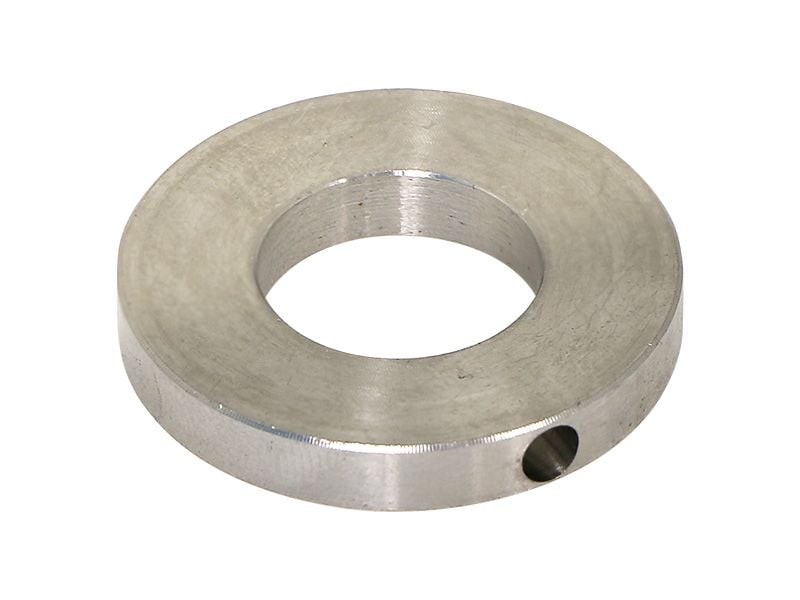

The stainless steel filling washer is placed between the fixture and a stainless flat washer before the nut is secured.

The washer enables filling of annular gap by allowing chemical adhesive to be injected filling the void around the anchor within the fixture itself. It does NOT allow injection of chemical adhesive into the drilled hole.

Using a filling washer ensures even shear load distribution on all anchors ie: in a base plate application with multiple anchors.

When selecting an anchor observe the fixture thickness will reduce up to 6mm.

Each box of filling washers is supplied with mixer tips that will attach to the end of the chemical mixer nozzle.
