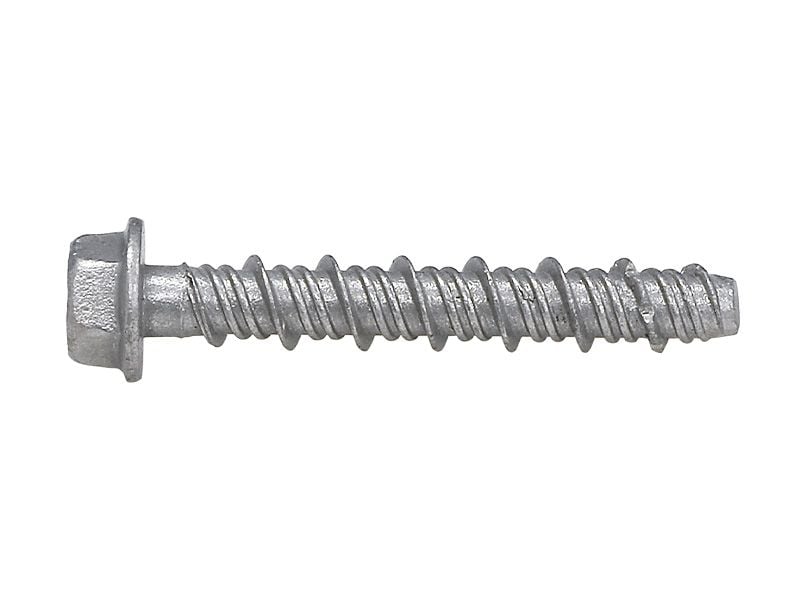

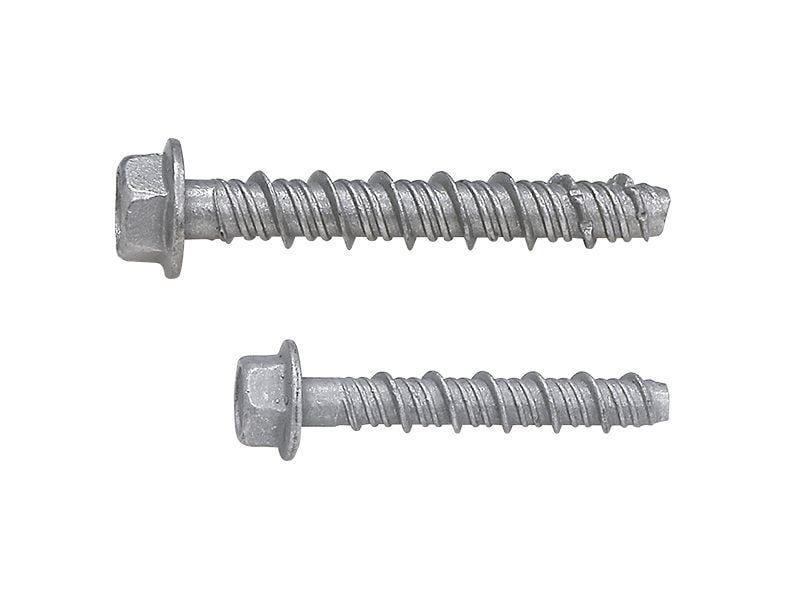

SAH2-G Concrete Screw-Anchor Hex Flange Galvanised
SAH2-G Concrete Screw-Anchor Hex Flange Galvanised
- The mark 2 SAH2-G anchors special thread cuts an internal thread into the concrete providing a mechnical interlock with the material
- ETA assesement is compliant to AS 5216
- Approved cracked and un-cracked concrete
- Rated for C1 and C2 seismic action
- R120 Fire Rating
- Hex flange head
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Coating & Plating | Galvanised |
| Head Type | Hex Flange |
| Driver Type | Hex Sockets |
| For use with | Concrete (cracked), Concrete (un-cracked), Masonry Solid Block, Masonry Hollow Brick |
| Setting Conditions | Hammer Drilling, Close to Edge, Overhead, Removable |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Cyclic Loads, Seismic C1 & C2 |
| Use for | Critical Anchoring, Facade & Cladding, Handrails & Balustrade, HVAC, Outdoor Structure, Structural Fixing |
Technical Information
| SKU | Dia. x Length | Rec Max Fix | Socket Size | Seismic C1 / C2 |
|---|---|---|---|---|
| 1046.0060045 | 6 x 45mm SAH2-G | 5mm | 10mm | ✓ / - |
| 1046.0080065 | 8 x 65mm SAH2-G | 5mm | 13mm | ✓ / ✓ |
