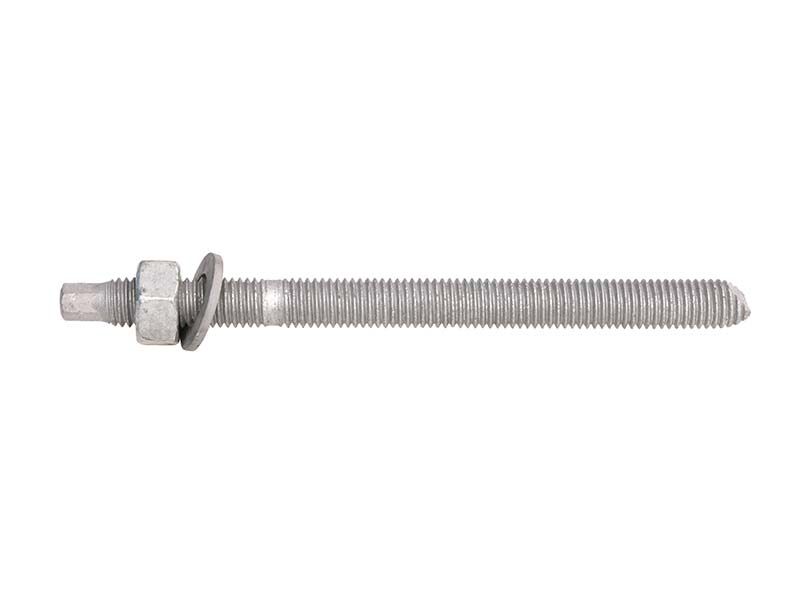

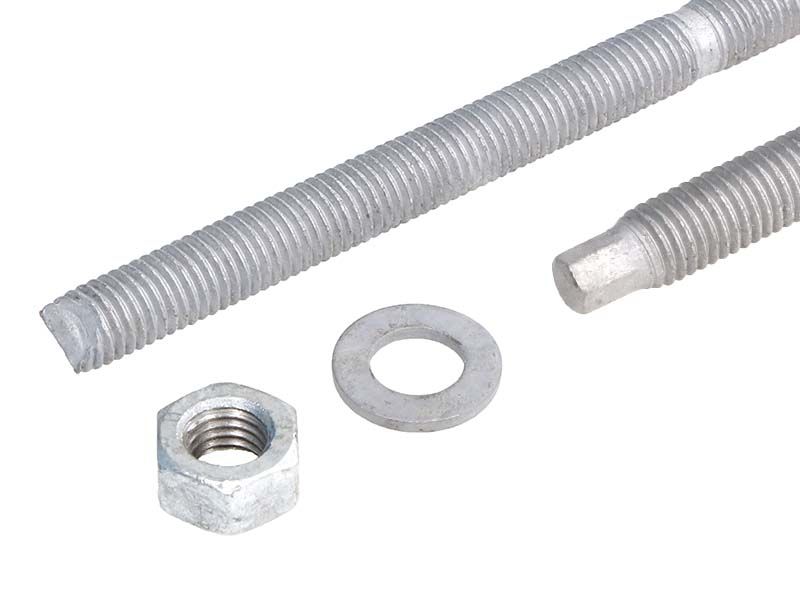

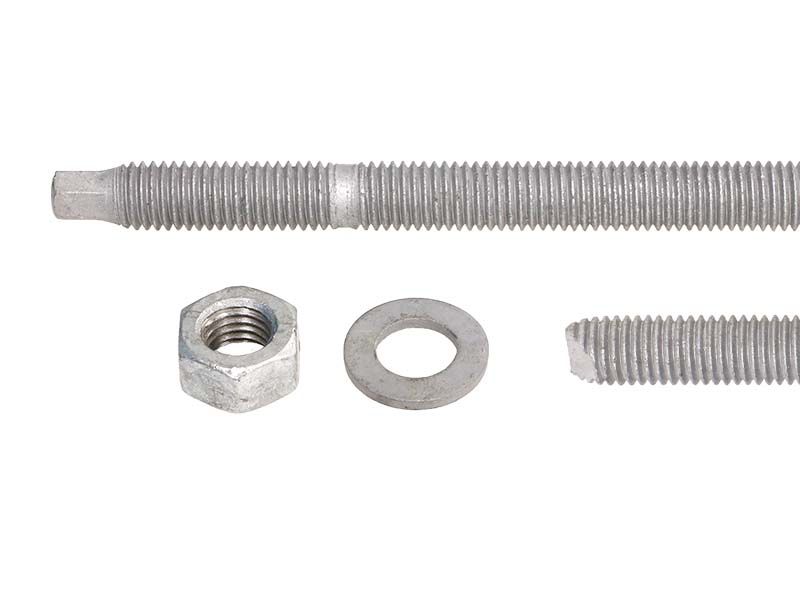

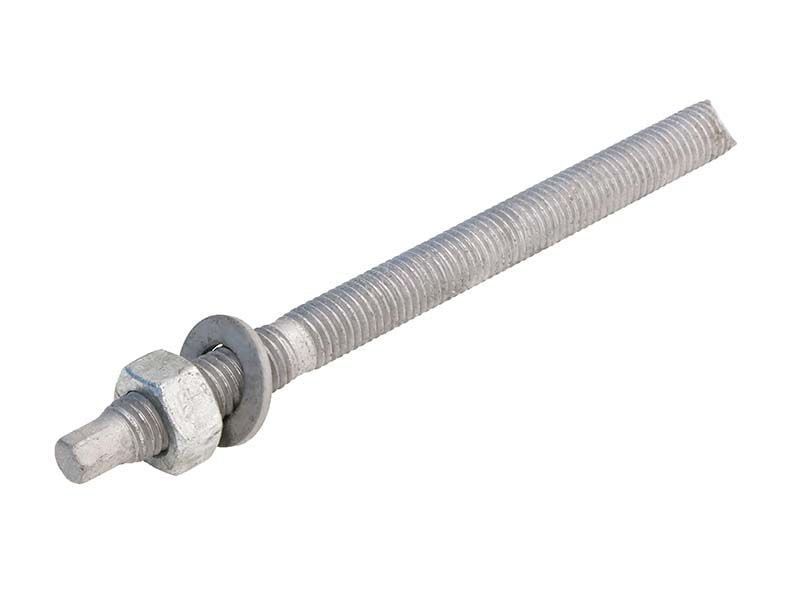

Chisel Point Chemical Capsule Studs CL5.8 HDG
SCM-G Chem Stud HDG
Chisel point chem anchor studs for installation with chemical capsule adhesive. The chisel point point breaks the glass capsule adhesive (within the embedment) in one clean and simple action, activating the chemical. They have been specially designed as a 'spin-in' stud with the hex head drive for ease of installation.
- Class 5.8 hot dipped galvanized carbon steel
- Nut-setter to suit included in box
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Coating & Plating | Hot Dipped Galvanised (HDG) |
| For use with | Concrete (cracked), Concrete (un-cracked), Concrete Block Hollow, Masonry Solid Block, Masonry Hollow Brick |
| Setting Conditions | Diamond Core Drill, Dustless Drilling, Hammer Drilling |
Technical Information
| SKU | Dia. x Length | Fix. Max | Embed Min. | Fixture Max. | Description |
|---|---|---|---|---|---|
| 1054.0080110 | M8 x 110mm | 17mm | 80mm | 17mm | M8 x 110mm (nut/washer) |
| 1054.0100130 | M10 x 130mm | 25mm | 90mm | 25mm | M10 x 130mm (nut/washer) |
| 1054.0120160 | M12 x 160mm | 33mm | 110mm | 33mm | M12 x 160mm (nut/washer) |
| 1054.0160190 | M16 x 190mm | 44mm | 125mm | 44mm | M16 x 190mm (nut/washer) |
| 1054.0200260 | M20 x 260mm | 64mm | 170mm | 64mm | M20 x 260mm (nut/washer) |
| 1054.0240300 | M24 x 300mm | 56mm | 210mm | 56mm | M24 x 300mm (nut/washer) |
