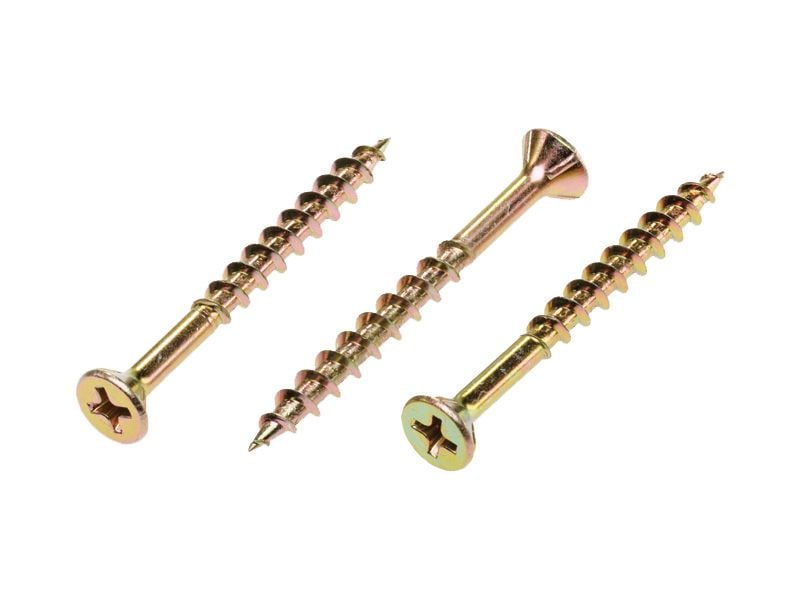

Chipboard Screws Zinc
Chipboard Screws Zinc
Fix chipboard sheets and other soft material to timber with a flush finish. Featured countersunk head with ribs on underside. The ribbed head assists with removal of chipboard particles to sink the head flush.
- Phillips drive / countersunk
- Coarse rolled thread with smooth shank
- Zinc (passivated) for internal application

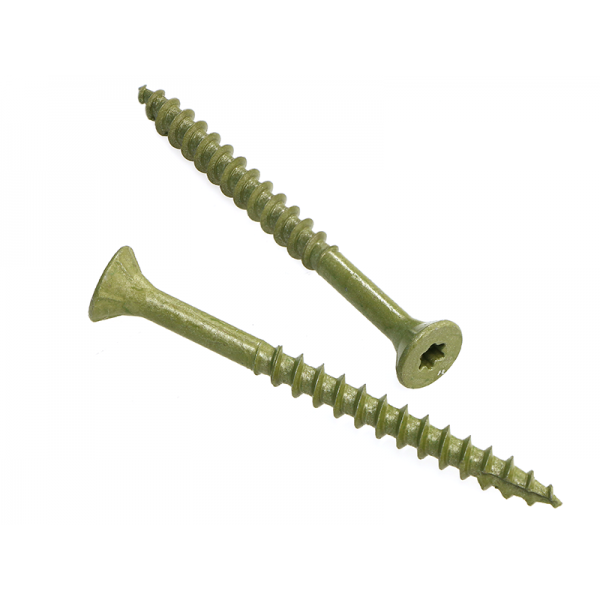

For external installation we recommend T17 Construction Screws – these can be used also in treated pine.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: Fix chipboard sheets and other soft material
- Driver Type: Philips P2
- Installation Speed: 2300-2500 RPM Max Drill Speed

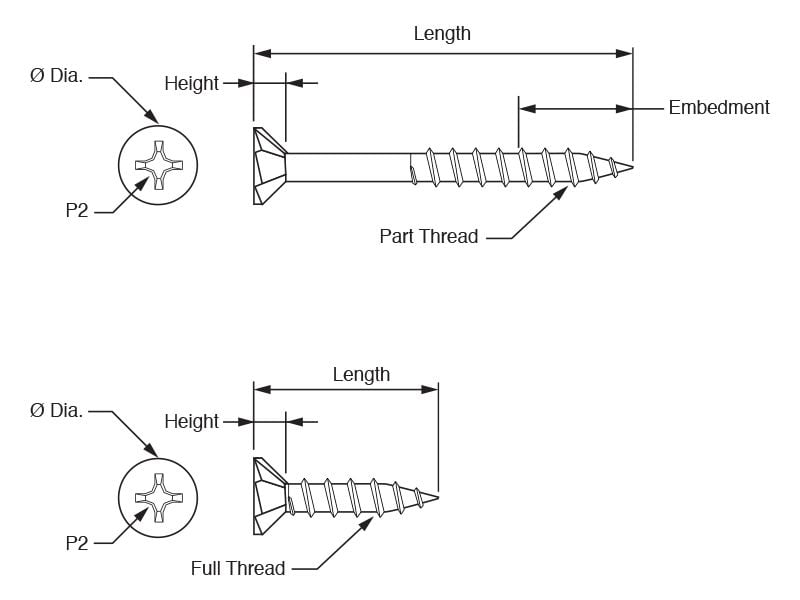

PHYSICAL CHARACTERISTICS
- Head Type: Countersunk
- Point Type: Needle
- Material: Carbon steel
- Finish: Zinc - Yellow
- Head Dia: 8g (7.8mm), 10g (8.9mm)
- Head Height: 8g (3.8mm), 10g (4mm)
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Yellow |
| Material Grade | Carbon Steel |
| Head Type | Countersunk |
| Driver Type | Philips Bit |
| Diameter / Gauge | 8g, 10g |
| Point Type | Needle Point |
| For use with | MDF, Particle Board, Chipboard |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Embed min | Gauge x Length |
|---|---|---|---|---|---|
| 1094.0080016 | 8-10 x 16mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 16mm |
| 1094.0080020 | 8-10 x 20mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 20mm |
| 1094.0080022 | 8-10 x 22mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 22mm |
| 1094.0080025 | 8-10 x 25mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 25mm |
| 1094.0080028 | 8-10 x 28mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 28mm |
| 1094.0080030 | 8-10 x 30mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 30mm |
| 1094.0080032 | 8-10 x 32mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 32mm |
| 1094.0080035 | 8-10 x 35mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 35mm |
| 1094.0080040 | 8-10 x 40mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 40mm |
| 1094.0080045 | 8-10 x 45mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 45mm |
| 1094.0080050 | 8-10 x 50mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 50mm |
| 1094.0080057 | 8-10 x 57mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 57mm |
| 1094.0080065 | 8-10 x 65mm | Zinc Yellow | Ph.2 | 18mm | 8-10 x 65mm |
| 1094.0100065 | 10-10 x 65mm | Zinc Yellow | Ph.2 | 25mm | 10-10 x 65mm |
| 1094.0100075 | 10-10 x 75mm | Zinc Yellow | Ph.2 | 25mm | 10-10 x 75mm |
| 1094.0100100 | 10-10 x 100mm | Zinc Yellow | Ph.2 | 25mm | 10-10 x 100mm |
