The better alternative to galvanised chipboard screws when building with treated pine timber.

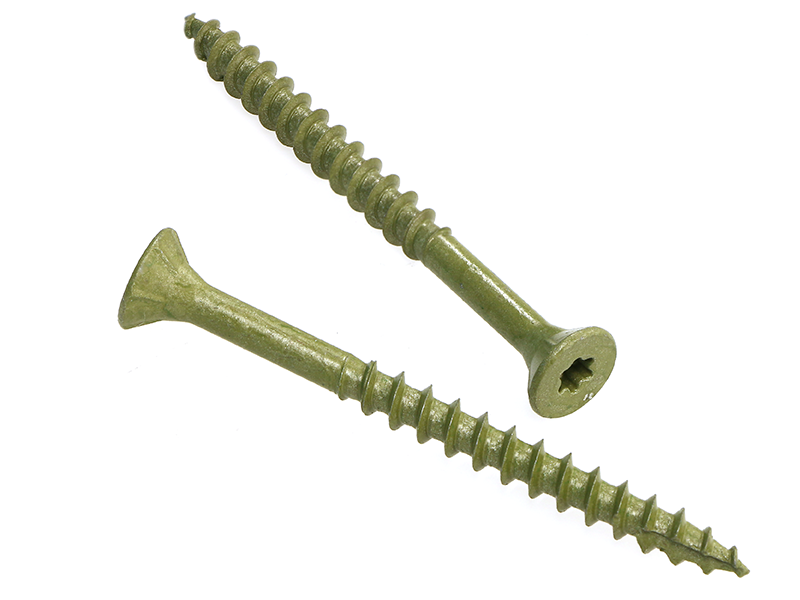

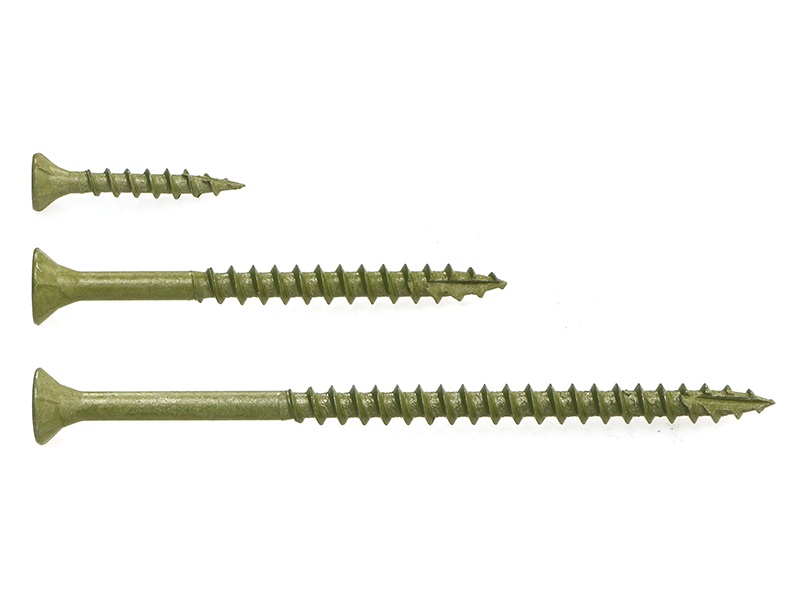

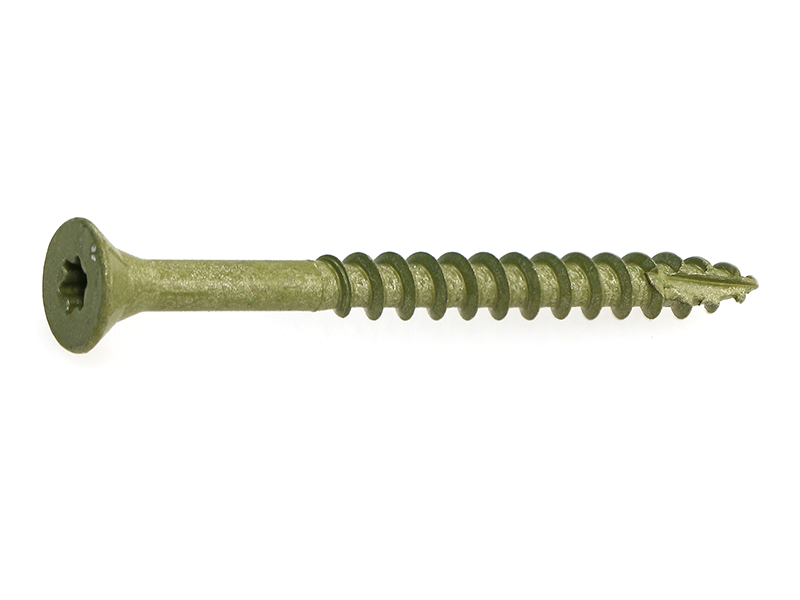

T17C-C Treated Pine Screws Torx Drive
We have come along way from the humble galvanised chipboard screws for treated pine construction. The type 17 (T17) screws have the ideal milled point and cutting threads needed to secure pine timbers with ease – no pre drilling required.
Experience a reliable self drilling screws for hardwoods and treated pine timber construction. Now with added corrosion protection from the chemicals found in treated pine – extend the life of your structure.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Timber screws for treated pine.
The only construction screw with a 6-lobe torx drive head for secure and reliable driving of screws. The type 17 serrated point eliminates the need for pilot holes, suitable to self drill most hardwoods and treated pine timbers.
Key Features:
- Ruspert protective coating extends the life of screws used in treated pine structures
- Torx drive has more contact with the driver bit and makes for efficient fixing with less wobble and cam out
- Countersunk ribbed head will embed every-time without the need to pre-countersink
- T25 torx bit supplied with every box to get you going
INSTALLATION
- Drill Capacity: For use in many types of timber including treated pine.
- Driver Type: T25 Torx Drive
- Installation Speed: 1500 RPM Max Drill Speed
PHYSICAL CHARACTERISTICS
- Head Type: Countersunk ribbed
- Point Type: Type 17 milled point
- Material: Carbon Steel
- Finish: Ruspert
- Head Dia: 8g (8.3mm), 10g (9.3mm)
- Head Height: 8g, 10g (6mm)
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Ruspert |
| Material Grade | Carbon Steel |
| Head Type | Countersunk Ribbed |
| Driver Type | Torx Bit |
| Diameter / Gauge | 8g, 10g, 12g |
| Point Type | Type 17 (T17) Miled Point |
| Thread Type | Coarse |
| For use with | Hardwood, Timber, Treated Pine |
| Use for | Decking, Framing & Truss, Outdoor Structure |

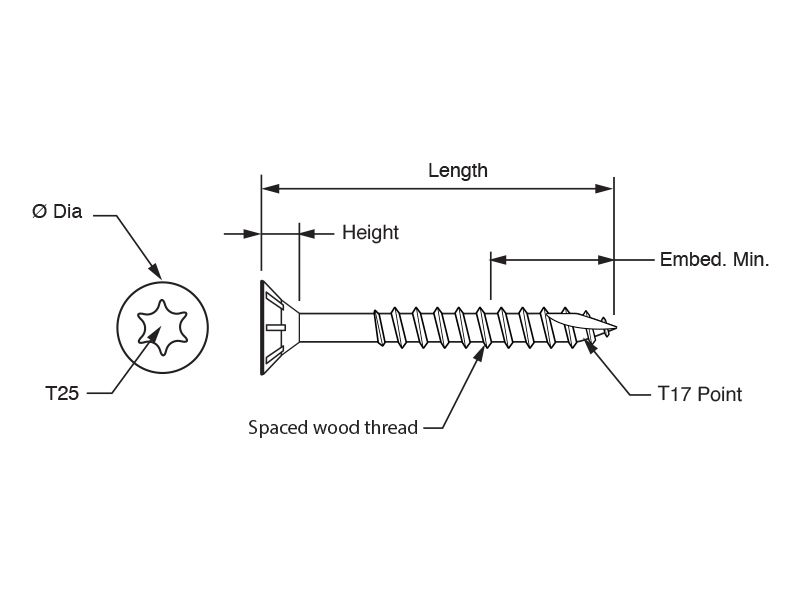

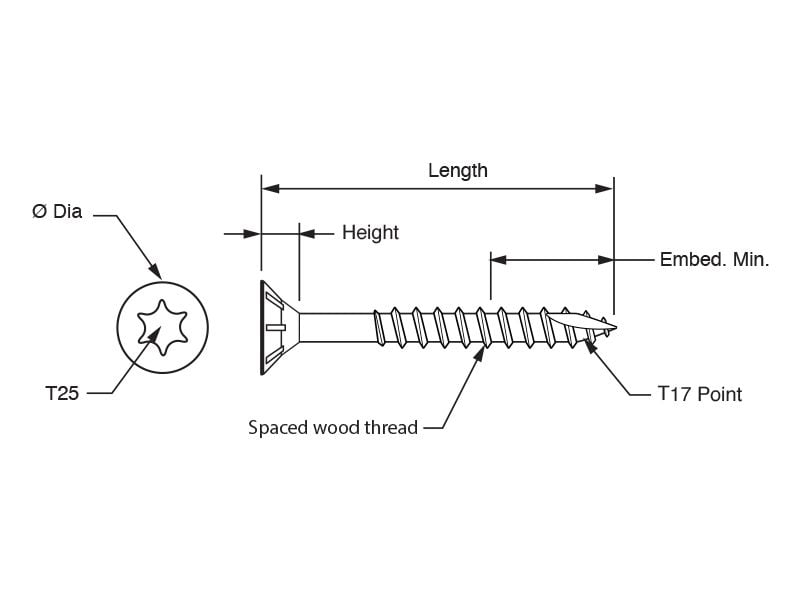

Technical Information
| SKU | Item | Driver | Min. Embedment | Item |
|---|---|---|---|---|
| 1200.0080025 | 8-9 x 25mm | T25 | 20mm | 8-9 x 25mm T17C-C |
| 1200.0080030 | 8-9 x 30mm | T25 | 20mm | 8-9 x 30mm T17C-C |
| 1200.0080035 | 8-9 x 35mm | T25 | 20mm | 8-9 x 35mm T17C-C |
| 1200.0080040 | 8-9 x 40mm | T25 | 25mm | 8-9 x 40mm T17C-C |
| 1200.0080045 | 8-9 x 45mm | T25 | 25mm | 8-9 x 45mm T17C-C |
| 1200.0080050 | 8-9 x 50mm | T25 | 25mm | 8-9 x 50mm T17C-C |
| 1200.0080057 | 8-9 x 57mm | T25 | 25mm | 8-9 x 57mm T17C-C |
| 1200.0080065 | 8-9 x 65mm | T25 | 35mm | 8-9 x 65mm T17C-C |
| 1200.0100040 | 10-9 x 40mm | T25 | 25mm | 10-9 x 40mm T17C-C |
| 1200.0100050 | 10-9 x 50mm | T25 | 25mm | 10-9 x 50mm T17C-C |
| 1200.0100065 | 10-9 x 65mm | T25 | 35mm | 10-9 x 65mm T17C-C |
| 1200.0100075 | 10-9 x 75mm | T25 | 35mm | 10-9 x 75mm T17C-C |
| 1200.0100100 | 10-9 x 100mm | T25 | 35mm | 10-9 x 100mm T17C-C |
| 1200.0100125 | 10-9 x 125mm | T25 | 50mm | 10-9 x 125mm T17C-C |
| 1200.0100150 | 10-9 x 150mm | T25 | 50mm | 10-9 x 150mm T17C-C |
| 1200.0120065 | 12-8 x 65mm | T25 | 35mm | 12-8 x 65mm T17C-C |
| 1200.0120075 | 12-8 x 75mm | T25 | 35mm | 12-8 x 75mm T17C-C |
| 1200.0120100 | 12-8 x 100mm | T25 | 35mm | 12-8 x 100mm T17C-C |
