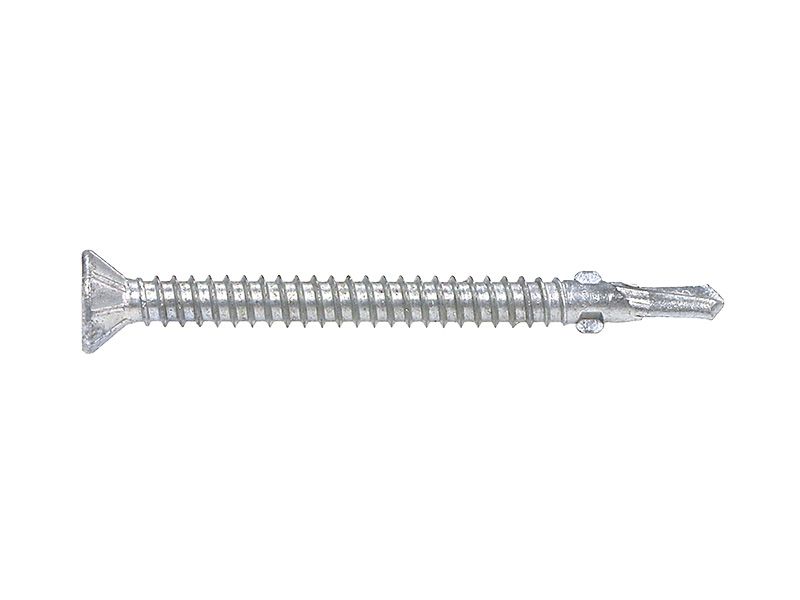

Wing Tip SD Screws Torx Drv Bimetal 302 Stainless
Wing Tip SD Screws Torx Drv Bimetal 302 Stainless
Ideal timber-to-metal self drilling screw.
Bimetal screws have a high-corrosive resistance and are preferred material type in coastal and other corrosive environments. These winged tip self-drilling screws are capable of fixing timber to steel battens in decking and cladding applications.
Made from 302 series stainless steel with a heat treated hardened drill tip for the purpose of drilling into steel – up to 6.0mm thick.
Our torx head bimetal screws have a single layer zinc plated surface coating therefore will not appear to have a typical stainless steel look. This is simply part of our manufacturing process ensuring a high level of corrosion protection, whilst ensuring drilling performance is maintained.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
More...

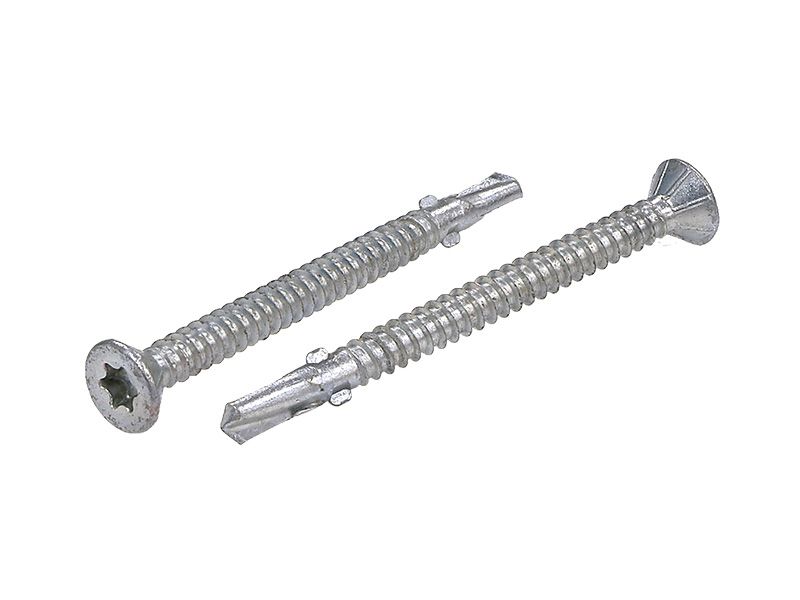

Other features include a winged tip, this clears a hole in the timber surface to enable the countersunk head to sit neatly flush. The torx drive allows maximum pressure to be applied during installation without cam out or damage to the screw head and driver bit.
A pilot hole can be used in the surface to help center your screws however is not necessary. For best practice allow the full tip and a few threads to protrude through the steel – this will increase the life of your structure.
INSTALLATION
- Drill Capacity: 1–6.0mm of Steel
- Driver Type: T25 (10g), T30 (12g) Torx Drive
- Installation Speed: 1800 RPM Max Drill Speed

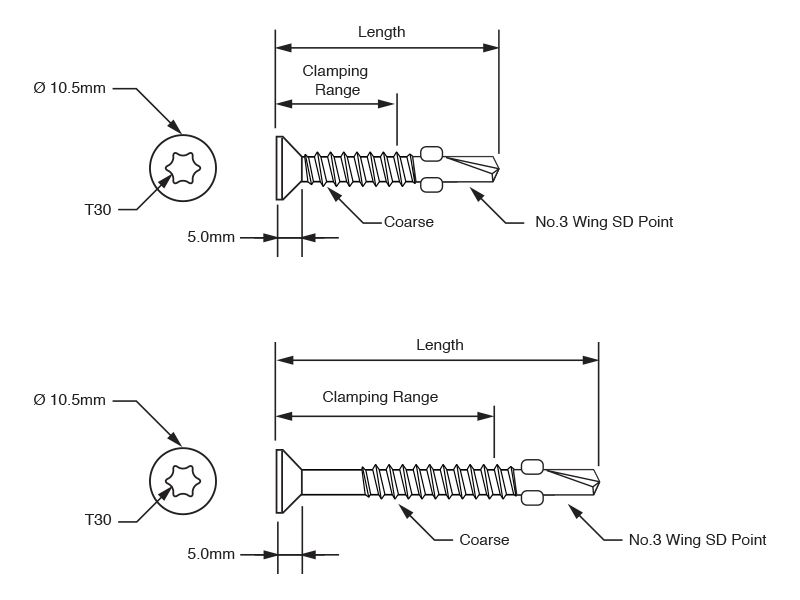

PHYSICAL CHARACTERISTICS
- Head Type: Torx Drive Countersunk
- Point Type: No3. Self Drilling Point Winged
- Material: Bimetal (stainless steel 302 grade, heat treated alloy steel tip)
- Finish: Zinc Plated
- Head Dia: 9.9mm (10g), 10.5mm (12g)
- Head Height: 3.3mm (10g), 5.0mm (12g)
CORROSION RESISTANCE
Austenitic stainless steel 300 grade with Zinc Plated coating. Series 300 stainless steel provides adequate corrosive resistance, whilst the zinc plated coating ensures an aesthetic consistent surface appearance during storage, transportation and installation.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Clear |
| Material Grade | Bimetal Stainless Steel |
| Head Type | Countersunk |
| Driver Type | Torx Bit |
| Diameter / Gauge | 10g, 12g |
| Point Type | Wing Drill Point No.3 |
| Thread Type | Coarse |
| For use with | Aluminium, Sheet Metal, Steel, Timber, Treated Pine |
| Application | Timber-to-Steel Self Drilling |
| Use for | Decking, Facade & Cladding, Marine & Pool Areas, Outdoor Structure |
Technical Information
| SKU | Item | Material | Driver | Fix. Range | Item |
|---|---|---|---|---|---|
| 1222.0100038 | 10-16 x 38mm | Bimetal 302 | T25 | 8.5 / 20mm | 10-16 x 38mm Gr302 |
| 1222.0100050 | 10-16 x 50mm | Bimetal 302 | T25 | 8.5 / 32mm | 10-16 x 50mm Gr302 |
