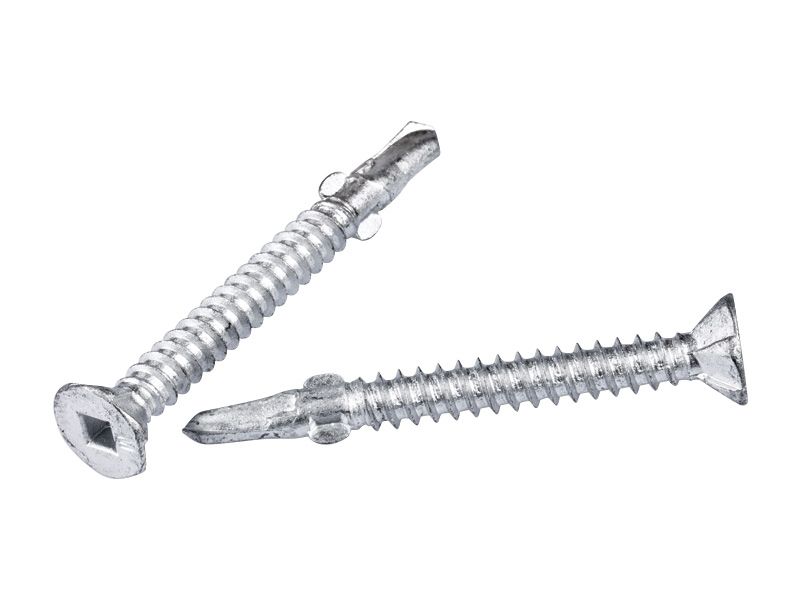

Wing Tip SD Screw Square Drv Rib Hd Class 3
Wing Tip SD Screw Square Drv Rib Hd Class 3
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 1-4mm
- Driver Type: Square Q2
- Installation Speed: 2300-2500 RPM Max Drill Speed

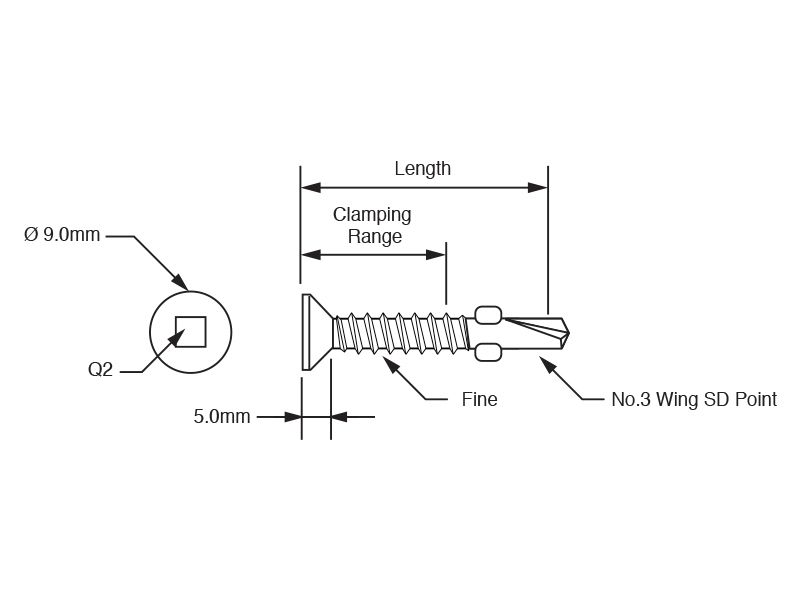

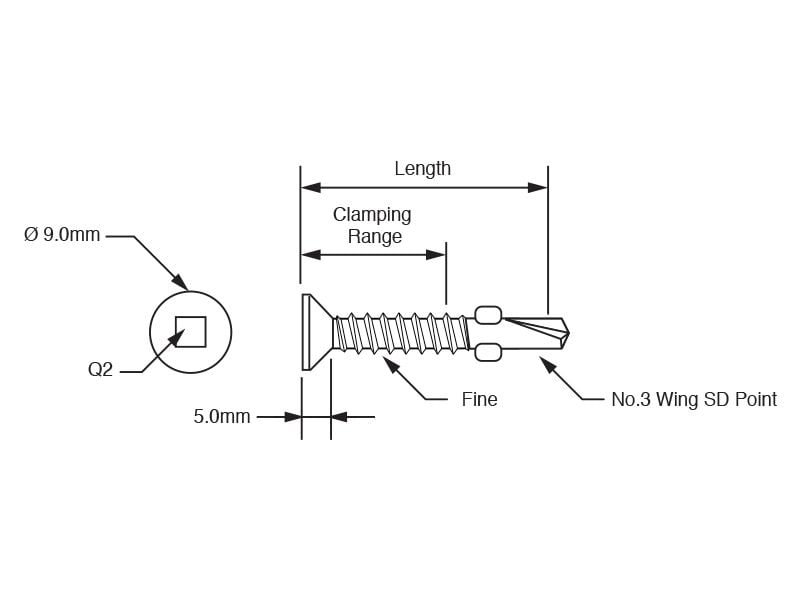

PHYSICAL CHARACTERISTICS
- Head Type: Ribbed Countersunk Head
- Point Type: Winged Self Drilling point
- Material: Carbon Steel
- Finish: Class 3 Mechanical Galvanised
- Head Dia: 9mm
- Head Height: 5mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Class 3 (Mech. Gal) |
| Material Grade | Carbon Steel |
| Head Type | Countersunk Ribbed |
| Driver Type | Square Bit |
| Diameter / Gauge | 10g |
| Point Type | Wing Drill Point No.3 |
| Thread Type | Coarse |
| For use with | Aluminium, Steel, Timber, Treated Pine |
| Application | Timber-to-Steel Self Drilling |
| Use for | Decking, Facade & Cladding, Outdoor Structure |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Thread Type | Gauge x Length |
|---|---|---|---|---|---|
| 1221.0100040 | 10-16 x 40mm | Class 3 | SQ2 | Coarse | 10-16 x 40mm |
| 1221.0100045 | 10-16 x 45mm | Class 3 | SQ2 | Coarse | 10-16 x 45mm |
