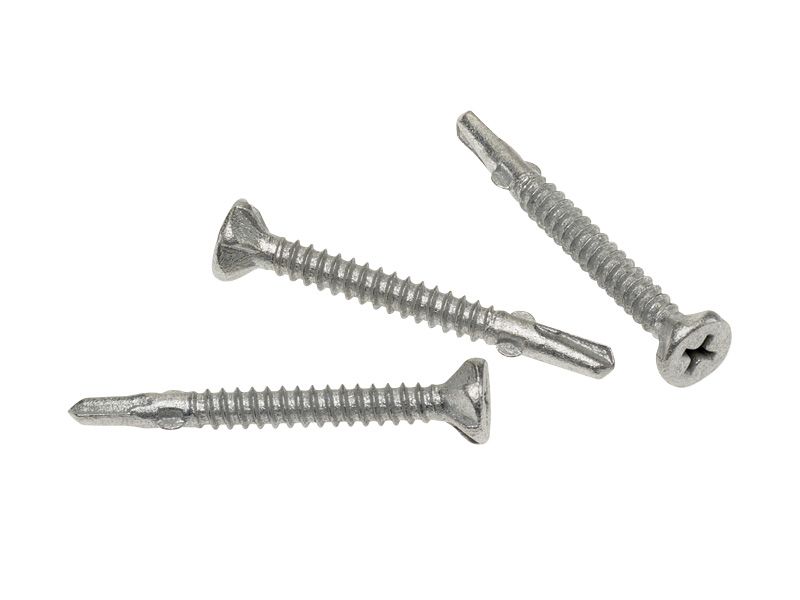

Wing Tip Self Drilling Screw Csk Rib Hd Class 3
Wing Tip Self Drilling Screw Csk Rib Hd Class 3
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 8g (0.75-2.5mm of steel), 10g (0.75-3.5mm of steel)
- Driver Type: Philips P2
- Installation Speed: 2300-2500 RPM Max Drill Speed

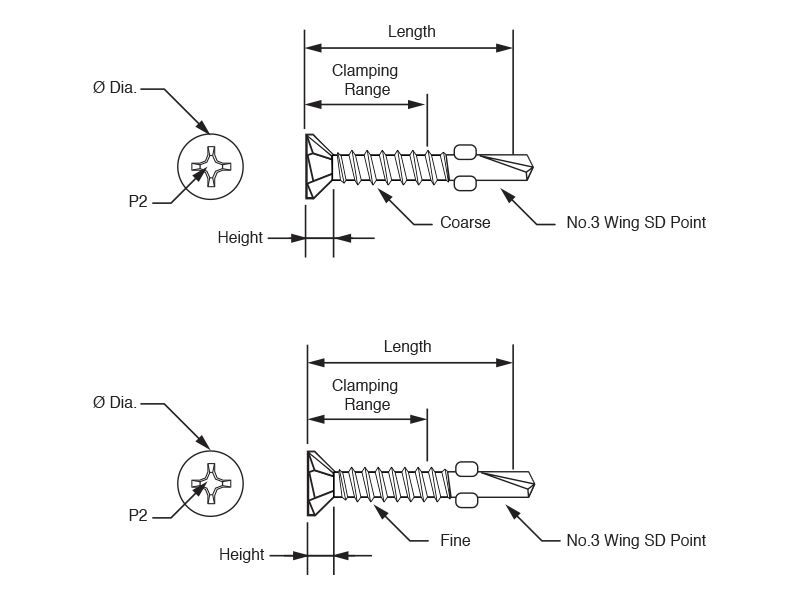

PHYSICAL CHARACTERISTICS
- Head Type: Countersunk Ribbed
- Point Type: Self Drilling #3 Point Winged
- Material: Carbon Steel
- Finish: Class 3 Mechanical Galvanised
- Head Dia: 8g (8mm), 10g (9mm)
- Head Height: 8g (3.5mm), 10g (4mm)
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Class 3 (Mech. Gal) |
| Material Grade | Carbon Steel |
| Head Type | Countersunk Ribbed |
| Driver Type | Philips Bit |
| Diameter / Gauge | 8g, 10g |
| Point Type | Wing Drill Point No.3 |
| Thread Type | Fine |
| For use with | Aluminium, Sheet Metal, Steel, Timber, Treated Pine |
| Application | Timber-to-Steel Self Drilling |
| Use for | Decking, Facade & Cladding, Outdoor Structure |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Thread Type | Gauge x Length |
|---|---|---|---|---|---|
| 1219.0080032 | 8-18 x 32mm | Class 3 | Ph2 | Fine | 8-18 x 32mm |
| 1219.0100035 | 10-16 x 35mm | Class 3 | Ph2 | Coarse | 10-16 x 35mm |
| 1219.0100040 | 10-16 x 40mm | Class 3 | Ph2 | Coarse | 10-16 x 40mm |
| 1219.0100045 | 10-16 x 45mm | Class 3 | Ph2 | Coarse | 10-16 x 45mm |
| 1219.0100055 | 10-16 x 55mm | Class 3 | Ph2 | Coarse | 10-16 x 55mm |
| 1219.0100075 | 10-16 x 75mm | Class 3 | Ph3 | Coarse | 10-16 x 75mm |
