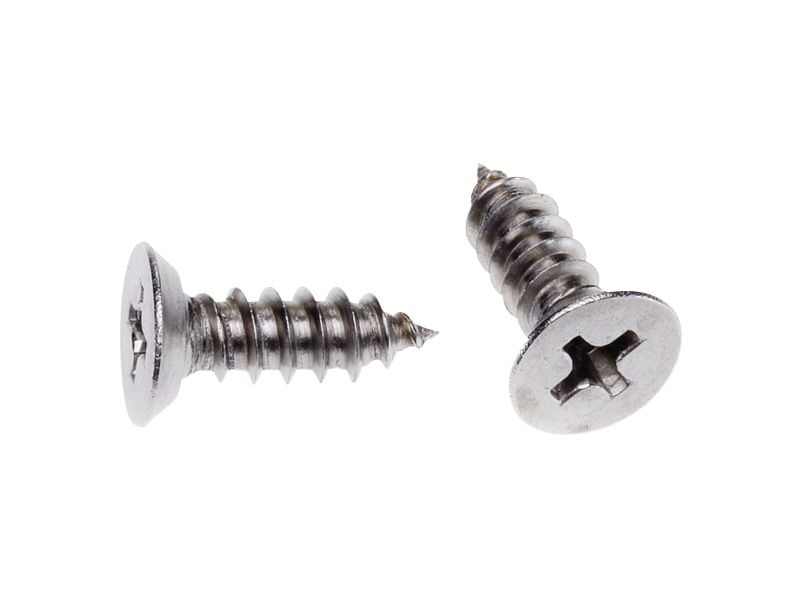

Undercut Head Self Tapping Screws 304 Stainless
Undercut Head Self Tapping Screws 304 Stainless
- Undercut countersunk head
- 10g thread
- Type AB self tapper
- 304 stainless steel
- Phillips drive
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: Soft timber, plywood, laminates, some plastics. Best for use in pre-drilled or punched holes in thin sheet metal.
- Driver Type: Philips P2
- Installation Speed: N/A
PHYSICAL CHARACTERISTICS
- Head Type: Undercut Head
- Point Type: AB
- Material: 304 Stainless Steel
- Finish: N/A
- Head Dia: 8g (8mm), 10g (9mm)
- Head Height: 8g (1.9mm), 10g (2mm)
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 304 Stainless Steel |
| Head Type | Undercut |
| Driver Type | Philips Bit |
| Diameter / Gauge | 8g, 10g |
| Point Type | Type AB (Gimlet Point) |
| Thread Type | Self Tapping |

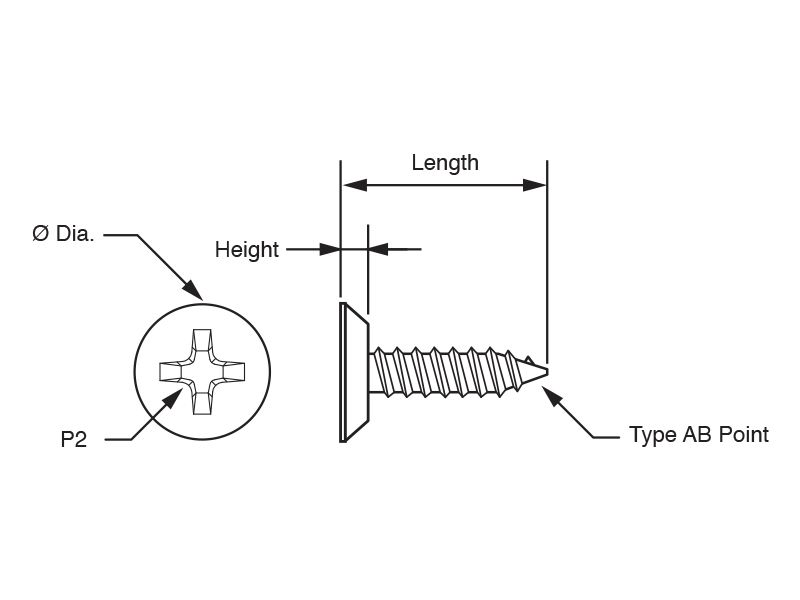

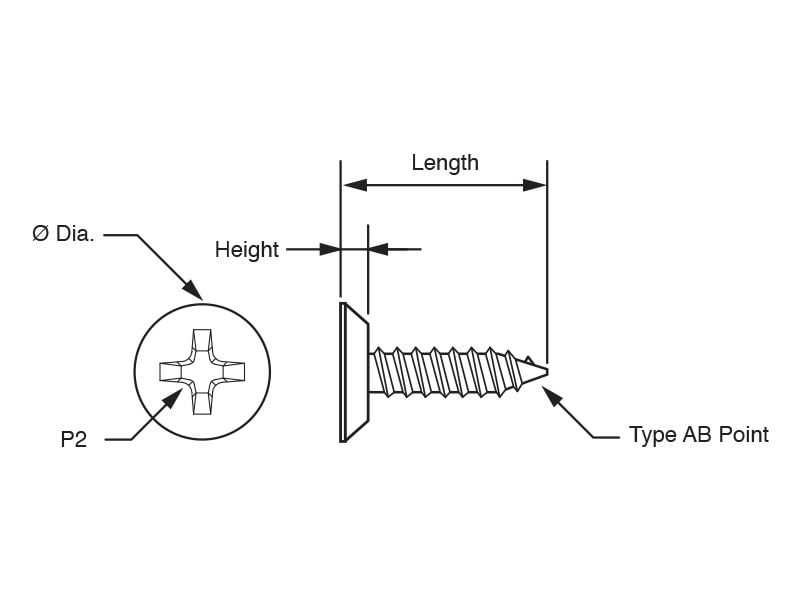

Technical Information
| SKU | Gauge x Length | Material | Driver Bit | Gauge x Length |
|---|---|---|---|---|
| 1191.0080010 | 8 x 3/8” | Gr304 | Ph2 | 8 x 3/8” |
| 1191.0080012 | 8 x 1/2” | Gr304 | Ph2 | 8 x 1/2” |
| 1191.0080016 | 8 x 5/8” | Gr304 | Ph2 | 8 x 5/8” |
| 1191.0080020 | 8 x 3/4” | Gr304 | Ph2 | 8 x 3/4” |
| 1191.0080025 | 8 x 1” | Gr304 | Ph2 | 8 x 1” |
| 1191.0100010 | 10 x 3/8” | Gr304 | Ph2 | 10 x 3/8” |
| 1191.0100012 | 10 x 1/2” | Gr304 | Ph2 | 10 x 1/2” |
| 1191.0100020 | 10 x 3/4” | Gr304 | Ph2 | 10 x 3/4” |
| 1191.0100025 | 10 x 1” | Gr304 | Ph2 | 10 x 1” |
