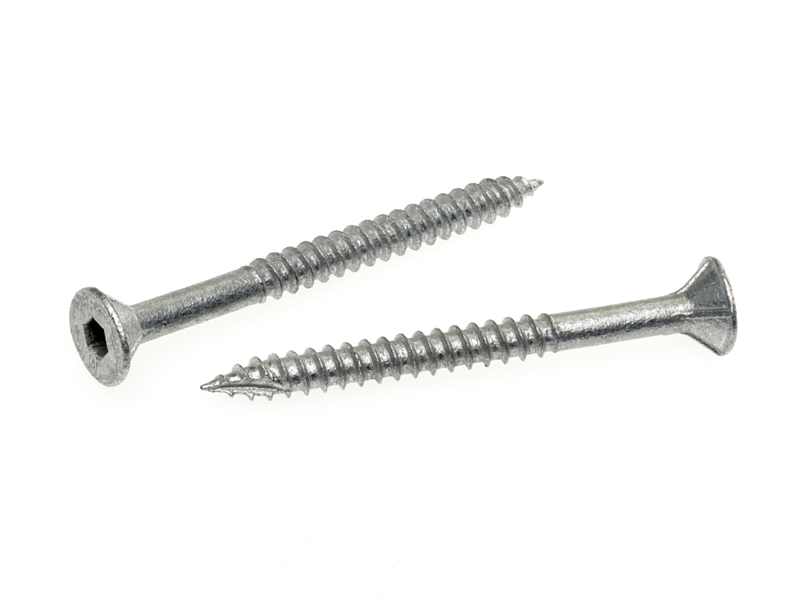

Type 17 Batten Screws Bugle CL3 14g-10
Type 17 Batten Screws Bugle CL3 14g-10
Galvanised Type 17 battens screws are ideal for outdoor use in many types of timber including treated pine. The big bugle batten head helps drive in the screws for a secure fit between joining timbres.
- Galvanised class 3 carbon steel screws
- Bugle batten head
- Hex socket drive
- Type 17 point
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: For use in many types of timber including treated pine.

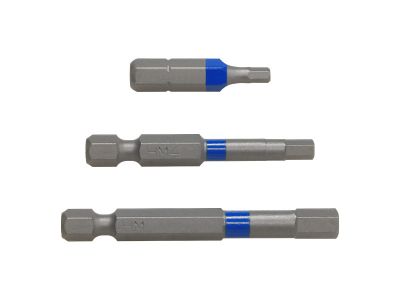

- Driver Type: X5 (5mm Hex Driver)
- Installation Speed: 1500 RPM Max Drill Speed

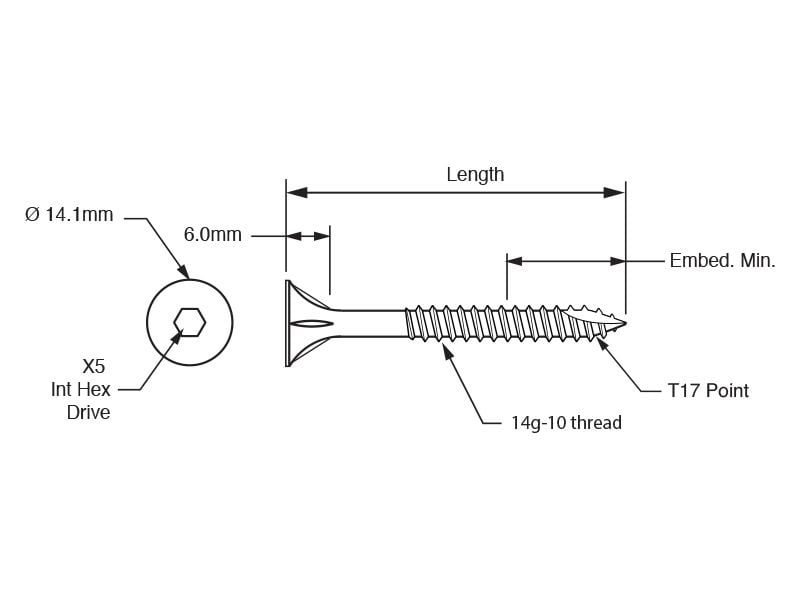

PHYSICAL CHARACTERISTICS
- Head Type: Bugle Batten
- Point Type: T17
- Material: Carbon Steel
- Finish: Class 3 Mechanical galvanised
- Head Dia: 14.1mm
- Head Height: 6mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Class 3 (Mech. Gal) |
| Material Grade | Carbon Steel |
| Head Type | Bugle Batten |
| Driver Type | Hex Bit (Internal Hex) |
| Diameter / Gauge | 14g |
| Point Type | Type 17 (T17) Miled Point |
| Thread Type | Coarse |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Gauge x Length |
|---|---|---|---|---|
| 1203.0140050 | 14-10 x 50mm | Class 3 | 5mm Hex | 14-10 x 50mm |
| 1203.0140065 | 14-10 x 65mm | Class 3 | 5mm Hex | 14-10 x 65mm |
| 1203.0140075 | 14-10 x 75mm | Class 3 | 5mm Hex | 14-10 x 75mm |
| 1203.0140100 | 14-10 x 100mm | Class 3 | 5mm Hex | 14-10 x 100mm |
| 1203.0140125 | 14-10 x 125mm | Class 3 | 5mm Hex | 14-10 x 125mm |
| 1203.0140150 | 14-10 x 150mm | Class 3 | 5mm Hex | 14-10 x 150mm |
| 1203.0140200 | 14-10 x 200mm | Class 3 | 5mm Hex | 14-10 x 200mm |
