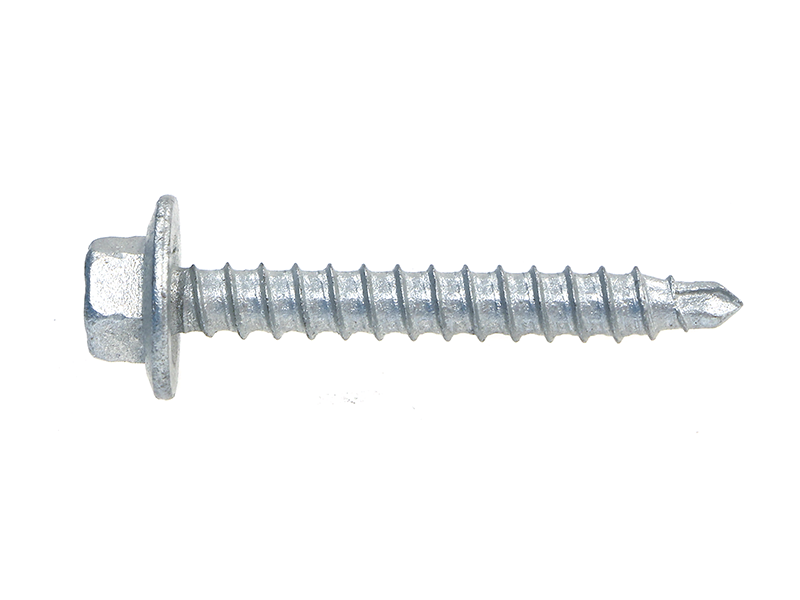

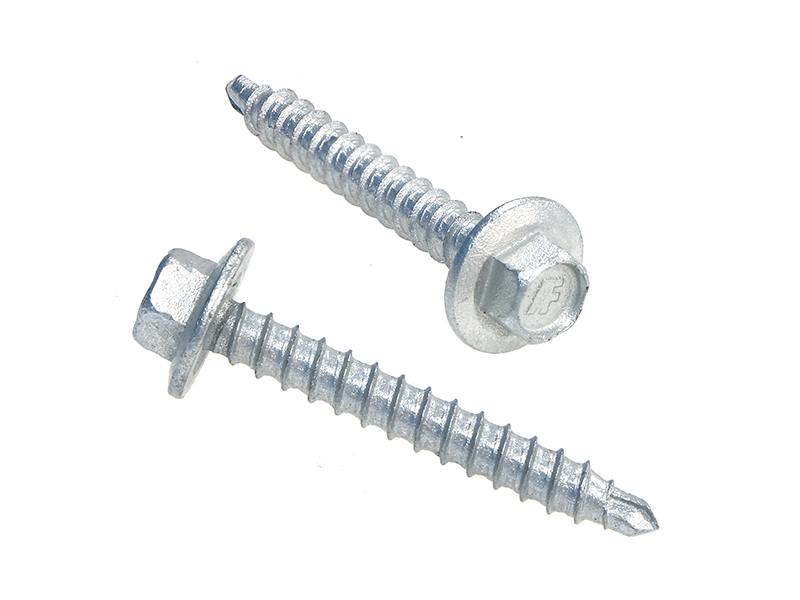

Thunder Point Batten Screws Hex Class 3

Thunder Point Batten Screws Hex Class 3

For fixing Light Gauge Battens to Steel or Timber Trusses

SKU 3B.066
Availability:
Pack:
Sub-total: / ex. gst.
Description

INSTALLATION

  • Drill Capacity: 0.55-1.9mm of steel, Soft timbers including treated pine
  • Driver Type: 5/16 Hex Socket
  • Installation Speed: 2300-2500 RPM Max Drill Speed

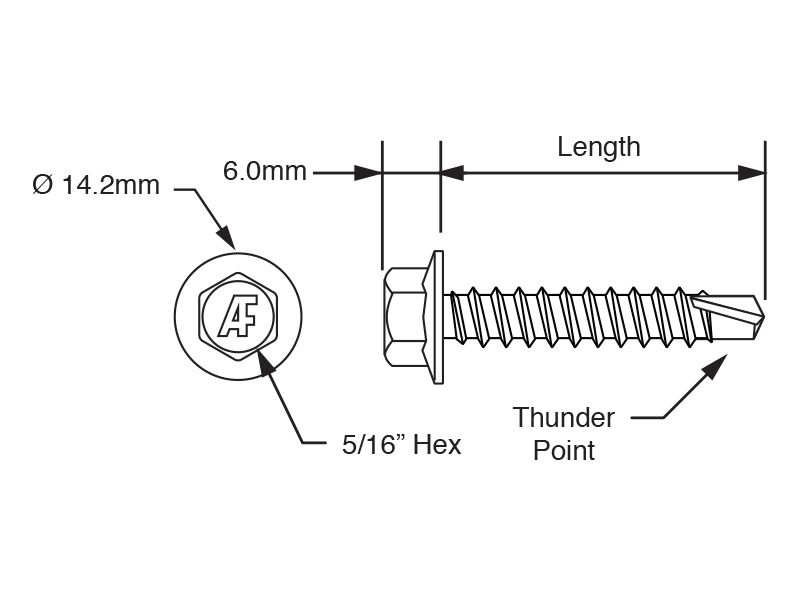

PHYSICAL CHARACTERISTICS

  • Head Type: Hex
  • Point Type: Self Drilling (Thunder point for timber and steel)
  • Material: Carbon Steel
  • Finish: Class 3 Mechanical Galvanised
  • Head Dia: 14.2mm
  • Head Height: 6mm
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Coating & Plating Class 3 (Mech. Gal)
Material Grade Carbon Steel
Head Type Hex Washer
Driver Type Hex Sockets
Diameter / Gauge M5
Point Type Drill Point No.3
Application Steel-to-Steel Self Drilling
Technical Information
SKU Gauge x Length Coating Driver Bit Drill Range Gauge x Length
1088.0550040 M5.5 x 40mm Class 3 5/16" Hex 0.55 -1.60 M5.5 x 40mm
