HRC Type EN 14399-10 Tension Contral Bolts
Tension Control Bolts (TCB) CL10.9 Assembly
- Designed for simplified bolt fastening
- Reduces installer error, completion is confirmed by the shearing off of bolt end
- More accurate performance – bolting can easily be completed with an electric torque wrench
- EN 14399-10 specifies the design and properties of HRC bolt assemblies

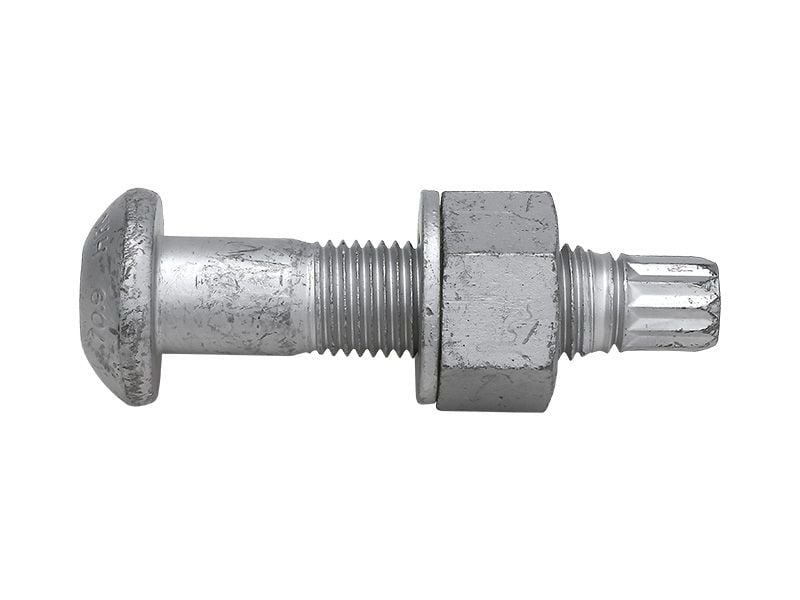

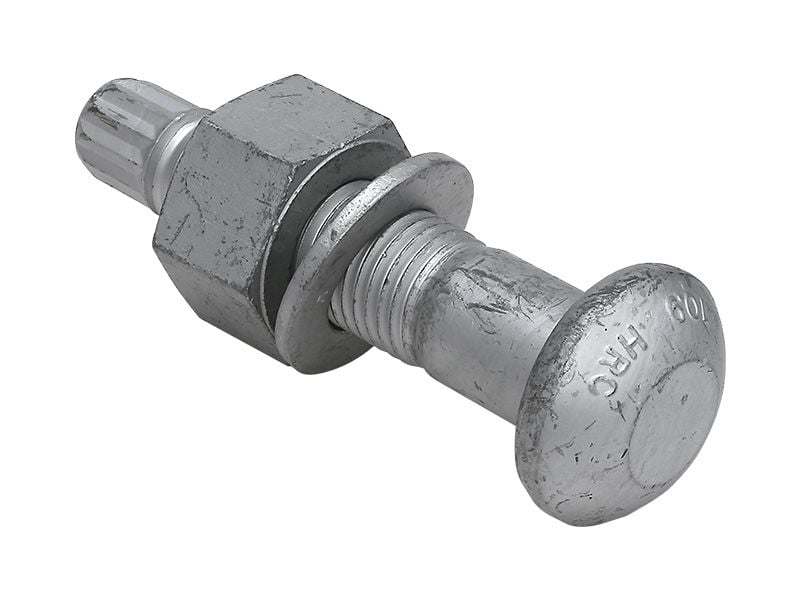

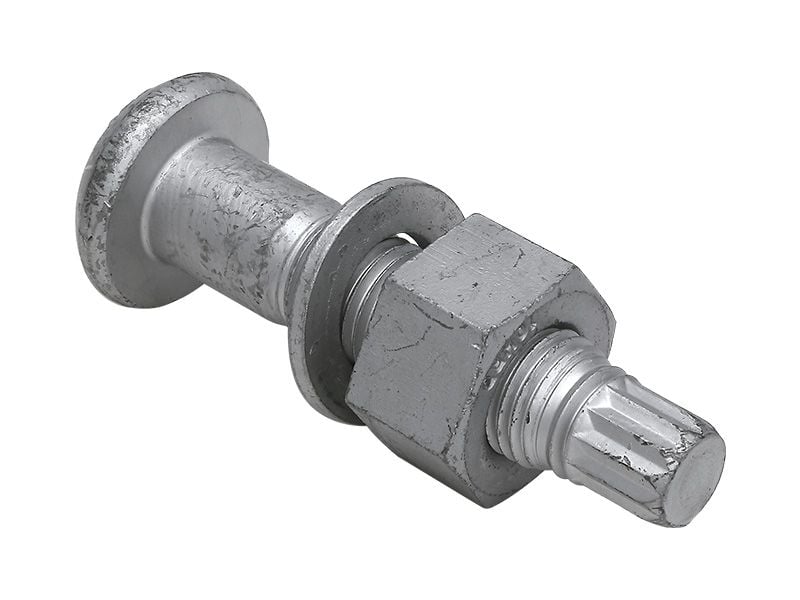

High resistance calibrated (HRC) bolts are designed to provide a predetermined clamping force or tension control. The special spline featured at the tip will shear when tightened to the correct tension. This type of bolt ensures consistent preload during fastening with physical and visual indication for the installer.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
QUALITY ASSURANCE
HRC Assemblies, (bolts, nuts and washers) are supplied in a fully assembled condition ready for use. The components of the assembly, as supplied, have been tested as a batch and must not be mixed with components from any other batch of HRC assemblies.
Storage And Handeling:
- All assemblies must be protected from dirt and moisture.
- Store assemblies in original packaging. Only remove bolts at installation as required
- Never use additional lubrication
- Dirty, oily, rusted assemblies should not be used
- All changes to the coating or foreign mater will affect tensions required
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | 10.9 Hi-Tensile Steel |
|---|---|
| Coating & Plating | Hot Dipped Galvanised (HDG) |
| Head Type | Dome |
| Diameter / Gauge | M16, M20, M24, M30, M36 |
| Thread Type | Metric |
| Use for | Outdoor Structure, Steel to Steel Connections, Structural Fixing |
Technical Information
| SKU | Item |
|---|---|
| 1963.0160120 | M16 x 120mm |
| 1963.0200100 | M20 x 100mm |
| 1963.0200105 | M20 x 105mm |
| 1963.0200060 | M20 x 60mm |
| 1963.0200070 | M20 x 70mm |
| 1963.0200075 | M20 x 75mm |
| 1963.0200080 | M20 x 80mm |
| 1963.0200085 | M20 x 85mm |
| 1963.0200090 | M20 x 90mm |
| 1963.0200095 | M20 x 95mm |
| 1963.0200110 | M20 x 110mm |
| 1963.0200115 | M20 x 115mm |
| 1963.0200120 | M20 x 120mm |
| 1963.0200125 | M20 x 125mm |
| 1963.0200135 | M20 x 135mm |
| 1963.0200160 | M20 x 160mm |
| 1963.0240100 | M24 x 100mm |
| 1963.0240060 | M24 x 60mm |
| 1963.0240065 | M24 x 65mm |
| 1963.0240070 | M24 x 70mm |
| 1963.0240075 | M24 x 75mm |
| 1963.0240080 | M24 x 80mm |
| 1963.0240085 | M24 x 85mm |
| 1963.0240090 | M24 x 90mm |
| 1963.0240095 | M24 x 95mm |
| 1963.0240105 | M24 x 105mm |
| 1963.0240110 | M24 x 110mm |
| 1963.0240115 | M24 x 115mm |
| 1963.0240120 | M24 x 120mm |
| 1963.0240125 | M24 x 125mm |
| 1963.0240130 | M24 x 130mm |
| 1963.0240140 | M24 x 140mm |
| 1963.0270130 | M27 x 130mm |
| 1963.0300100 | M30 x 100mm |
| 1963.0300090 | M30 x 90mm |
| 1963.0300110 | M30 x 110mm |
| 1963.0270150 | M27 x 150mm |
| 1963.0300120 | M30 x 120mm |
| 1963.0300130 | M30 x 130mm |
| 1963.0300140 | M30 x 140mm |
| 1963.0300150 | M30 x 150mm |
| 1963.0300160 | M30 x 160mm |
| 1963.0300170 | M30 x 170mm |
| 1963.0300180 | M30 x 180mm |
| 1963.0300190 | M30 x 190mm |
| 1963.0300210 | M30 x 210mm |
| 1963.0300220 | M30 x 220mm |
| 1963.0300230 | M30 x 230mm |
| 1963.0300250 | M30 x 250mm |
| 1963.0300260 | M30 x 260mm |
| 1963.0360090 | M36 x 90mm |
| 1963.0360100 | M36 x 100mm |
| 1963.0360120 | M36 x 120mm |
| 1963.0360140 | M36 x 140mm |
| 1963.0360170 | M36 x 170mm |
| 1963.0360180 | M36 x 180mm |
