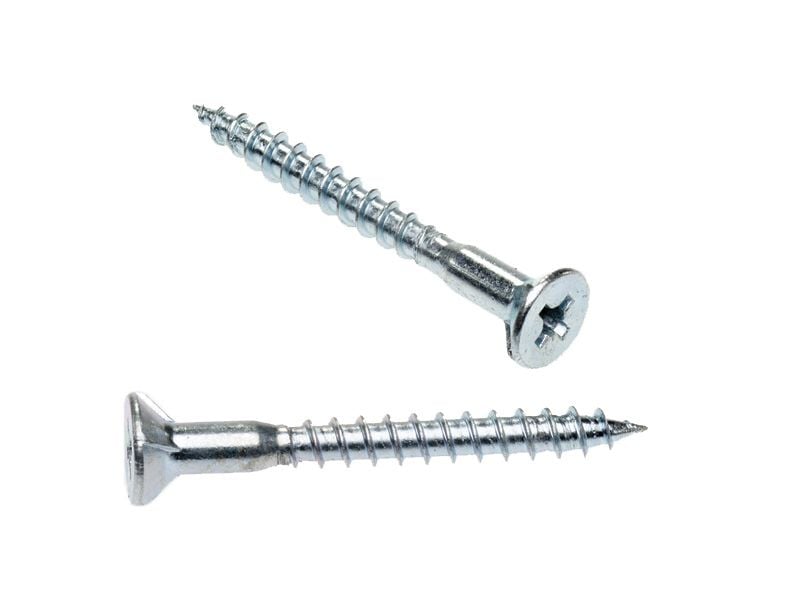

Supachip Screws Recessed Countersunk Zinc
Supachip Screws Recessed Countersunk Zinc
Features a ‘head-hole’ (recessed hole) for correct installation of plastic stem cover caps - similar to a hospa screw head type.
Supachips have a countersunk head with a tapering shank. Always drill and countersunk holes prior to installation, this ensures screws sit perfectly flush. Non-countersunk holes may result in the screw head cracking the laminate surface.
- Phillips drive / countersunk ribbed head
- Zinc plated for internal use
- Designed for timber and compressed sheet board
- Requires drilled countersunk holes
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: Designed for timber and compressed sheet board
- Driver Type: Philips P2
- Installation Speed: 2300-2500 RPM Max Drill Speed

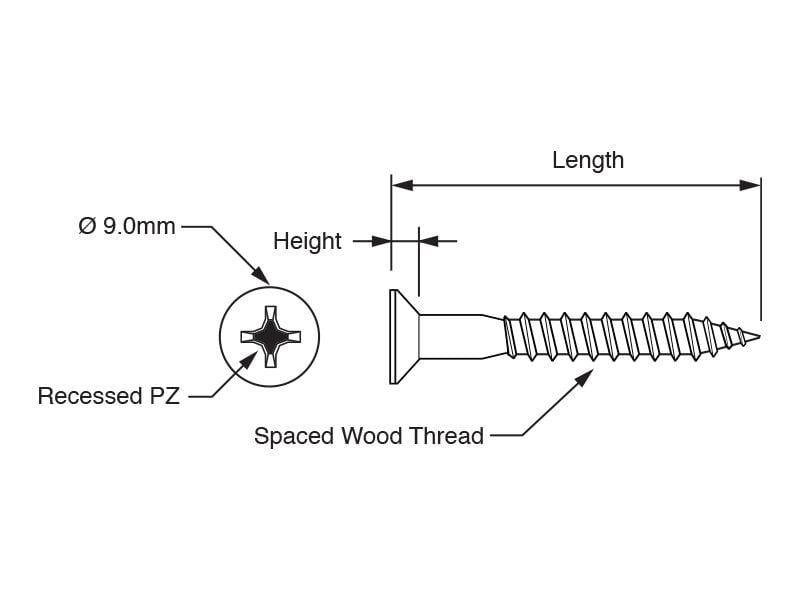

PHYSICAL CHARACTERISTICS
- Head Type: Countersunk
- Point Type: Needle
- Material: Carbon steel
- Finish: Zinc Plated
- Head Dia: 8g (9mm)
- Head Height: 8g (3.4mm)
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Clear |
| Material Grade | Carbon Steel |
| Head Type | Countersunk |
| Driver Type | Philips Bit |
| Diameter / Gauge | 8g |
| Point Type | Needle Point |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Gauge x Length |
|---|---|---|---|---|
| 1145.0080028 | 8-10 x 28mm | Zinc Plated | No.2 | 8-10 x 28mm |
| 1145.0080030 | 8-10 x 30mm | Zinc Plated | No.2 | 8-10 x 30mm |
| 1145.0080035 | 8-10 x 35mm | Zinc Plated | No.2 | 8-10 x 35mm |
| 1145.0080040 | 8-10 x 40mm | Zinc Plated | No.2 | 8-10 x 40mm |
| 1145.0080045 | 8-10 x 45mm | Zinc Plated | No.2 | 8-10 x 45mm |
| 1145.0080050 | 8-10 x 50mm | Zinc Plated | No.2 | 8-10 x 50mm |
| 1145.0080060 | 8-10 x 60mm | Zinc Plated | No.2 | 8-10 x 60mm |
| 1145.0080070 | 8-10 x 70mm | Zinc Plated | No.2 | 8-10 x 70mm |
