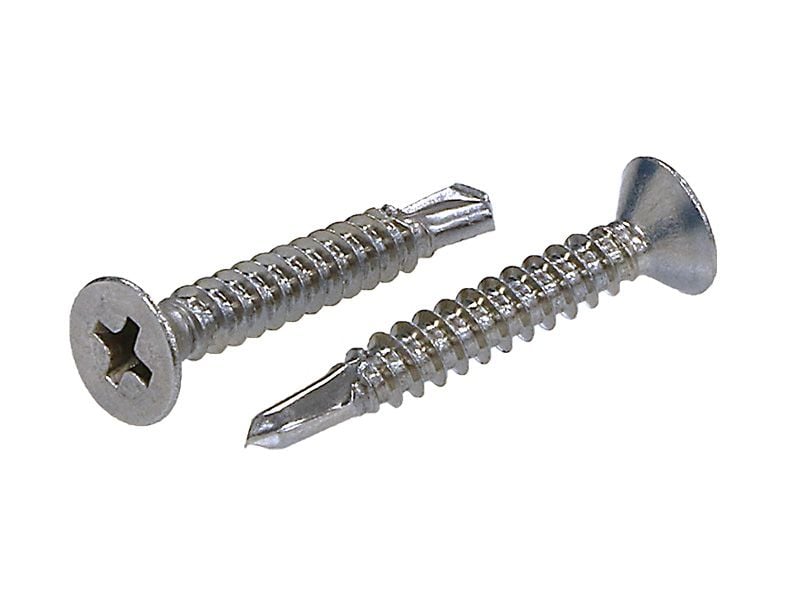

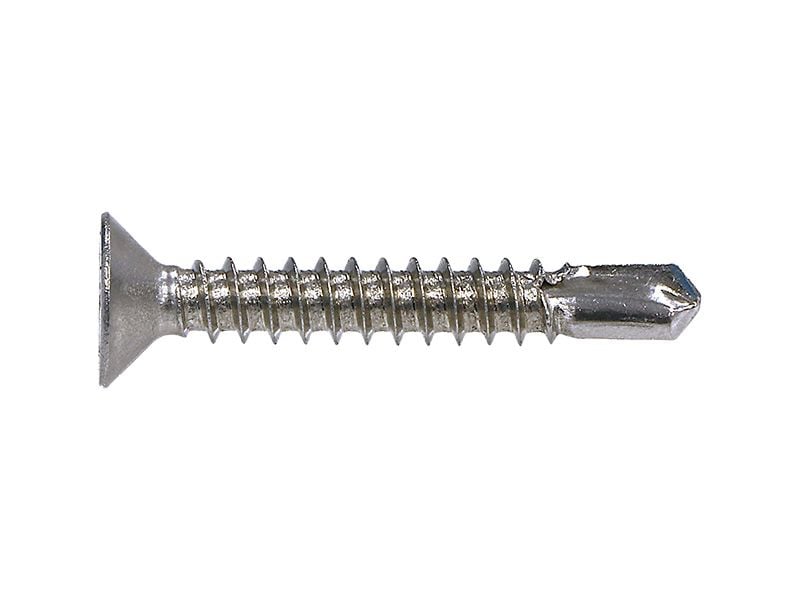

Self Drilling Screws Countersunk 304 Stainless
Self Drilling Screws Countersunk 304 Stainless
These 304 stainless steel self drilling screws are used ONLY for soft non-ferrous metals such as ALUMINUM. For self-drilling into hardened metal with a stainless screw please see bimetal stainless steel.
- 304 stainless steel
- Self-drilling tip for metal
- Phillips drive
- Countersunk head
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 8g (0.75-3mm of soft non-ferrous metal), 10g (1-4mm of soft non-ferrous metal)
- Driver Type: Philips P2
- Installation Speed: 2300-2500 RPM Max Drill Speed

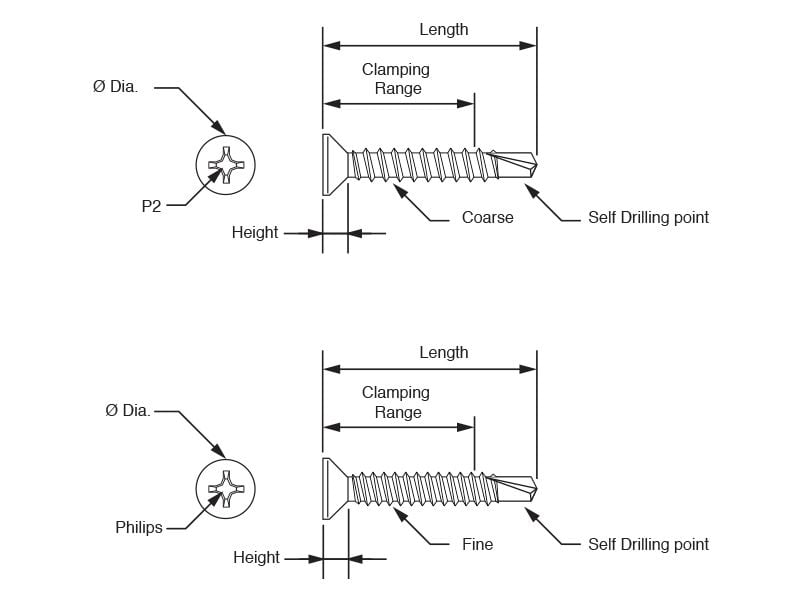

PHYSICAL CHARACTERISTICS
- Head Type: Countersunk
- Point Type: Self Drilling Point
- Material: Grade 304 Stainless Steel
- Finish: N/A
- Head Dia: 8g (8.5mm), 10g (9.1mm)
- Head Height: 8g (2.8mm), 10g (3.3mm)
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 304 Stainless Steel |
| Head Type | Countersunk |
| Driver Type | Philips |
| Diameter / Gauge | 8g, 10g |
| Point Type | Drill Point No.3 |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Item | Material | Driver | Item |
|---|---|---|---|---|
| 3DCCS08025 | 8-18 x 25mm | Gr304 | Ph2 | 8-18 x 25mm |
| 3DCCS10032 | 10-16 x 32mm | Gr304 | Ph2 | 10-16 x 32mm |
| 3DCCS10038 | 10-16 x 38mm | Gr304 | Ph2 | 10-16 x 38mm |
| 3DCCS10050 | 10-16 x 50mm | Gr304 | Ph2 | 10-16 x 50mm |
