Safety Base Guardrail System

Safety Base Guardrail System

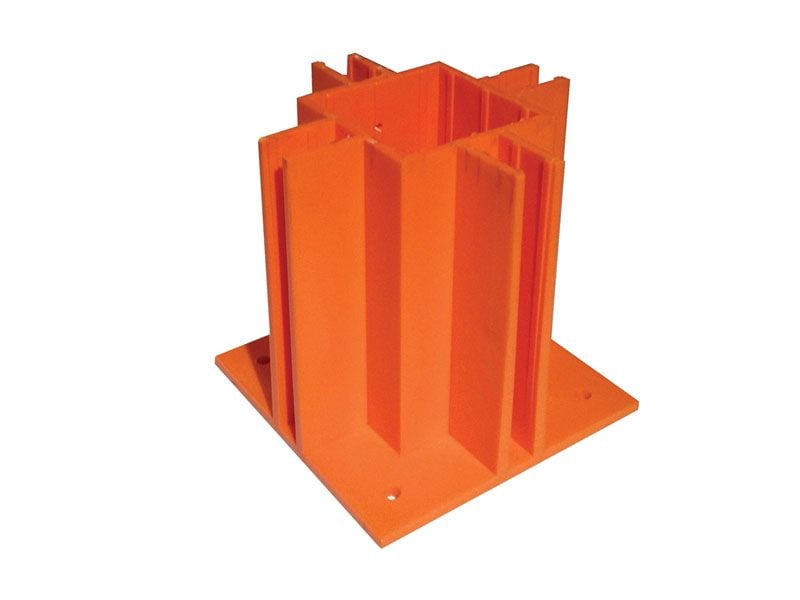

Surface mounted post support boot for safety guardrails.

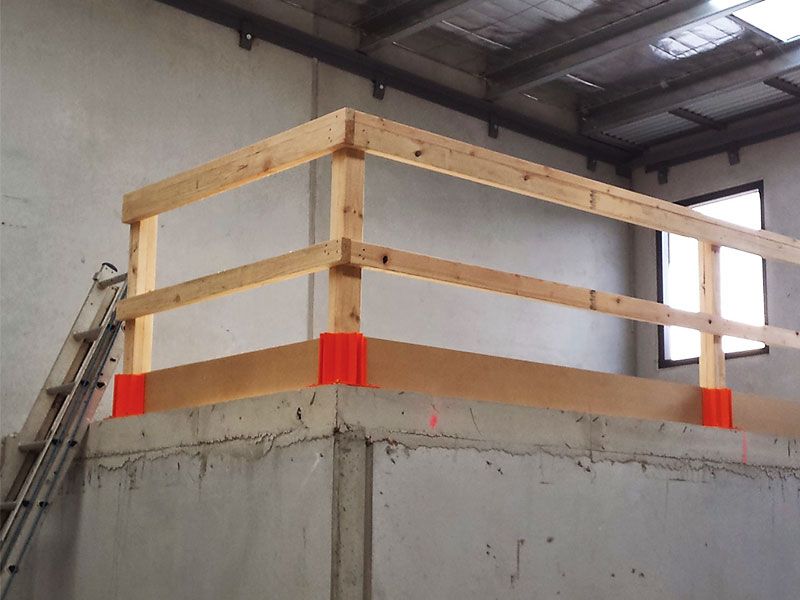

Designed to be an easy and affordable handrail and edge protection system on domestic and commercial building sites. The safety base is a post support that can be temporarily installed as part of guardrail system.

Easy to install in timber or concrete flooring with common fasteners or anchors. Length and arrangement can be suited to your needs.

Safety base post supports meet OH&S standards and are designed and manufactured in Australia. Independently tested by Melbourne Testing Services.

See below for further details on installation.

SKU SAFETYBASE
Availability:
Pack:
Sub-total: / ex. gst.
Description

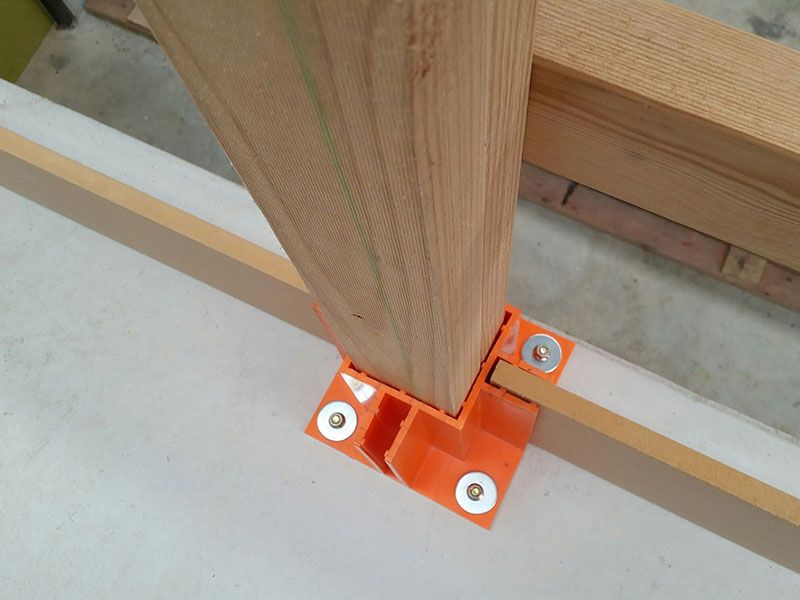

What's required for installing the safety base post support?

  • Each base can be installed using (4) 10mm concrete anchors or (4) 10mm coach screws or (4) M10 hex bolts with nuts and washers
  • Posts: (2) 45 x 90 x 1000 mm (F7 structural pine)
  • Top & mid rails: 45 x 90 x 2100 mm (F7 structural pine)
  • Toe board: 19 x 200 x 1980 mm (form ply)



Setting distance of posts should not exceed 2100mm.

Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Technical Information
SKU Item Item
12M-HRSBO Handrail Safety Base Handrail Safety Base
