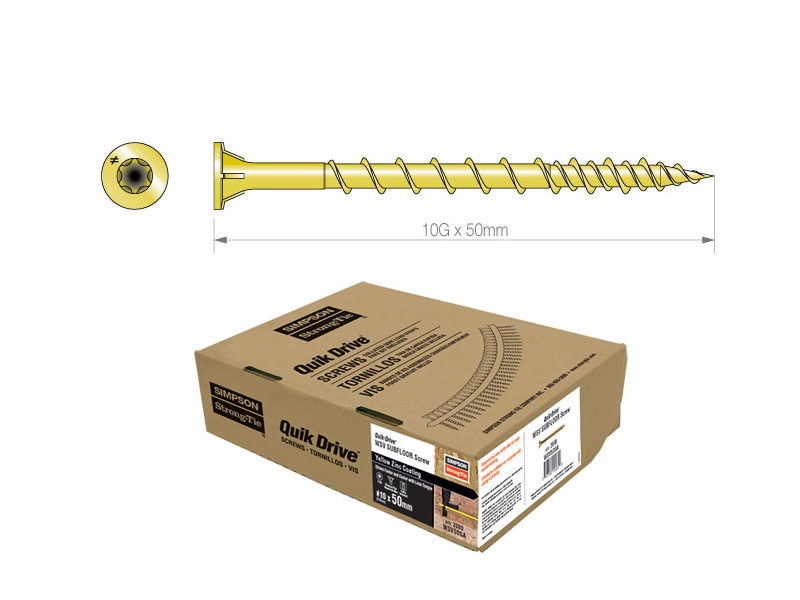

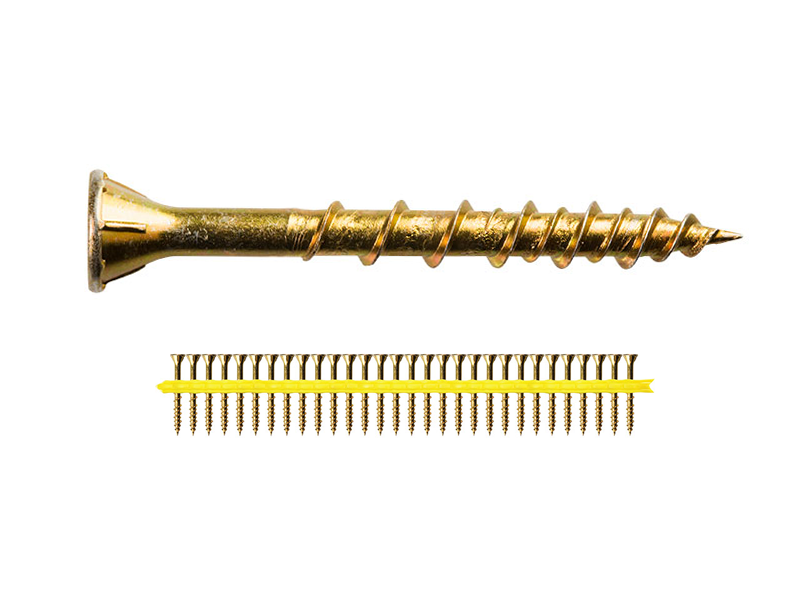

Quik Drive Sub-Floor Screw Timber to Timber WSV
Quik Drive Sub-Floor Screw Timber to Timber WSV
The sub-floor screw has be re-imagined by Simpson Strong-Tie the WSV now featuring an aggressive variable thread that requires less torque and faster installation. The WSV is the best solution for fixing sub-floor, bracing, bottom plate and stair applications.
The head design in combination with the thread design reduces the gaps between the joist and sub-floor that cause floor squeaks due to its superior holding power.
- Torx drive countersunk head
- Sharp point with aggressive variable thread
- Zinc yellow carbon steel screw.
For use with the Quik Drive Pro250 tools.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Features & Benefits
- The WSV tip and thread pattern provide easy starts and up to 25% less torque – which leads to 20% faster driving
- Less torque means less wear on tools
- Head design provides a clean countersink and prevents cam-outs
- A combination of the thread and head design gives greater clamping force to eliminate squeaking floors
- Can be easily backed out, unlike nails
- WSV screws comply with AS1860.2
Applications
- Sub floor, Mid Floor
- Timber-to-Timber
- Timber Flooring
Approvals
- ESR-1472
- Simpson Strong-Tie WSV Subfloor Screws are dual-evaluated per ICC-ES AC233 and ICC-ES AC120 (Report ESR-1472).
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Yellow |
| Material Grade | Carbon Steel |
| Head Type | Countersunk Ribbed |
| Driver Type | Torx Bit |
| Diameter / Gauge | 10g |
| Point Type | Needle Point |
Technical Information
| SKU | Gauge x Length / Coating | Box Contents | Torx Bit | Replacement Bit | Screw Type |
|---|---|---|---|---|---|
| 1168.0100050 | 10 x 50mm / ZY | 2000 Collated Screws | T25 Torx | BITTX25-RC10 | Sharp Point |
| 1168.0100045 | 10g x 45mm / ZY | 2000 Collated Screws | T25 Torx | Sharp Point | |
| 1168.0100064 | 10g x 64mm / ZY | 1500 Collated Screws | T25 Torx | Sharp Point | |
| 1168.0100075 | 10g x 75mm / ZY | 1000 Collated Screws | T25 Torx | Sharp Point |
