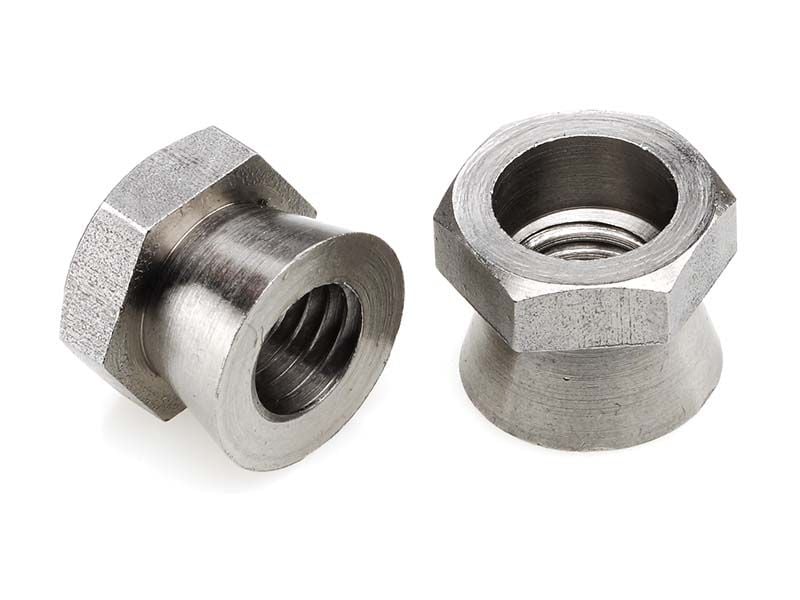

PROLOK Shear Nut 304 Stainless Steel

PROLOK Shear Nut 304 Stainless Steel

PROLOK Shear Nut 304 Stainless Steel

Max Security  ● ● ●

Shear Nuts offers high security, features non-removable when hexagonal part shears off under torque, leaving a tamper resistant cone. No special tools required, a stadnard socket or spanner for installation.

Available in Zinc Plated, Galvanised and Stainless Steel.

SKU 7SHN-304
Availability:
Pack:
Sub-total: / ex. gst.
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Security Level Max Securtiy
Tooling No specialist tool required – installed with a standard socket or spanner. Non-removable.
Driver Type Hex Socket
Nut Type Shear Nuts
Diameter / Gauge M6, M8, M10, M12, M16, M18
Material Grade 304 Stainless Steel
Technical Information
SKU Item Material Drv Direction Driver Type
7SHN6-S M6 Gr304 1-WAY 10mm
7SHN8-S M8 Gr304 1-WAY 13mm
7SHN10-S M10 Gr304 1-WAY 17mm
7SHN12-S M12 Gr304 1-WAY 19mm
7SHN16-S M16 Gr304 1-WAY 24mm
7SHN20-S M20 Gr304 1-WAY 30mm
Documents
