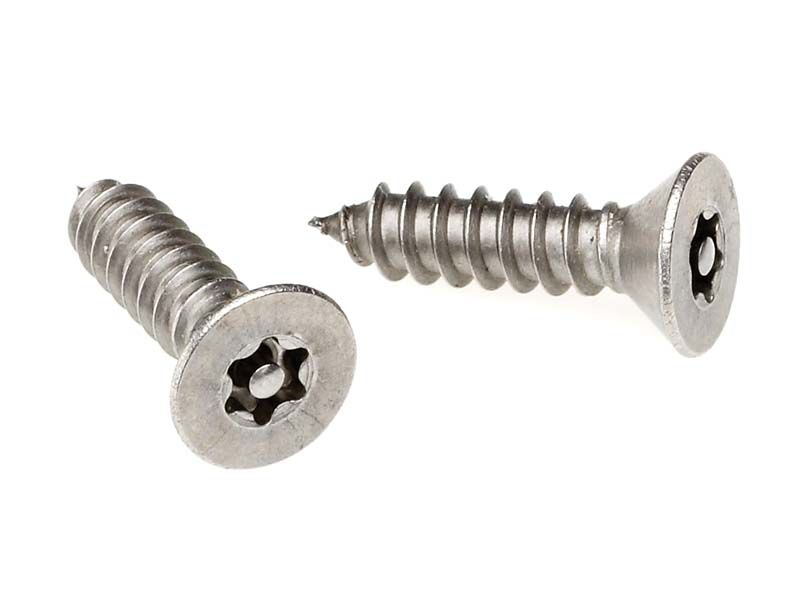

PROLOK Resytork Countersunk Self Tapping 304 Stainless Steel

PROLOK Resytork Countersunk Self Tapping 304 Stainless Steel

Low Security   ● ● ●

  • Type AB self-tapping threaded screws with Resytorx countersunk head
  • The 6-lobe torx pin head design is tamper resistant and ideal for high-torque application
  • These screws are available in 304 grade stainless steel
  • Tooling available here.
SKU 7RTCST-304
Availability:
Pack:
Sub-total: / ex. gst.
Build A Quote?
Store Item
SKU:
Description

Security Rating

Level 1 Low Security – No restriction or special tooling required. Drivers or removal tools can be obtained from hardware store. Fasteners and screws are 2-way driven.



INSTALLATION

  • Drill Capacity: Soft timber, plywood, laminates, some plastics. Best for use in pre-drilled or punched holes in thin sheet metal.
  • Driver Type: Resytorx (6-lobe pin drive)
  • Drive Direction: 2-way removable
  • Installation Speed: N/A



PHYSICAL CHARACTERISTICS

  • Head Type: Countersunk Head
  • Point Type: AB
  • Material: 304 Stainless Steel
  • Finish: N/A
  • Head Dia: 4g (1.8mm), 6g (7.1mm), 8g (8.4mm), 10g (9.7mm), 12g (11.1mm), 14g (12.8mm)
  • Head Height: 4g (2.2mm), 6g (2.1mm), 8g (2.5mm), 10g (3mm), 12g (3.95mm), 14g (4.55mm)
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Security Level Low Security
Tooling Requires matching specialist insert driver bit for installation and removal.
Driver Type Resytork Bit
Head Type Countersunk
Diameter / Gauge 4g, 6g, 8g, 10g, 12g, 14g
Thread Type Self Tapping
Point Type Type AB (Gimlet Point)
Material Grade 304 Stainless Steel
Technical Information
SKU Item Material Drv Direction Driver Type
1599.0040012 4G x 1/2 Gr304 2-WAY T10
1599.0040020 4G x 3/4 Gr304 2-WAY T10
1599.0060012 6G x 1/2 Gr304 2-WAY T15
1599.0060016 6G x 5/8 Gr304 2-WAY T15
1599.0060010 6G x 3/8 Gr304 2-WAY T15
1599.0060020 6G x 3/4 Gr304 2-WAY T15
1599.0060025 6G x 1 Gr304 2-WAY T15
1599.0060032 6G x 1 1/4 Gr304 2-WAY T15
1599.0060038 6G x 1 1/2 Gr304 2-WAY T15
1599.0060050 6G x 2 Gr304 2-WAY T15
1599.0060065 6G x 2 1/2 Gr304 2-WAY T15
1599.0080012 8G x 1/2 Gr304 2-WAY T20
1599.0080016 8G x 5/8 Gr304 2-WAY T20
1599.0080020 8G x 3/4 Gr304 2-WAY T20
1599.0080025 8G x 1 Gr304 2-WAY T20
1599.0080032 8G x 1 1/4 Gr304 2-WAY T20
1599.0080038 8G x 1 1/2 Gr304 2-WAY T20
1599.0080050 8G x 2 Gr304 2-WAY T20
1599.0080065 8G x 2 1/2 Gr304 2-WAY T20
1599.0100012 10G x 1/2 Gr304 2-WAY T25
1599.0100016 10G x 5/8 Gr304 2-WAY T25
1599.0100020 10G x 3/4 Gr304 2-WAY T25
1599.0100025 10G x 1 Gr304 2-WAY T25
1599.0100032 10G x 1 1/4 Gr304 2-WAY T25
1599.0100038 10G x 1 1/2 Gr304 2-WAY T25
1599.0100050 10G x 2 Gr304 2-WAY T25
1599.0100065 10G x 2 1/2 Gr304 2-WAY T25
1599.0100075 10G x 3 Gr304 2-WAY T25
1599.0100100 10G x 4 Gr304 2-WAY T25
1599.0120016 12G x 5/8 Gr304 2-WAY T27
1599.0120020 12G x 3/4 Gr304 2-WAY T27
1599.0120025 12G x 1 Gr304 2-WAY T27
1599.0120032 12G x 1 1/4 Gr304 2-WAY T27
1599.0120038 12G x 1 1/2 Gr304 2-WAY T27
1599.0120050 12G x 2 Gr304 2-WAY T27
1599.0120065 12G x 2 1/2 Gr304 2-WAY T27
1599.0120075 12G x 3 Gr304 2-WAY T27
1599.0140016 14G x 5/8 Gr304 2-WAY T30
1599.0140020 14G x 3/4 Gr304 2-WAY T30
1599.0140025 14G x 1 Gr304 2-WAY T30
1599.0140032 14G x 1 1/4 Gr304 2-WAY T30
1599.0140038 14G x 1 1/2 Gr304 2-WAY T30
1599.0140050 14G x 2 Gr304 2-WAY T30
