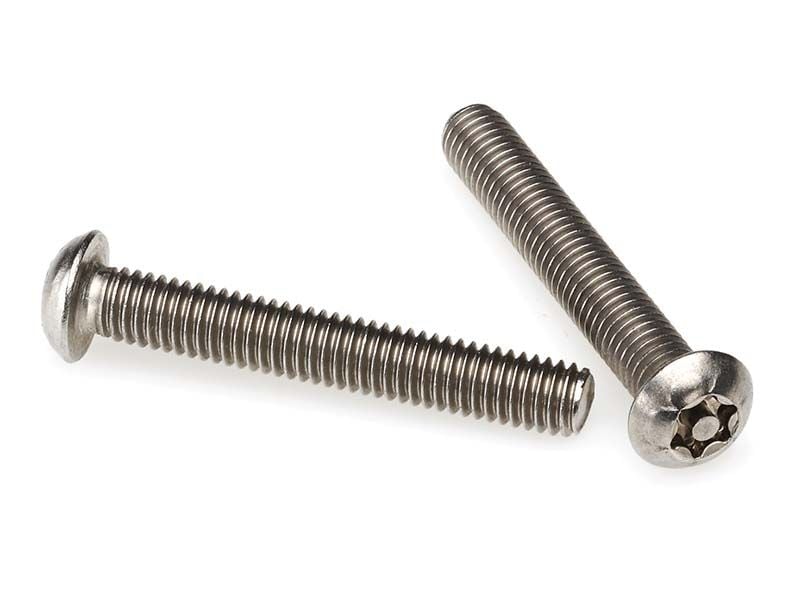

PROLOK Resytork Button Machine Screw 304 Stainless Steel

PROLOK Resytork Button Machine Screw 304 Stainless Steel

PROLOK Resytork Button Machine Screw 304 Stainless Steel

Low Security   ● ● ●

Resytork Button offers a low security, features with an internal pin in the six-lobe recess to repel any standard torx tools. A button head offers a smooth rounded, aesthetically pleasing flush finish and leaves no threads protruding.

It requires a special driver to fix and tighten to desired torque.

SKU 7RTBM-304
Availability:
Pack:
Sub-total: / ex. gst.
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Security Level Low Security
Tooling Requires matching specialist insert driver bit for installation and removal.
Driver Type Resytork
Head Type Button
Diameter / Gauge 6g, 8g, 10g, M3, M4, M5, M6, M8, M10, M12, 1/4"
Material Grade 304 Stainless Steel
Technical Information
SKU Item Material Drv Direction Driver Type Item
7RTBM1-4D 1/4-20 x 1/2 Gr304 2-WAY T27 1/4-20 x 1/2
7RTBM1-4E 1/4-20 x 5/8 Gr304 2-WAY T27 1/4-20 x 5/8
7RTBM1-4C 1/4-20 x 3/8 Gr304 2-WAY T27 1/4-20 x 3/8
7RTBM1-4I 1/4-20 x 1 1/2 Gr304 2-WAY T27 1/4-20 x 1 1/2
7RTBM1-4F 1/4-20 x 3/4 Gr304 2-WAY T27 1/4-20 x 3/4
7RTBM1-4G 1/4-20 x 1 Gr304 2-WAY T27 1/4-20 x 1
7RTBM1-4H 1/4-20 x 1 1/4 Gr304 2-WAY T27 1/4-20 x 1 1/4
7RTBM1-4J 1/4-20 x 2 Gr304 2-WAY T27 1/4-20 x 2
7RTBM632C 6-32 x 3/8 Gr304 2-WAY T10 6-32 x 3/8
7RTBM632D 6-32 x 1/2 Gr304 2-WAY T10 6-32 x 1/2
7RTBM632F 6-32 x 3/4 Gr304 2-WAY T10 6-32 x 3/4
7RTBM632G 6-32 x 1 Gr304 2-WAY T10 6-32 x 1
7RTBM632I 6-32 x 1 1/2 Gr304 2-WAY T10 6-32 x 1 1/2
7RTBM832D 8-32 x 1/2 Gr304 2-WAY T15 8-32 x 1/2
7RTBM832E 8-32 x 5/8 Gr304 2-WAY T15 8-32 x 5/8
7RTBM832C 8-32 x 3/8 Gr304 2-WAY T15 8-32 x 3/8
7RTBM832F 8-32 x 3/4 Gr304 2-WAY T15 8-32 x 3/4
7RTBM832G 8-32 x 1 Gr304 2-WAY T15 8-32 x 1
7RTBM832H 8-32 x 1 1/4 Gr304 2-WAY T15 8-32 x 1 1/4
7RTBM832I 8-32 x 1 1/2 Gr304 2-WAY T15 8-32 x 1 1/2
7RTBM1024D 10-24 x 1/2 Gr304 2-WAY T25 10-24 x 1/2
7RTBM1024C 10-24 x 3/8 Gr304 2-WAY T25 10-24 x 3/8
7RTBM1024F 10-24 x 3/4 Gr304 2-WAY T25 10-24 x 3/4
7RTBM1024G 10-24 x 1 Gr304 2-WAY T25 10-24 x 1
7RTBM1024H 10-24 x 1 1/4 Gr304 2-WAY T25 10-24 x 1 1/4
7RTBM1024I 10-24 x 1 1/2 Gr304 2-WAY T25 10-24 x 1 1/2
7RTBM1024J 10-24 x 2 Gr304 2-WAY T25 10-24 x 2
7RTBM1032D 10-32 x 1/2 Gr304 2-WAY T25 10-32 x 1/2
7RTBM1032C 10-32 x 3/8 Gr304 2-WAY T25 10-32 x 3/8
7RTBM1032F 10-32 x 3/4 Gr304 2-WAY T25 10-32 x 3/4
7RTBM1032G 10-32 x 1 Gr304 2-WAY T25 10-32 x 1
7RTBM1032H 10-32 x 1 1/4 Gr304 2-WAY T25 10-32 x 1 1/4
7RTBM1032I 10-32 x 1 1/2 Gr304 2-WAY T25 10-32 x 1 1/2
7RTBM305 M3 x 5 Gr304 2-WAY T25 M3 x 5
7RTBM306 M3 x 6 Gr304 2-WAY T10 M3 x 6
7RTBM308 M3 x 8 Gr304 2-WAY T10 M3 x 8
7RTBM310 M3 x 10 Gr304 2-WAY T10 M3 x 10
7RTBM312 M3 x 12 Gr304 2-WAY T10 M3 x 12
7RTBM314 M3 x 14 Gr304 2-WAY T10 M3 x 14
7RTBM316 M3 x 16 Gr304 2-WAY T10 M3 x 16
7RTBM320 M3 x 20 Gr304 2-WAY T10 M3 x 20
7RTBM325 M3 x 25 Gr304 2-WAY T10 M3 x 25
7RTBM406 M4 x 6 Gr304 2-WAY T20 M4 x 6
7RTBM408 M4 x 8 Gr304 2-WAY T20 M4 x 8
7RTBM410 M4 x 10 Gr304 2-WAY T20 M4 x 10
7RTBM412 M4 x 12 Gr304 2-WAY T20 M4 x 12
7RTBM416 M4 x 16 Gr304 2-WAY T20 M4 x 16
7RTBM420 M4 x 20 Gr304 2-WAY T20 M4 x 20
7RTBM425 M4 x 25 Gr304 2-WAY T20 M4 x 25
7RTBM430 M4 x 30 Gr304 2-WAY T20 M4 x 30
7RTBM440 M4 x 40 Gr304 2-WAY T20 M4 x 40
7RTBM450 M4 x 50 Gr304 2-WAY T20 M4 x 50
7RTBM508 M5 x 8 Gr304 2-WAY T25 M5 x 8
7RTBM512 M5 x 12 Gr304 2-WAY T25 M5 x 12
7RTBM516 M5 x 16 Gr304 2-WAY T25 M5 x 16
7RTBM518 M5 x 18 Gr304 2-WAY T25 M5 x 18
7RTBM520 M5 x 20 Gr304 2-WAY T25 M5 x 20
7RTBM525 M5 x 25 Gr304 2-WAY T25 M5 x 25
7RTBM530 M5 x 30 Gr304 2-WAY T25 M5 x 30
7RTBM535 M5 x 35 Gr304 2-WAY T25 M5 x 35
7RTBM540 M5 x 40 Gr304 2-WAY T25 M5 x 40
7RTBM550 M5 x 50 Gr304 2-WAY T25 M5 x 50
7RTBM608 M6 x 8 Gr304 2-WAY T30 M6 x 8
7RTBM610 M6 x 10 Gr304 2-WAY T30 M6 x 10
7RTBM612 M6 x 12 Gr304 2-WAY T30 M6 x 12
7RTBM616 M6 x 16 Gr304 2-WAY T30 M6 x 16
7RTBM620 M6 x 20 Gr304 2-WAY T30 M6 x 20
7RTBM625 M6 x 25 Gr304 2-WAY T30 M6 x 25
7RTBM630 M6 x 30 Gr304 2-WAY T30 M6 x 30
7RTBM635 M6 x 35 Gr304 2-WAY T30 M6 x 35
7RTBM640 M6 x 40 Gr304 2-WAY T30 M6 x 40
7RTBM650 M6 x 50 Gr304 2-WAY T30 M6 x 50
7RTBM660 M6 x 60 Gr304 2-WAY T30 M6 x 60
7RTBM670 M6 x 70 Gr304 2-WAY T30 M6 x 70
7RTBM675 M6 x 75 Gr304 2-WAY T30 M6 x 75
7RTBM680 M6 x 80 Gr304 2-WAY T30 M6 x 80
7RTBM810 M8 x 10 Gr304 2-WAY T40 M8 x 10
7RTBM812 M8 x 12 Gr304 2-WAY T40 M8 x 12
7RTBM816 M8 x 16 Gr304 2-WAY T40 M8 x 16
7RTBM820 M8 x 20 Gr304 2-WAY T40 M8 x 20
7RTBM825 M8 x 25 Gr304 2-WAY T40 M8 x 25
7RTBM830 M8 x 30 Gr304 2-WAY T40 M8 x 30
7RTBM835 M8 x 35 Gr304 2-WAY T40 M8 x 35
7RTBM840 M8 x 40 Gr304 2-WAY T40 M8 x 40
7RTBM850 M8 x 50 Gr304 2-WAY T40 M8 x 50
7RTBM855 M8 x 55 Gr304 2-WAY T40 M8 x 55
7RTBM860 M8 x 60 Gr304 2-WAY T40 M8 x 60
7RTBM865 M8 x 65 Gr304 2-WAY T40 M8 x 65
7RTBM870 M8 x 70 Gr304 2-WAY T40 M8 x 70
7RTBM875 M8 x 75 Gr304 2-WAY T40 M8 x 75
7RTBM880 M8 x 80 Gr304 2-WAY T40 M8 x 80
7RTBM895 M8 x 95 Gr304 2-WAY T40 M8 x 95
7RTBM8100 M8 x 100 Gr304 2-WAY T40 M8 x 100
7RTBM1016 M10 x 16 Gr304 2-WAY T45 M10 x 16
7RTBM1020 M10 x 20 Gr304 2-WAY T45 M10 x 20
7RTBM1025 M10 x 25 Gr304 2-WAY T45 M10 x 25
7RTBM1030 M10 x 30 Gr304 2-WAY T45 M10 x 30
7RTBM1035 M10 x 35 Gr304 2-WAY T45 M10 x 35
7RTBM1040 M10 x 40 Gr304 2-WAY T45 M10 x 40
7RTBM1045 M10 x 45 Gr304 2-WAY T45 M10 x 45
7RTBM1050 M10 x 50 Gr304 2-WAY T45 M10 x 50
7RTBM1060 M10 x 60 Gr304 2-WAY T45 M10 x 60
7RTBM1065 M10 x 65 Gr304 2-WAY T45 M10 x 65
7RTBM1070 M10 x 70 Gr304 2-WAY T45 M10 x 70
7RTBM1080 M10 x 80 Gr304 2-WAY T45 M10 x 80
7RTBM1090 M10 x 90 Gr304 2-WAY T45 M10 x 90
7RTBM1230 M12 x 30 Gr304 2-WAY T50 M12 x 30
