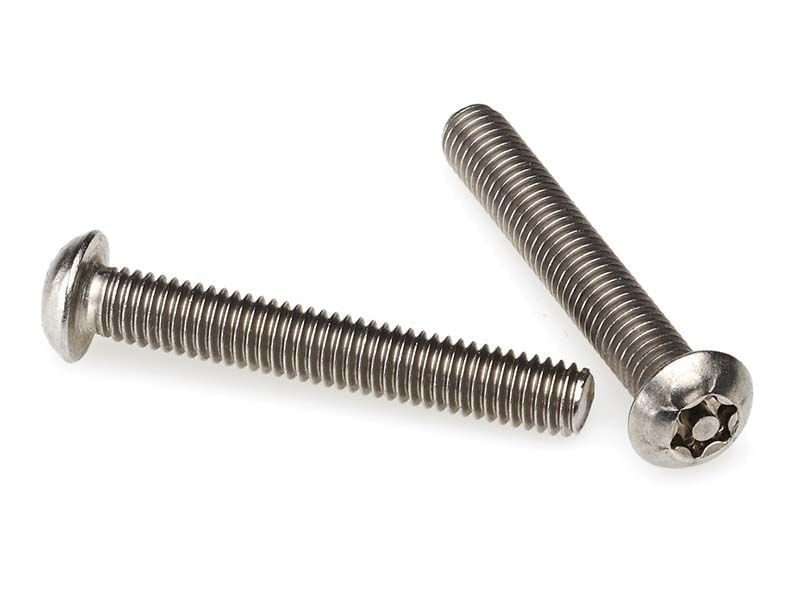

PROLOK Resytork Button Imperial Machine Screw 304 Stainless Steel
PROLOK Resytork Button Imperial Machine Screw 304 Stainless Steel
Low Security ● ● ●
Resytork Button offers a low security, features with an internal pin in the six-lobe recess to repel any standard tools. A button head offers a smooth rounded, aesthetically pleasing flush finish and leaves no threads protruding.
It requires a special driver to fix and tighten to desired torque.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Security Level | Low Security |
|---|---|
| Tooling | Requires matching specialist insert driver bit for installation and removal. |
| Driver Type | Resytork Bit |
| Head Type | Button |
| Diameter / Gauge | 6g, 8g, 10g, M3, M4, M5, M6, M8, M10, M12 |
| Thread Type | UNC |
| Material Grade | 304 Stainless Steel |
Technical Information
| SKU | Item | Material | Drv Direction | Driver Type |
|---|---|---|---|---|
| 1583.0101616 | 3/8UNC x 5/8 | Gr304 | 2-WAY | T45 |
| 1583.0101620 | 3/8 UNC x 3/4 | Gr304 | 2-WAY | T45 |
| 1583.0101625 | 3/8 UNC x 1 | Gr304 | 2-WAY | T45 |
| 1583.0101632 | 3/8 UNC x 1 1/4 | Gr304 | 2-WAY | T45 |
| 1583.0101638 | 3/8 UNC x 1 1/2 | Gr304 | 2-WAY | T45 |
| 1583.0101650 | 3/8 UNC x 2 | Gr304 | 2-WAY | T45 |
| 1583.0101675 | 3/8 UNC x 3 | Gr304 | 2-WAY | T45 |
| 1583.0101689 | 3/8 UNC x 3 1/2 | Gr304 | 2-WAY | T45 |
| 1583.0101699 | 3/8 UNC x 4 | Gr304 | 2-WAY | T45 |
| 1583.0081816 | 5/16-18 x 5/8 | Gr304 | 2-WAY | T40 |
| 1583.0081820 | 5/16 UNC x 3/4 | Gr304 | 2-WAY | T45 |
| 1583.0081825 | 5/16 UNC x 1 | Gr304 | 2-WAY | T45 |
| 1583.0081832 | 5/16 UNC x 1 1/4 | Gr304 | 2-WAY | T45 |
| 1583.0081838 | 5/16 UNC x 1 1/2 | Gr304 | 2-WAY | T45 |
| 1583.0081850 | 5/16 UNC x 2 | Gr304 | 2-WAY | T45 |
| 1583.0033250 | 6/32 UNC x 2 | Gr304 | 2-WAY | T45 |
