PROLOK Resytork Button Barrel Nut Galvanised

PROLOK Resytork Button Barrel Nut Galvanised

PROLOK Resytork Button Barrel Nut Galvanised

Low Security   ● ● ●

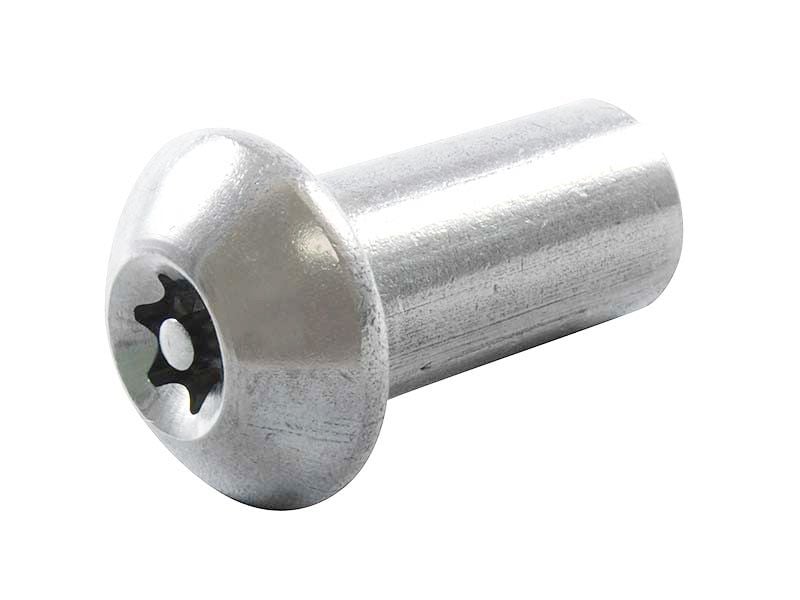

Resytork Button Barrel Nut offers low security, it features with an internal pin in the six-lobe recess to repel any standard torx tools. A button head offers a smooth rounded, aesthetically pleasing flush finish and leaves no threads protruding. Thread is inside the sleeve of the barrel nut, ideal for clamping applications where both sides are visible. It requires a special driver to fix and tighten to desired torque. Available in Galvanised, Zinc and 304 Stainless Steel.

SKU 7RTBN-GAL
Availability:
Pack:
Sub-total: / ex. gst.
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Security Level Low Security
Tooling Requires matching specialist insert driver bit for installation and removal.
Driver Type Resytork
Nut Type Barrel Nuts
Diameter / Gauge M10, M12
Material Grade Carbon Steel
Coating & Plating Galvanised
Technical Information
SKU Item Material Drv Direction Driver Type
7RTBN10-G M10 x 28 GAL 2-WAY T45
7RTBN12-G M12 x 35 GAL 2-WAY T50
Documents
