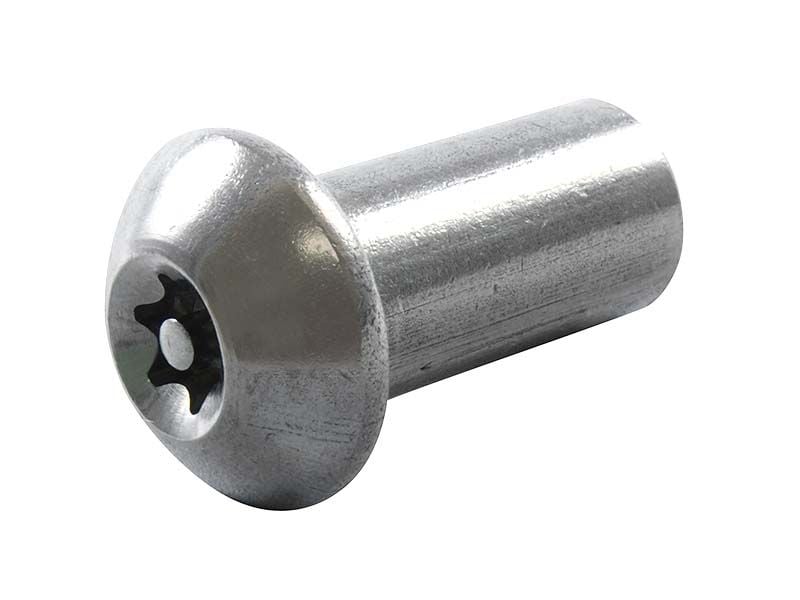

PROLOK Resytork Button Barrel Nut 304 Stainless Steel
PROLOK Resytork Button Barrel Nut 304 Stainless Steel
Low Security ● ● ●
Resytork Button Barrel Nut offers low security, it features with an internal pin in the six-lobe recess to repel any standard torx tools. A button head offers a smooth rounded, aesthetically pleasing flush finish and leaves no threads protruding. Thread is inside the sleeve of the barrel nut, ideal for clamping applications where both sides are visible. It requires a special driver to fix and tighten to desired torque. Available in Galvanised, Zinc and 304 Stainless Steel.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Security Level | Low Security |
|---|---|
| Tooling | Requires matching specialist insert driver bit for installation and removal. |
| Driver Type | Resytork Bit |
| Nut Type | Barrel Nuts |
| Diameter / Gauge | M4, M5, M6, M8, M10, 3/16", 5/16", 3/8" |
| Material Grade | 304 Stainless Steel |
Technical Information
| SKU | Item | Material | Drv Direction | Driver |
|---|---|---|---|---|
| 1587.0080019 | 5/16 UNC x 19 | Gr304 | 2-WAY | T45 |
| 1587.0050019 | 3/16 UNC x 19 | Gr304 | 2-WAY | T27 |
| 1587.0100016 | 3/8 UNC x 16 | Gr304 | 2-WAY | T45 |
| 1585.0040010 | M4 x 10mm | Gr304 | 2-WAY | T20 |
| 1585.0050010 | M5 x 10mm | Gr304 | 2-WAY | T25 |
| 1585.0060012 | M6 x 12mm | Gr304 | 2-WAY | T30 |
| 1585.0060025 | M6 x 25mm | Gr304 | 2-WAY | T30 |
| 1585.0080016 | M8 x 16mm | Gr304 | 2-WAY | T40 |
| 1585.0080030 | M8 x 30mm | Gr304 | 2-WAY | T40 |
| 1585.0100020 | M10 x 20mm | Gr304 | 2-WAY | T45 |
| 1585.0100028 | M10 x 28mm | Gr304 | 2-WAY | T45 |
