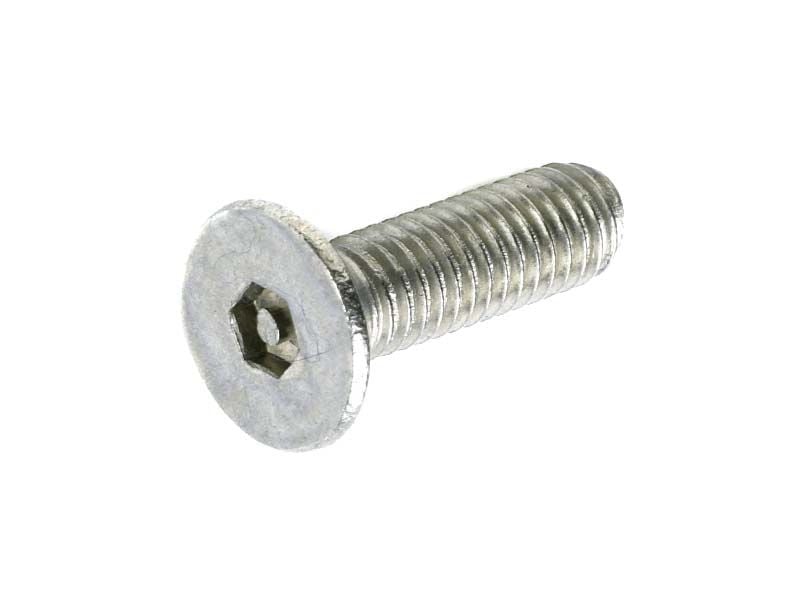

PROLOK Pin Hex Countersunk Machine Screw 304 Stainless Steel

Skip to the beginning of the images gallery

PROLOK Pin Hex Countersunk Machine Screw 304 Stainless Steel

Low Security ● ● ●

Pin Hex Countersunk offers low security, features with an internal pin in the hexagon to repel any standard tork tools. Countersunk head shape provides a clean and excellent visuals and safety benefit, seats flush into the material.

It requires a special driver to fix and tighten to desired torque.

SKU 7PHCM-304

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
10-24 x 3/8 PROLOK Pin Hex CSK Mach. Screw Gr304 From $111.60
10-24 x 1 PROLOK Pin Hex CSK Mach. Screw Gr304 From $120.10
M3 x 6 PROLOK Pin Hex CSK Mach. Screw Gr304 From $126.95
M3 x 10 PROLOK Pin Hex CSK Mach. Screw Gr304 From $132.75
M3 x 12 PROLOK Pin Hex CSK Mach. Screw Gr304 From $134.45
M3 x 16 PROLOK Pin Hex CSK Mach. Screw Gr304 From $137.60
M3 x 20 PROLOK Pin Hex CSK Mach. Screw Gr304 From $140.30
M4 x 6 PROLOK Pin Hex CSK Mach. Screw Gr304 From $60.70
M4 x 8 PROLOK Pin Hex CSK Mach. Screw Gr304 From $45.55
M4 x 10mm PROLOK Pin Hex CSK Mach. Screw Gr304 From $45.55
M4 x 12 PROLOK Pin Hex CSK Mach. Screw Gr304 From $48.55
M4 x 14 PROLOK Pin Hex CSK Mach. Screw Gr304 From $95.80
M4 x 16 PROLOK Pin Hex CSK Mach. Screw Gr304 From $48.55
M4 x 20 PROLOK Pin Hex CSK Mach. Screw Gr304 From $78.85
M4 x 25 PROLOK Pin Hex CSK Mach. Screw Gr304 From $78.85
M4 x 40 PROLOK Pin Hex CSK Mach. Screw Gr304 From $127.40
M4 x 50 PROLOK Pin Hex CSK Mach. Screw Gr304 From $291.25
M5 x 8 PROLOK Pin Hex CSK Mach. Screw Gr304 From $72.80
M5 x 10 PROLOK Pin Hex CSK Mach. Screw Gr304 From $45.55
M5 x 12 PROLOK Pin Hex CSK Mach. Screw Gr304 From $54.60
M5 x 16 PROLOK Pin Hex CSK Mach. Screw Gr304 From $60.70
M5 x 20 PROLOK Pin Hex CSK Mach. Screw Gr304 From $78.85
M5 x 25 PROLOK Pin Hex CSK Mach. Screw Gr304 From $97.10
M5 x 30 PROLOK Pin Hex CSK Mach. Screw Gr304 From $109.25
M5 x 40 PROLOK Pin Hex CSK Mach. Screw Gr304 From $184.55
M5 x 50 PROLOK Pin Hex CSK Mach. Screw Gr304 From $175.95
M5 x 60 PROLOK Pin Hex CSK Mach. Screw Gr304 From $241.45
M6 x 8 PROLOK Pin Hex CSK Mach. Screw Gr304 From $84.95
M6 x 10 PROLOK Pin Hex CSK Mach. Screw Gr304 From $54.60
M6 x 12 PROLOK Pin Hex CSK Mach. Screw Gr304 From $57.65
M6 x 16 PROLOK Pin Hex CSK Mach. Screw Gr304 From $60.70
M6 x 20 PROLOK Pin Hex CSK Mach. Screw Gr304 From $66.75
M6 x 25 PROLOK Pin Hex CSK Mach. Screw Gr304 From $72.80
M6 x 30 PROLOK Pin Hex CSK Mach. Screw Gr304 From $78.85
M6 x 40 PROLOK Pin Hex CSK Mach. Screw Gr304 From $84.95
M6 x 45 PROLOK Pin Hex CSK Mach. Screw Gr304 From $115.30
M6 x 50 PROLOK Pin Hex CSK Mach. Screw Gr304 From $115.30
M6 x 60 PROLOK Pin Hex CSK Mach. Screw Gr304 From $175.95
M6 x 75 PROLOK Pin Hex CSK Mach. Screw Gr304 From $296.60
M12 x 20 PROLOK Pin Hex CSK Mach. Screw Gr304 From $1,323.30
M12 x 25 PROLOK Pin Hex CSK Mach. Screw Gr304 From $1,345.70
M12 x 30 PROLOK Pin Hex CSK Mach. Screw Gr304 From $1,351.80
M12 x 40 PROLOK Pin Hex CSK Mach. Screw Gr304 From $1,359.15
M12 x 50 PROLOK Pin Hex CSK Mach. Screw Gr304 From $1,467.10
M12 x 60 PROLOK Pin Hex CSK Mach. Screw Gr304 From $1,754.70

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Security Level	Low Security
Tooling	Requires matching specialist insert driver bit for installation and removal.
Driver Type	Pin Hex Security Bit
Head Type	Countersunk
Diameter / Gauge	10g, M3, M4, M5, M6, M12
Material Grade	304 Stainless Steel

Technical Information

SKU	Item	Material	Drv Direction	Driver Type
1578.0052410	10-24 x 3/8	Gr304	2-WAY	H20-5/32"
1578.0052425	10-24 x 1	Gr304	2-WAY	H20-5/32"
1579.0030006	M3 x 6	Gr304	2-WAY	H2M
1579.0030010	M3 x 10	Gr304	2-WAY	H2M
1579.0030012	M3 x 12	Gr304	2-WAY	H2M
1579.0030016	M3 x 16	Gr304	2-WAY	H2M
1579.0030020	M3 x 20	Gr304	2-WAY	H2M
1579.0040006	M4 x 6	Gr304	2-WAY	H25M
1579.0040008	M4 x 8	Gr304	2-WAY	H25M
1579.0040010	M4 x 10	Gr304	2-WAY	H25M
1579.0040012	M4 x 12	Gr304	2-WAY	H25M
1579.0040014	M4 x 14	Gr304	2-WAY	H25M
1579.0040016	M4 x 16	Gr304	2-WAY	H40
1579.0040020	M4 x 20	Gr304	2-WAY	H25M
1579.0040025	M4 x 25	Gr304	2-WAY	H25M
1579.0040040	M4 x 40	Gr304	2-WAY	H25M
1579.0040050	M4 x 50	Gr304	2-WAY	H25M
1579.0050008	M5 x 8	Gr304	2-WAY	H3M
1579.0050010	M5 x 10	Gr304	2-WAY	H3M
1579.0050012	M5 x 12	Gr304	2-WAY	H3M
1579.0050016	M5 x 16	Gr304	2-WAY	H3M
1579.0050020	M5 x 20	Gr304	2-WAY	H3M
1579.0050025	M5 x 25	Gr304	2-WAY	H3M
1579.0050030	M5 x 30	Gr304	2-WAY	H3M
1579.0050040	M5 x 40	Gr304	2-WAY	H3M
1579.0050050	M5 x 50	Gr304	2-WAY	H3M
1579.0050060	M5 x 60	Gr304	2-WAY	H3M
1579.0060008	M6 x 8	Gr304	2-WAY	H4M
1579.0060010	M6 x 10	Gr304	2-WAY	H4M
1579.0060012	M6 x 12	Gr304	2-WAY	H4M
1579.0060016	M6 x 16	Gr304	2-WAY	H4M
1579.0060020	M6 x 20	Gr304	2-WAY	H4M
1579.0060025	M6 x 25	Gr304	2-WAY	H4M
1579.0060030	M6 x 30	Gr304	2-WAY	H4M
1579.0060040	M6 x 40	Gr304	2-WAY	H4M
1579.0060045	M6 x 45	Gr304	2-WAY	H4M
1579.0060050	M6 x 50	Gr304	2-WAY	H4M
1579.0060060	M6 x 60	Gr304	2-WAY	H4M
1579.0060075	M6 x 75	Gr304	2-WAY	H4M
1579.0120020	M12 x 20	Gr304	2-WAY	H8M
1579.0120025	M12 x 25	Gr304	2-WAY	H8M
1579.0120030	M12 x 30	Gr304	2-WAY	H8M
1579.0120040	M12 x 40	Gr304	2-WAY	H8M
1579.0120050	M12 x 50	Gr304	2-WAY	H8M
1579.0120060	M12 x 60	Gr304	2-WAY	H8M
