PROLOK Pin Hex Button Machine Screw 304 Stainless Steel

PROLOK Pin Hex Button Machine Screw 304 Stainless Steel

PROLOK Pin Hex Button Machine Screw 304 Stainless Steel

Low Security   ● ● ●

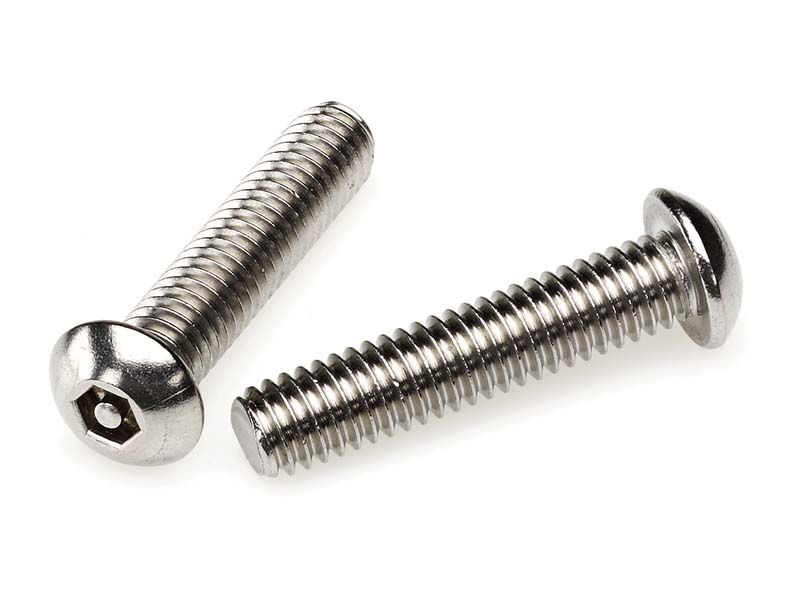

Pin Hex Button Sleeve Anchor offers low security, it features with an internal pin in the six-lobe recess to repel any standard hex tools. A button head offers a smooth rounded, aesthetically pleasing flush finish and leaves no threads protruding.

It requires a special driver to fix and tighten to desired torque.

SKU 7PHBM-304
Availability:
Pack:
Sub-total: / ex. gst.
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Security Level Low Security
Tooling Requires matching specialist insert driver bit for installation and removal.
Driver Type Pin Hex
Head Type Button
Diameter / Gauge M3, M4, M5, M6, M12
Material Grade 304 Stainless Steel
Technical Information
SKU Item Material Drv Direction Driver Type
7PHBM310M M3 x 10 Gr304 2-WAY H2M
7PHBM312M M3 x 12 Gr304 2-WAY H2M
7PHBM316M M3 x 16 Gr304 2-WAY H2M
7PHBM320M M3 x 20 Gr304 2-WAY H2M
7PHBM325M M3 x 25 Gr304 2-WAY H2M
7PHBM406M M4 x 6 Gr304 2-WAY H25M
7PHBM408M M4 x 8 Gr304 2-WAY H25M
7PHBM410M M4 x 10 Gr304 2-WAY H25M
7PHBM412M M4 x 12 Gr304 2-WAY H25M
7PHBM416M M4 x 16 Gr304 2-WAY H25M
7PHBM420M M4 x 20 Gr304 2-WAY H25M
7PHBM425M M4 x 25 Gr304 2-WAY H25M
7PHBM430M M4 x 30 Gr304 2-WAY H25M
7PHBM440M M4 x 40 Gr304 2-WAY H25M
7PHBM510M M5 x 10 Gr304 2-WAY H3M
7PHBM512M M5 x 12 Gr304 2-WAY H3M
7PHBM516M M5 x 16 Gr304 2-WAY H3M
7PHBM520M M5 x 20 Gr304 2-WAY H3M
7PHBM525M M5 x 25 Gr304 2-WAY H3M
7PHBM530M M5 x 30 Gr304 2-WAY H3M
7PHBM535M M5 x 35 Gr304 2-WAY H3M
7PHBM540M M5 x 40 Gr304 2-WAY H3M
7PHBM550M M5 x 50 Gr304 2-WAY H3M
7PHBM560M M5 x 60 Gr304 2-WAY H3M
7PHBM608M M6 x 8 Gr304 2-WAY H4M
7PHBM610M M6 x 10 Gr304 2-WAY H4M
7PHBM612M M6 x 12 Gr304 2-WAY H4M
7PHBM616M M6 x 16 Gr304 2-WAY H4M
7PHBM620M M6 x 20 Gr304 2-WAY H4M
7PHBM625M M6 x 25 Gr304 2-WAY H4M
7PHBM630M M6 x 30 Gr304 2-WAY H4M
7PHBM635M M6 x 35 Gr304 2-WAY H4M
7PHBM640M M6 x 40 Gr304 2-WAY H4M
7PHBM645M M6 x 45 Gr304 2-WAY H4M
7PHBM650M M6 x 50 Gr304 2-WAY H4M
7PHBM660M M6 x 60 Gr304 2-WAY H4M
7PHBM665M M6 x 65 Gr304 2-WAY H4M
7PHBM675M M6 x 75 Gr304 2-WAY H4M
7PHBM1220 M12 x 20 Gr304 2-WAY H8M
7PHBM1225 M12 x 25 Gr304 2-WAY H8M
7PHBM1230 M12 x 30 Gr304 2-WAY H8M
7PHBM1240 M12 x 40 Gr304 2-WAY H8M
7PHBM1250 M12 x 50 Gr304 2-WAY H8M
7PHBM1260 M12 x 60 Gr304 2-WAY H8M
