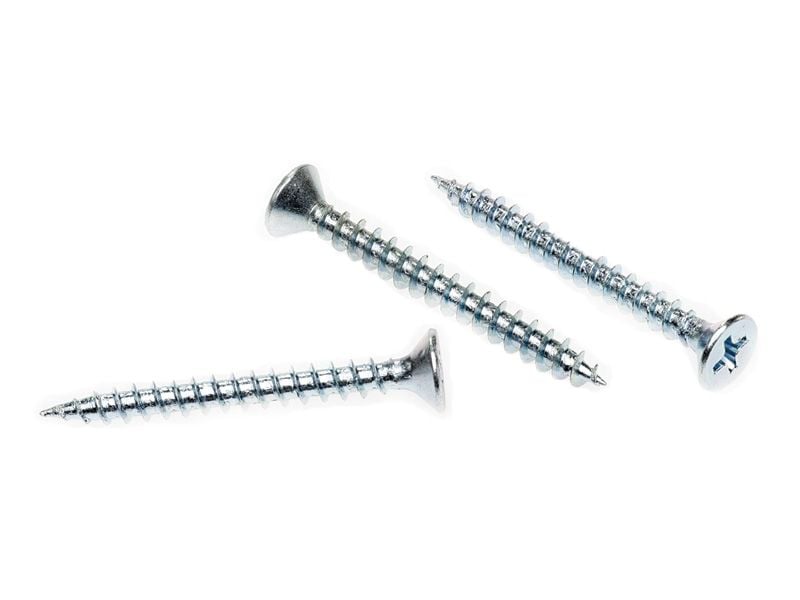

Particle Board Screws Zinc-Plated
Particle Board Screws Zinc-Plated
Particle board screws are a full length thread screw. The longer thread achieves greater engagement and higher pull out strength. Designed for composite timbers such as laminated particle board, craftwood or MDF.
Used by cabinet makers in domestic and commercial joinery
- Requires drilled countersunk holes for correct installation
- Phillips drive / countersunk
- Zinc plated for internal use
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: For composite timbers such as laminated particle board, craftwood or MDF.
- Driver Type: 4g (Philips P1), 5g,6g,8g,10g (Philips P2)
- Installation Speed: 2300-2500 RPM Max Drill Speed

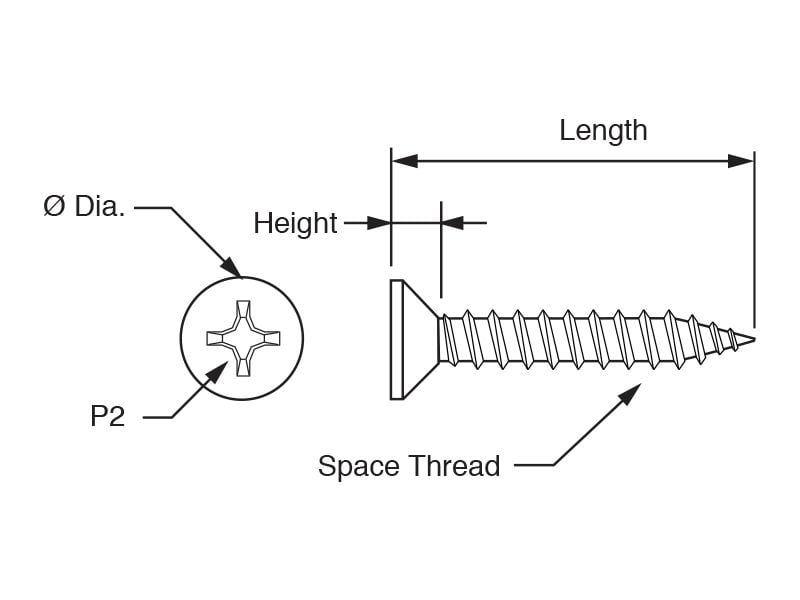

PHYSICAL CHARACTERISTICS
- Head Type: Countersunk
- Point Type: Needle
- Material: Carbon steel
- Finish: Zinc - yellow
- Head Dia: 4g (4.9mm), 5g (6.3mm), 6g (6.9mm), 8g (7.8mm), 10g (9.9mm)
- Head Height: 4g (2.5mm), 5g (3mm), 6g (3mm), 8g (4mm), 10g (5mm)
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Yellow |
| Material Grade | Carbon Steel |
| Head Type | Countersunk |
| Driver Type | Philips Bit |
| Diameter / Gauge | 4g, 5g, 6g, 8g, 10g |
| Point Type | Needle Point |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Gauge x Length |
|---|---|---|---|---|
| 1160.0040012 | 4 x 1/2 | Zinc Plated | No.1 | 4 x 1/2 |
| 1160.0040016 | 4 x 5/8 | Zinc Plated | No.1 | 4 x 5/8 |
| 1160.0050012 | 5 x 1/2 | Zinc Plated | No.2 | 5 x 1/2 |
| 1160.0050016 | 5 x 5/8 | Zinc Plated | No.2 | 5 x 5/8 |
| 1160.0060012 | 6 x 1/2 | Zinc Plated | No.2 | 6 x 1/2 |
| 1160.0060016 | 6 x 5/8 | Zinc Plated | No.2 | 6 x 5/8 |
| 1160.0060020 | 6 x 3/4 | Zinc Plated | No.2 | 6 x 3/4 |
| 1160.0060025 | 6 x 1 | Zinc Plated | No.2 | 6 x 1 |
| 1160.0060032 | 6 x 1-1/4 | Zinc Plated | No.2 | 6 x 1-1/4 |
| 1160.0060038 | 6 x 1-1/2 | Zinc Plated | No.2 | 6 x 1-1/2 |
| 1160.0080016 | 8 x 5/8 | Zinc Plated | No.2 | 8 x 5/8 |
| 1160.0080020 | 8 x 3/4 | Zinc Plated | No.2 | 8 x 3/4 |
| 1160.0080025 | 8 x 1 | Zinc Plated | No.2 | 8 x 1 |
| 1160.0080028 | 8 x 1-1/8 | Zinc Plated | No.2 | 8 x 1-1/8 |
| 1160.0080032 | 8 x 1-1/4 | Zinc Plated | No.2 | 8 x 1-1/4 |
| 1160.0080038 | 8 x 1-1/2 | Zinc Plated | No.2 | 8 x 1-1/2 |
| 1160.0080045 | 8 x 1-3/4 | Zinc Plated | No.2 | 8 x 1-3/4 |
| 1160.0080050 | 8 x 2 | Zinc Plated | No.2 | 8 x 2 |
| 1160.0080057 | 8 x 2-1/4 | Zinc Plated | No.2 | 8 x 2-1/4 |
| 1160.0080065 | 8 x 2-1/2 | Zinc Plated | No.2 | 8 x 2-1/2 |
| 1160.0100020 | 10 x 3/4 | Zinc Plated | No.2 | 10 x 3/4 |
