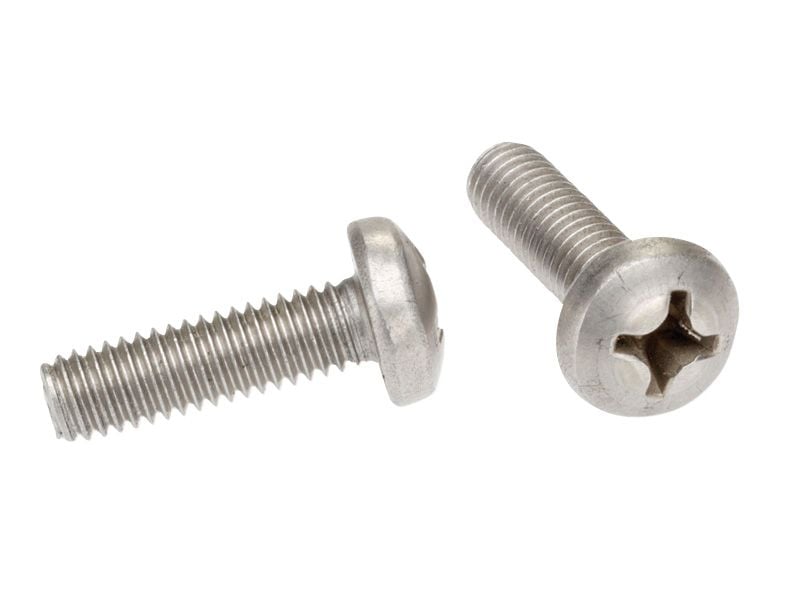

Pan Head Metal Threads Gr304 Stainless Steel Metric
Pan Head Metal Threads Gr304 Stainless Steel Metric
304 stainless steel metal threads (or machine screws) are not supplied with nuts. The metric thread allows these to be installed into pre thread component or other hardware assemblies.
304 stainless has great surface protective properties and should be used when exposed to wet areas or other stainless steel components.
Length is quoted from under the pan head.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 304 Stainless Steel |
| Coating & Plating | Plain / Unplated |
| Head Type | Pan |
| Driver Type | Philips Bit |
| Diameter / Gauge | M3, M4, M5, M6 |
| Thread Type | Metric |
Technical Information
| SKU | I.D (mm) | O.D (mm) | Description |
|---|---|---|---|
| 1523.0030006 | M3 | 6mm | M3 x 6mm |
| 1523.0030008 | M3 | 8mm | M3 x 8mm |
| 1523.0030010 | M3 | 10mm | M3 x 10mm |
| 1523.0030012 | M3 | 12mm | M3 x 12mm |
| 1523.0030016 | M3 | 16mm | M3 x 16mm |
| 1523.0030020 | M3 | 20mm | M3 x 20mm |
| 1523.0030025 | M3 | 25mm | M3 x 25mm |
| 1523.0030030 | M3 | 30mm | M3 x 30mm |
| 1523.0040006 | M4 | 6mm | M4 x 6mm |
| 1523.0040008 | M4 | 8mm | M4 x 8mm |
| 1523.0040010 | M4 | 10mm | M4 x 10mm |
| 1523.0040012 | M4 | 12mm | M4 x 12mm |
| 1523.0040016 | M4 | 16mm | M4 x 16mm |
| 1523.0040020 | M4 | 20mm | M4 x 20mm |
| 1523.0040025 | M4 | 25mm | M4 x 25mm |
| 1523.0040030 | M4 | 30mm | M4 x 30mm |
| 1523.0040040 | M4 | 40mm | M4 x 40mm |
| 1523.0040050 | M4 | 50mm | M4 x 50mm |
| 1523.0050008 | M5 | 8mm | M5 x 8mm |
| 1523.0050010 | M5 | 10mm | M5 x 10mm |
| 1523.0050012 | M5 | 12mm | M5 x 12mm |
| 1523.0050016 | M5 | 16mm | M5 x 16mm |
| 1523.0050020 | M5 | 20mm | M5 x 20mm |
| 1523.0050025 | M5 | 25mm | M5 x 25mm |
| 1523.0050030 | M5 | 30mm | M5 x 30mm |
| 1523.0050035 | M5 | 35mm | M5 x 35mm |
| 1523.0050040 | M5 | 40mm | M5 x 40mm |
| 1523.0050050 | M5 | 50mm | M5 x 50mm |
| 1523.0060008 | M6 | 8mm | M6 x 8mm |
| 1523.0060010 | M6 | 10mm | M6 x 10mm |
| 1523.0060012 | M6 | 12mm | M6 x 12mm |
| 1523.0060016 | M6 | 16mm | M6 x 16mm |
| 1523.0060020 | M6 | 20mm | M6 x 20mm |
| 1523.0060025 | M6 | 25mm | M6 x 25mm |
| 1523.0060030 | M6 | 30mm | M6 x 30mm |
| 1523.0060035 | M6 | 35mm | M6 x 35mm |
| 1523.0060040 | M6 | 40mm | M6 x 40mm |
