Pan Head Self Tapping Screws Zinc Plated

  • Home
  • Pan Head Self Tapping Screws Zinc Plated

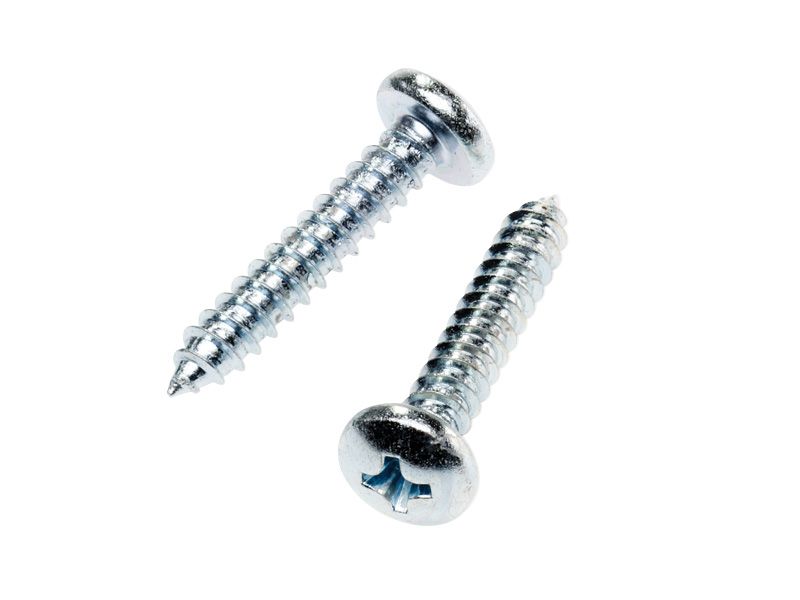

Pan Head Self Tapping Screws Zinc Plated

Head: Pan Head, Philips Drive
SKU 3A.001-A
Availability:
Pack:
Sub-total: / ex. gst.
Build A Quote?
Store Item
SKU:
Description

INSTALLATION

  • Drill Capacity: Soft timber, plywood, laminates, some plastics. Best for use in pre-drilled or punched holes in thin sheet metal.
  • Driver Type: 4g (Philips P1), 6-10g (Philips P2), 12g (Philips P3)
  • Installation Speed: N/A

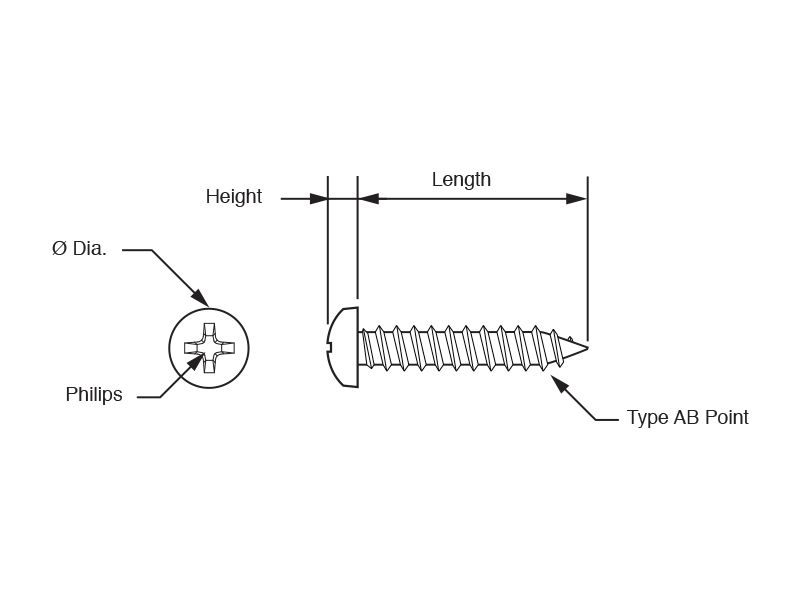

PHYSICAL CHARACTERISTICS

  • Head Type: Pan Head
  • Point Type: AB
  • Material: Carbon Steel
  • Finish: Zinc Plated
  • Head Dia: 4g (5.5mm), 6g (6.9mm), 8g (8.2mm), 10g (9.5mm), 12g (10.8mm)
  • Head Height: 4g (2mm), 6g (2.6mm), 8g (3.05mm), 10g (3.55mm), 12g (3.95mm)
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Coating & Plating Zinc Clear
Material Grade Carbon Steel
Head Type Pan
Driver Type Philips Bit
Diameter / Gauge 4g, 6g, 8g, 10g, 12g
Point Type Type AB (Gimlet Point)
Thread Type Self Tapping
Technical Information
SKU Gauge x Length Coating Driver Bit Gauge x Length
1182.0040006 4 x 1/4” Zinc Plated Ph1 4 x 1/4”
1182.0040010 4 x 3/8” Zinc Plated Ph1 4 x 3/8”
1182.0040012 4 x 1/2” Zinc Plated Ph1 4 x 1/2”
1182.0040016 4 x 5/8” Zinc Plated Ph1 4 x 5/8”
1182.0040020 4 x 3/4” Zinc Plated Ph1 4 x 3/4”
1182.0060006 6 x 1/4” Zinc Plated Ph2 6 x 1/4”
1182.0060010 6 x 3/8” Zinc Plated Ph2 6 x 3/8”
1182.0060012 6 x 1/2” Zinc Plated Ph2 6 x 1/2”
1182.0060016 6 x 5/8” Zinc Plated Ph2 6 x 5/8”
1182.0060020 6 x 3/4” Zinc Plated Ph2 6 x 3/4”
1182.0060025 6 x 1” Zinc Plated Ph2 6 x 1”
1182.0060032 6 x 1-1/4” Zinc Plated Ph2 6 x 1-1/4”
1182.0060038 6 x 1-1/2” Zinc Plated Ph2 6 x 1-1/2”
1182.0060050 6 x 2” Zinc Plated Ph2 6 x 2”
1182.0080010 8 x 3/8” Zinc Plated Ph2 8 x 3/8”
1182.0080012 8 x 1/2” Zinc Plated Ph2 8 x 1/2”
1182.0080016 8 x 5/8” Zinc Plated Ph2 8 x 5/8”
1182.0080020 8 x 3/4” Zinc Plated Ph2 8 x 3/4”
1182.0080025 8 x 1” Zinc Plated Ph2 8 x 1”
1182.0080032 8 x 1-1/4” Zinc Plated Ph2 8 x 1-1/4”
1182.0080038 8 x 1-1/2” Zinc Plated Ph2 8 x 1-1/2”
1182.0080045 8 x 1-3/4” Zinc Plated Ph2 8 x 1-3/4”
1182.0080050 8 x 2” Zinc Plated Ph2 8 x 2”
1182.0080065 8 x 2-1/2” Zinc Plated Ph2 8 x 2-1/2”
1182.0100012 10 x 1/2” Zinc Plated Ph2 10 x 1/2”
1182.0100016 10 x 5/8” Zinc Plated Ph2 10 x 5/8”
1182.0100020 10 x 3/4” Zinc Plated Ph2 10 x 3/4”
1182.0100025 10 x 1” Zinc Plated Ph2 10 x 1”
1182.0100032 10 x 1-1/4” Zinc Plated Ph2 10 x 1-1/4”
1182.0100038 10 x 1-1/2” Zinc Plated Ph2 10 x 1-1/2”
1182.0100045 10 x 1-3/4” Zinc Plated Ph2 10 x 1-3/4”
1182.0100050 10 x 2” Zinc Plated Ph2 10 x 2”
1182.0100065 10 x 2-1/2” Zinc Plated Ph2 10 x 2-1/2”
1182.0100075 10 x 3” Zinc Plated Ph2 10 x 3”
1182.0120016 12 x 5/8” Zinc Plated Ph3 12 x 5/8”
1182.0120020 12 x 3/4” Zinc Plated Ph3 12 x 3/4”
1182.0120025 12 x 1” Zinc Plated Ph3 12 x 1”
1182.0120032 12 x 1-1/4” Zinc Plated Ph3 12 x 1-1/4”
1182.0120038 12 x 1-1/2" Zinc Plated Ph3 12 x 1-1/2"
