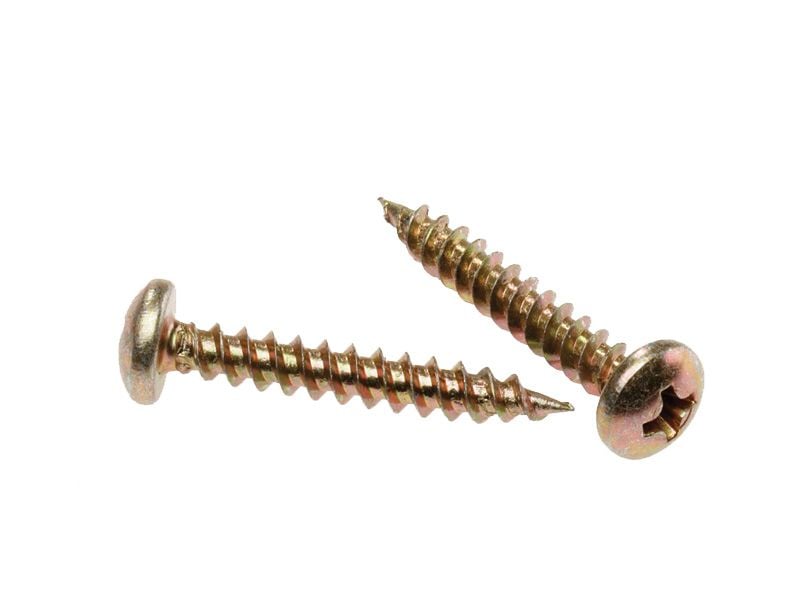

Pan Hd Fine Thread Needle Point Screws
Pan Hd Fine Thread Needle Point Screws
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: Suitable for use without pre-drilling in light gauge steel up to 0.6mm, timber and plasterboard. Pre-drilling may be necessary in Hardwood.
- Driver Type: Philips P2
- Installation Speed: 2300 – 2500 RPM Max Drill Speed

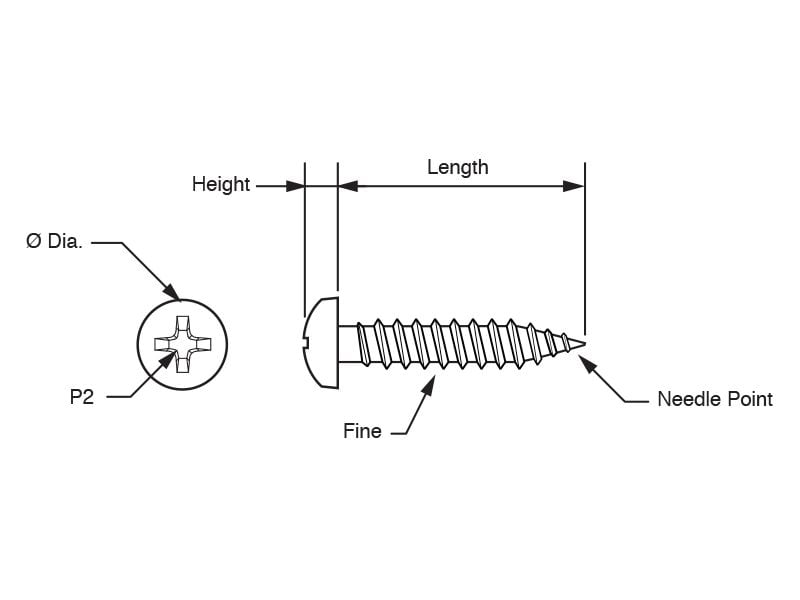

PHYSICAL CHARACTERISTICS
- Head Type: Pan Head
- Point Type: Needle
- Material: Carbon Steel
- Finish: Zinc - Yellow
- Head Dia: 6g - 6.8mm, 7g - 7.3mm
- Head Height: 6g - 2.5mm, 7g - 2.8mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Yellow |
| Material Grade | Carbon Steel |
| Head Type | Pan |
| Driver Type | Philips Bit |
| Diameter / Gauge | 6g, 7g |
| Point Type | Needle Point |
| Thread Type | Fine |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Gauge x Length |
|---|---|---|---|---|
| 1155.0060020 | 6-18 x 20mm | Zinc Yellow | Ph2 | 6-18 x 20mm |
| 1155.0060030 | 6-18 x 30mm | Zinc Yellow | Ph2 | 6-18 x 30mm |
| 1155.0060040 | 6-18 x 40mm | Zinc Yellow | Ph2 | 6-18 x 40mm |
| 1155.0060050 | 6-18 x 50mm | Zinc Yellow | Ph2 | 6-18 x 50mm |
| 1155.0070012 | 7-16 x 12mm | Zinc Yellow | Ph2 | 7-16 x 12mm |
| 1155.0070020 | 7-16 x 20mm | Zinc Yellow | Ph2 | 7-16 x 20mm |
| 1155.0070025 | 7-16 x 25mm | Zinc Yellow | Ph2 | 7-16 x 25mm |
| 1155.0070030 | 7-16 x 30mm | Zinc Yellow | Ph2 | 7-16 x 30mm |
| 1155.0070040 | 7-16 x 40mm | Zinc Yellow | Ph2 | 7-16 x 40mm |
| 1155.0070050 | 7-16 x 50mm | Zinc Yellow | Ph2 | 7-16 x 50mm |
