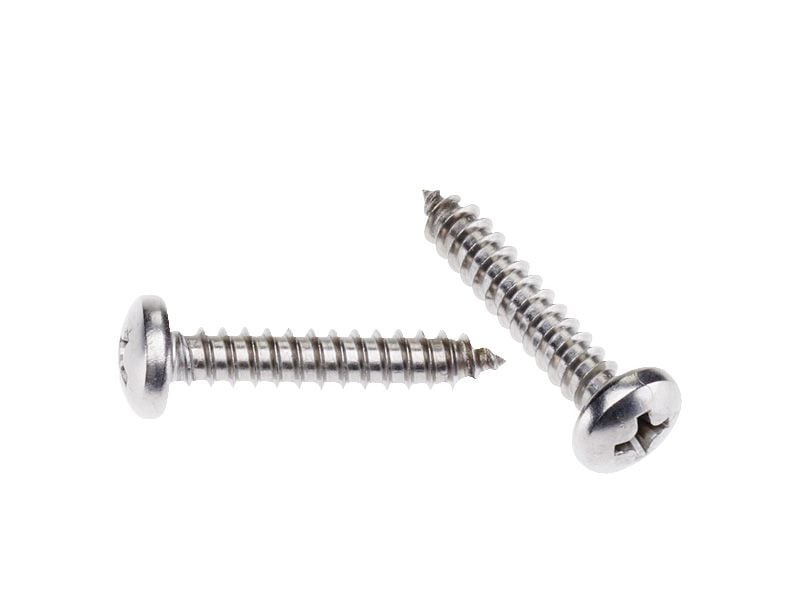

Pan Hd 304 Stainless Self Tapping Screws

Pan Hd 304 Stainless Self Tapping Screws

SKU 3F.001-A
Availability:
Pack:
Sub-total: / ex. gst.
Description

INSTALLATION

  • Drill Capacity: Soft timber, plywood, laminates, some plastics. Best for use in pre-drilled or punched holes in thin sheet metal.
  • Driver Type: 6-10g (Philips P2), 12-14g (Philips P3)
  • Installation Speed: N/A

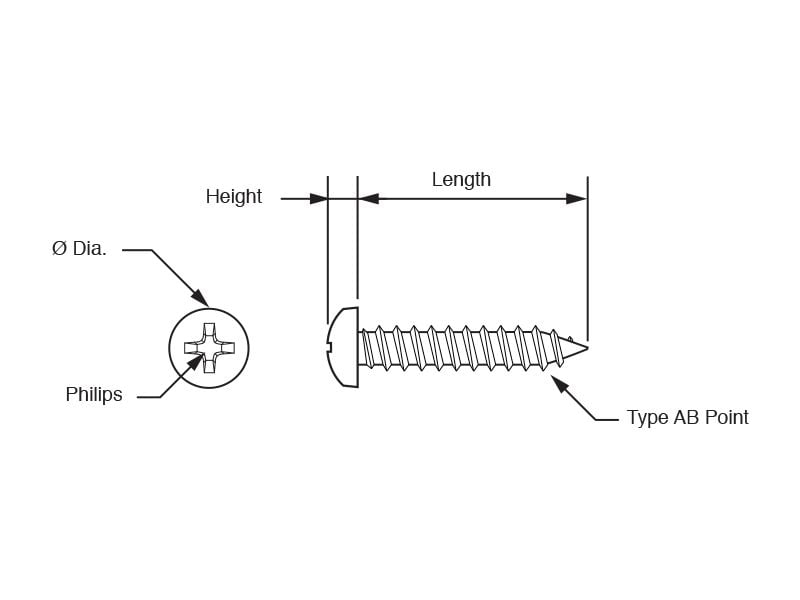

PHYSICAL CHARACTERISTICS

  • Head Type: Pan Head
  • Point Type: AB
  • Material: 304 Stainless Steel
  • Finish: N/A
  • Head Dia: 6g (6.9mm), 8g (8.2mm), 10g (9.5mm), 12g (10.8mm), 14g (12.5mm)
  • Head Height: 6g (2.6mm), 8g (3.05mm), 10g (3.55mm), 12g (3.95mm), 14g (4.55mm)
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Material Grade 304 Stainless Steel
Head Type Pan
Driver Type Philips
Diameter / Gauge 6g, 8g, 12g, 14g
Point Type Type AB (Gimlet Point)
Thread Type Self Tapping
Technical Information
SKU Gauge x Length Material Driver Bit Gauge x Length
3SPUS06010 6 x 3/8” Gr304 Ph2 6 x 3/8”
3SPUS06012 6 x 1/2” Gr304 Ph2 6 x 1/2”
3SPUS06016 6 x 5/8” Gr304 Ph2 6 x 5/8”
3SPUS06020 6 x 3/4” Gr304 Ph2 6 x 3/4”
3SPUS06025 6 x 1” Gr304 Ph2 6 x 1”
3SPUS06032 6 x 1-1/4” Gr304 Ph2 6 x 1-1/4”
3SPUS06038 6 x 1-1/2” Gr304 Ph2 6 x 1-1/2”
3SPUS08012 8 x 1/2” Gr304 Ph2 8 x 1/2”
3SPUS08016 8 x 5/8” Gr304 Ph2 8 x 5/8”
3SPUS08020 8 x 3/4” Gr304 Ph2 8 x 3/4”
3SPUS08025 8 x 1” Gr304 Ph2 8 x 1”
3SPUS08032 8 x 1-1/4” Gr304 Ph2 8 x 1-1/4”
3SPUS08038 8 x 1-1/2” Gr304 Ph2 8 x 1-1/2”
3SPUS08045 8 x 1-3/4” Gr304 Ph2 8 x 1-3/4”
3SPUS08050 8 x 2” Gr304 Ph2 8 x 2”
3SPUS10012 10 x 1/2” Gr304 Ph2 10 x 1/2”
3SPUS10016 10 x 5/8” Gr304 Ph2 10 x 5/8”
3SPUS10020 10 x 3/4” Gr304 Ph2 10 x 3/4”
3SPUS10025 10 x 1” Gr304 Ph2 10 x 1”
3SPUS10032 10 x 1-1/4” Gr304 Ph2 10 x 1-1/4”
3SPUS10038 10 x 1-1/2” Gr304 Ph2 10 x 1-1/2”
3SPUS10045 10 x 1-3/4” Gr304 Ph2 10 x 1-3/4”
3SPUS10050 10 x 2” Gr304 Ph2 10 x 2”
3SPUS10065 10 x 2-1/2” Gr304 Ph2 10 x 2-1/2”
3SPUS10075 10 x 3” Gr304 Ph2 10 x 3”
3SPUS12016 12 x 5/8” Gr304 Ph3 12 x 5/8”
3SPUS12020 12 x 3/4” Gr304 Ph3 12 x 3/4”
3SPUS12032 12 x 1-1/4” Gr304 Ph3 12 x 1-1/4”
3SPUS12038 12 x 1-1/2” Gr304 Ph3 12 x 1-1/2”
3SPUS12050 12 x 2” Gr304 Ph3 12 x 2”
3SPUS14020 14 x 3/4” Gr304 Ph3 14 x 3/4”
3SPUS14025 14 x 1” Gr304 Ph3 14 x 1”
3SPUS14032 14 x 1-1/4” Gr304 Ph3 14 x 1-1/4”
3SPUS14038 14 x 1-1/2” Gr304 Ph3 14 x 1-1/2”
3SPUS14050 14 x 2” Gr304 Ph3 14 x 2”
3SPUS14075 14 x 3” Gr304 Ph3 14 x 3”
