10g-16 Metal SD Screws Colorbond® Sealing Washer
10g-16 Metal SD Screws Colorbond® Sealing Washer
CLEARANCE ITEM | LIMITED STOCK

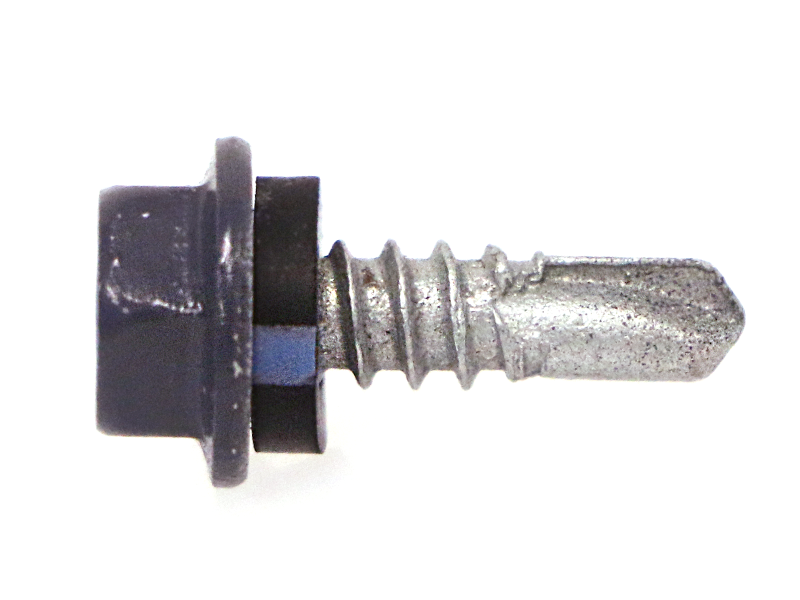

COLORBOND® 10g Metal Self Drilling Screws
Self drilling point that will drill and thread without the need for pre-drilling.
- Class 3 mechanically galvanised as per AS3566.2
- Excellent corrosion resistance
- Assembled with neoprene sealing washer
- Complete compatibility with zinc and Colorbond® coated sheets
- 5/16" hex head
- 0.75- 3.5mm drill range (metal)
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 0.75-3.5mm of Steel
- Driver Type: 5/16 Hex Socket
- Installation Speed: 2300-2500 RPM Max Drill Speed
PHYSICAL CHARACTERISTICS
- Head Type: Hex
- Point Type: Self Drilling
- Material: Carbon Steel
- Finish: Class 3 Mechanical Galvanised
- Head Dia: 11.2mm
- Head Height: 4.7mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Class 3 (Mech. Gal) |
| Material Grade | Carbon Steel |
| Head Type | Hex Sealing Washer |
| Driver Type | Hex Sockets |
| Diameter / Gauge | 10g |
| Point Type | Drill Point No.3 |
| Thread Type | Coarse |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Driver Bit | Drill Range | Description |
|---|---|---|---|---|
| 1110.0101601 | 10-16 x 16mm Basalt | 10-16 x 16mm Metal SD Screws Basalt | ||
| 1110.0101602 | 10-16 x 16mm Classic Cream | 10-16 x 16mm Metal SD Screws Classic Cream | ||
| 1110.0101603 | 10-16 x 16mm Cottage Green | 10-16 x 16mm Metal SD Screws Cottage Green | ||
| 1110.0101604 | 10-16 x 16mm Deep Ocean | 10-16 x 16mm Metal SD Screws Deep Ocean | ||
| 1110.0101605 | 10-16 x 16mm Dune | 10-16 x 16mm Metal SD Screws Dune | ||
| 1110.0101606 | 10-16 x 16mm Gully | 10-16 x 16mm Metal SD Screws Gully | ||
| 1110.0101607 | 10-16 x 16mm Ironstone | 10-16 x 16mm Metal SD Screws Ironstone | ||
| 1110.0101609 | 10-16 x 16mm Monument | 10-16 x 16mm Metal SD Screws Monument | ||
| 1110.0101610 | 10-16 x 16mm Manor Red | 10-16 x 16mm Metal SD Screws Manor Red | ||
| 1110.0101612 | 10-16 x 16mm Night Sky | 10-16 x 16mm Metal SD Screws Night Sky | ||
| 1110.0101613 | 10-16 x 16mm Paperbark | 10-16 x 16mm Metal SD Screws Paperbark | ||
| 1110.0101614 | 10-16 x 16mm Pale Eucalypt | 10-16 x 16mm Metal SD Screws Pale Eucalypt | ||
| 1110.0101615 | 10-16 x 16mm Shale Grey | 10-16 x 16mm Metal SD Screws Shale Grey | ||
| 1110.0101619 | 10-16 x 16mm Woodland Grey | 10-16 x 16mm Metal SD Screws Woodland Grey | ||
| 1110.0101620 | 10-16 x 16mm Wilderness | 10-16 x 16mm Metal SD Screws Wilderness | ||
| 1110.0101621 | 10-16 x 16mm Windspray | 10-16 x 16mm Metal SD Screws Windspray |
