NexGen2® Blind Bolt Installation Tool

NexGen2® Blind Bolt Installation Tool

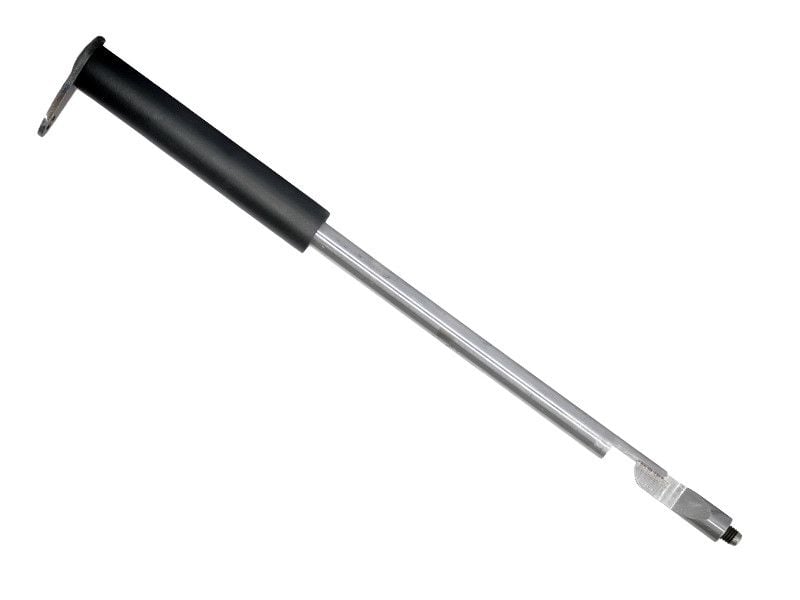

The patented installation tool is critical part of the NexGen2® blind bolt system. The tool initiates the correct installation of the NG2® bolt assemblies by hand before correct tension is applied using the appropriate torque wrench.

The NG2® installation tool allows for the collapsible washer and bolt head to be inserted through the fixture hole, rotated and seated correctly against the inner side of the structure.

Rent Me!

$265.80
  • Buy 5 for $255.20 each and save 4%
  • Buy 10 for $244.55 each and save 8%
Order Here
Item Unit(s) EX.GST QTY
Item Pack Qty.- $ Ex. GST -
BoxVOLUME DISCOUNT:
Close
Qty.
Product List
SKU Item Bx. Qty. Crt. Qty.
SKU 12NG2-IT Item NexGen2 Installation Tool Bx. Qty. 1 Crt. Qty. -

Installation Guide for NexGen2™ Blind Bolt Assembly

1. Setup Tool:

  • Attach the pre-assembled NG2 bolt to the tool using the internal threaded spline tip
  • Slide the nut, face washer and the spring shear sleeve along the handle of the tool
  • Move the collapsible washer to the correct location on the tool and fold in place

2. Pre-Tension Installation:

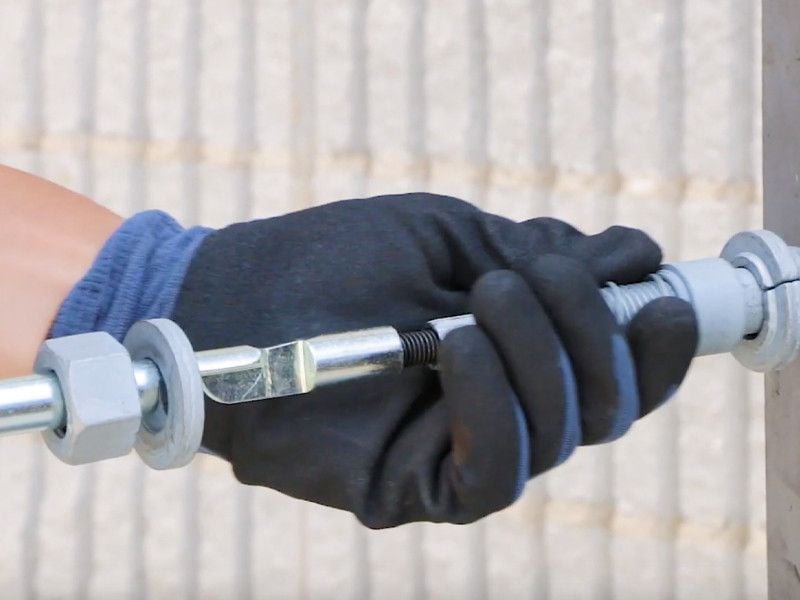

  • Insert the bolt through a 30mm hole followed by the collapsible washer
  • In a single action rotate the tool 180° pulling back, rocking the tool side-to-side to engage the collapsible washer
  • While still holding the bolt in place slide the spring shear sleeve into the shear plane area
  • Slide the face washer forward and move the nut up to fasten the bolt
  • Hand tighten the nut making sure the bolt is secure and will not spine
  • The tool can now be detached, rotate counterclockwise

3. Final Tension:

  • Using the shear wrench, engage the outer socket with the spline end of the bolt
  • Pull the trigger until correct tension has been achieved and the bolt spline separates from the bolt
  • Remove tool and press the small trigger on the shear wrench to eject the bolt spline
  • The application is now complete.

Ask About Our NexGen2™ Blind Bolts

Have questions about these products and their applications? Feel free to get in touch with us. For the quality blind bolts and oneside fastening see Allfasteners, Australia’s place for All Things Fixings.
