10mm Metal Frame Anchors for window installation.

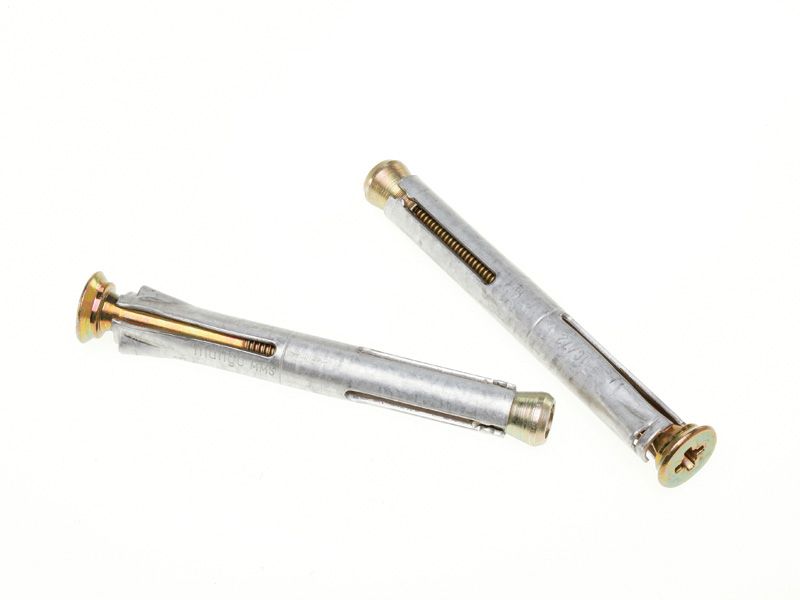

MFA-Z 10mm Metal Frame Anchors
These simple to install metal frame anchors are made from carbon steel with zinc protective coating. Widely used for installation of window and door frames, the thread pin and expansion sleeve is desgined to anchor across the hollow metal frame and concrete wall material.
Suitable for installation into concrete, sold brick and vertically perforated block. Anchors are inserted through a 10mm hole, drilled 10mm deeper then the effective anchor length. And secured with a philips drive making for no fuss, quick and easy installation.
- Head diameter: 13mm
- Driver type: Pozi 2
- Anchor diameter: 10mm
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Coating & Plating | Zinc Clear |
| Head Type | Countersunk |
| Driver Type | Pozi Drive Bit |
| Diameter / Gauge | 10.0mm |
| For use with | Concrete, Hardwood, Masonry Solid Block, Timber |
| Setting Conditions | Through Fixture |
| Use for | Facade & Cladding, Window & Door Framing |
Technical Information
| SKU | Dia. x Length | Fixture Max. | Min. Base Material Thickness | Min. Edge Distance |
|---|---|---|---|---|
| 1031.0100090 | 10 x 90mm | 30mm | 80mm | 45mm |
| 1031.0100110 | MFA-Z 10 x 110mm | 50mm | 45mm | 45mm |
| 1031.0100130 | MFA-Z 10 x 130mm | 70mm | 80mm | 45mm |
| 1031.0100150 | MFA-Z 10 x 150mm | 90mm | 80mm | 45mm |
