Secure your fixing to any form of masonry with torx concrete screws.

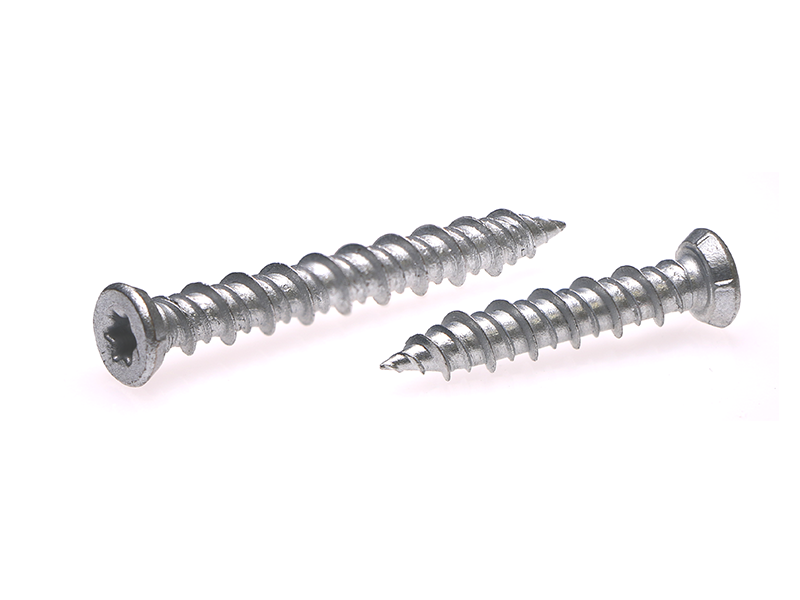

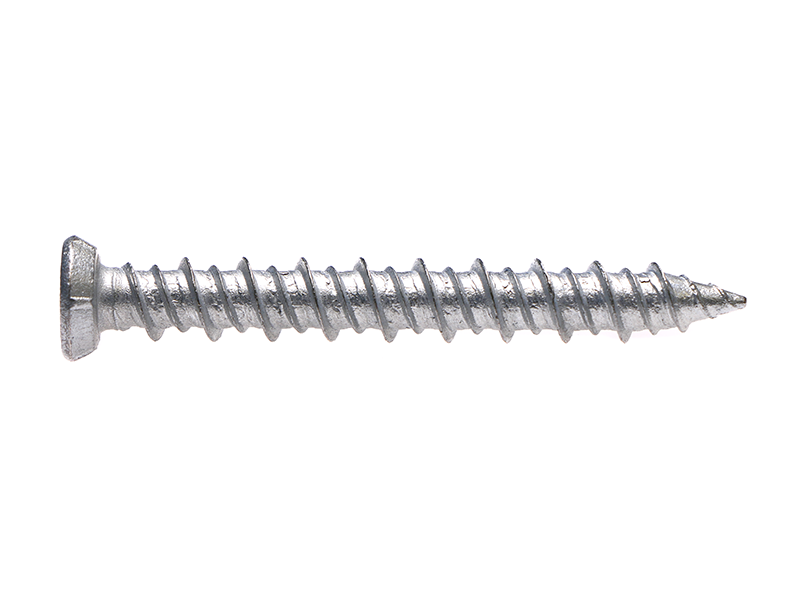

Masonry Torx Screw Galvanised Countersunk

Red line deal on masonry torx screws simply order 5,000 from the listed sizes and we'll throw in a DJI TELLO Drone valued at $230 RRP* for FREE!

Bonus items will added to your cart automatically when you reach the threshold. Tier pricing applies so you get the best possible price.

The unique undercut head design and a torx drive recess for positive installation performance is ideal for securing metal fixtures against hard surfaces buy pulling flat against the surface.

If you need a screw for masonry that features a tamper-resistant head for added security, look to torx concrete screws – also known as masonry torx screws.

*Valid until 30 Nov 2019

BULK BUY SAVINGS
SHIPS IN 1 - 2 DAYS
$35.25
  • Buy 5 for $31.70 each and save 11%
  • Buy 10 for $25.80 each and save 27%
$36.75
  • Buy 5 for $33.10 each and save 10%
  • Buy 10 for $27.00 each and save 27%
$38.25
  • Buy 5 for $34.50 each and save 10%
  • Buy 10 for $28.10 each and save 27%
$48.35
  • Buy 5 for $43.45 each and save 11%
  • Buy 10 for $35.45 each and save 27%
$59.90
  • Buy 5 for $53.95 each and save 10%
  • Buy 10 for $43.95 each and save 27%
$90.45
  • Buy 5 for $75.35 each and save 17%
  • Buy 10 for $69.60 each and save 24%
Order Here
Dia. x Length Pre-Drill Unit(s) EX.GST QTY
Dia. x Length Pre-Drill 6.0mm Pack Qty.- $ Ex. GST -
BoxVOLUME DISCOUNT:
Close
Qty.
Add line
Product List
SKU Description Drill Dia. Fixture Max. Bx. Qty. Crt. Qty.
SKU 1CCT1C407.5040 Description 7.5 x 40mm Drill Dia. 6mm Fixture Max. 5mm Bx. Qty. 100 Crt. Qty. 1000
SKU 1CCT1C407.5050 Description 7.5 x 50mm Drill Dia. 6mm Fixture Max. 15mm Bx. Qty. 100 Crt. Qty. 1000
SKU 1CCT1C407.5060 Description 7.5 x 60mm Drill Dia. 6mm Fixture Max. 25mm Bx. Qty. 100 Crt. Qty. 1000
SKU 1CCT1C407.5080 Description 7.5 x 80mm Drill Dia. 6mm Fixture Max. 30mm Bx. Qty. 100 Crt. Qty. 1000
SKU 1CCT1C407.5100 Description 7.5 x 100mm Drill Dia. 6mm Fixture Max. 50mm Bx. Qty. 100 Crt. Qty. 1000
SKU 1CCT1C407.5120 Description 7.5 x 120mm Drill Dia. 6mm Fixture Max. 70mm Bx. Qty. 100 Crt. Qty. 1000
Downloads
SHARE Share
SHARE Share

Why Masonry Torx Screws?

MasonryTorx Screws

The masonry torx screw offers quick and effective light duty anchoring solution for fixing into multiple materials such as concrete, brick, stone, concrete block and wood. The hi-lo thread configuration taps its own thread within a pre-drilled whole in the substrate material allowing for adjustment and accurate installation. Ideal for window, door, subsill frame installation against masonry and many other applications.

The undercut nibbed head of torx concrete screws also creates its own countersink hole as the torx fastener is driven in – this saves a lot of time. Just one predrilled hole, and drive the screw in. It is then immediately secured and countersunk for a clean finish.

USE

  • One screw for subsill and frame installation
  • Timber battens to masonry
  • Top-hat installation on masonry
  • Metal brackets, plates, and hinges to masonry
  • Door and window frame installation screw

KEY FEATURES

  • Flat countersunk head with five locking ribs for self-embedding in timber applications
  • Shallow flat undercut head means you can also install in non-countersunk metal to masonry application
  • Non-expanding anchor, close to edge fixing
  • Hi-lo cutting threads achieve optimum insertion into all masonry types
  • Suitable for concrete, solid brick, perforated brick, hollow blocks, natural stone
  • Mechanical Galvanized Class 3 finish. Minimum 20uM thickness

Ask About Our Torx Concrete Screws

Enquiries about these products and their applications? Feel free to get in touch with us. For the best quality torx concrete screws—like this masonry torx screw—see Allfasteners, Australia’s place for All Things Fixings. And take advantage of our market-leading shipping deals – for all of the nation.
