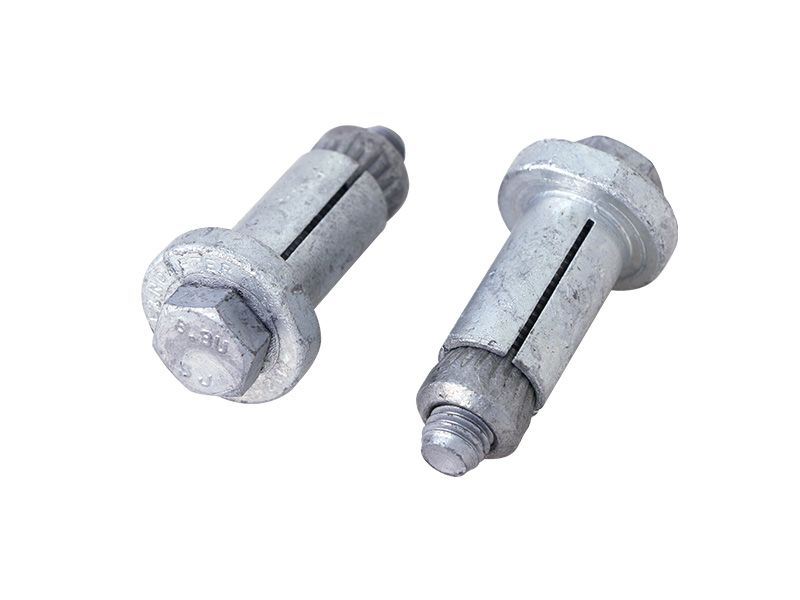

M10 Hollo-Bolt® Structural Expansion Bolt
M10 Hollo-Bolt® Structural Expansion Bolt

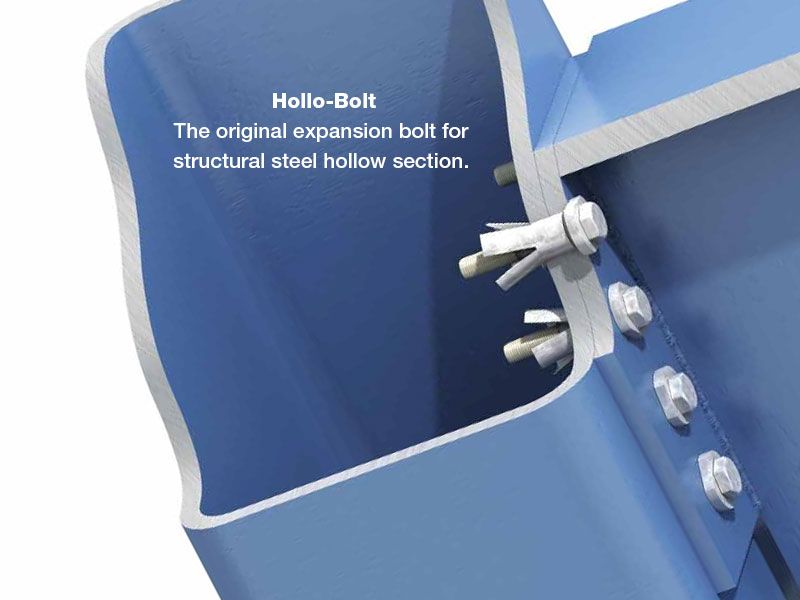

The M10 Hollo Bolt® is far more effective than using brackets or strapping with structural hollow section (SHS) which can be time consuming. The Hollo Bolt® expansion bolt design is a blind fastening system only requiring access to one side, the bolt is simply inserted through pre drilled holes and tightened with a torque wrench.
- 8.8 grade hi tensile steel
- Hot dipped galvanised
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
National Standards
Design to AS 4100 / NZS 3404 (Steel Structures) and ETA and ICC product certification.
Drill Preparation
Ensure that holes are drilled in both the fixture and the section according to the drilling guidance below. Please note that clearance holes are slightly larger than standard bolt clearance holes to accommodate the sleeve and cone.
Installation
- Align pre-drilled fixture and section and insert Hollo-Bolt*.
- Grip the Hollo-Bolt collar with an open ended spanner.
- Using a torque wrench, tighten the central bolt to the recommended torque**.
*Before tightening, ensure that the materials that are to be connected together are touching.
**See product brochure for correct tightening torque. Power tools, such as an impact wrench, may be used to speed up the tightening of the Hollo-Bolt. However, when using power tools, always complete the tightening process with a torque wrench to ensure the correct torque is applied to the Hollo-Bolt.
Hollo-Bolt® and Lindapter® is a registered trademark of Lindapter International.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 3 - 5 DAYS |
|---|---|
| Material Grade | 8.8 Hi-Tensile Steel |
| Coating & Plating | Hot Dipped Galvanised (HDG) |
| Head Type | Hexagonal |
| Driver Type | Hex Sockets |
Technical Information
| SKU | Size | Clamping Thickness | Clamping Thickness | Clearance Dia. | Item |
|---|---|---|---|---|---|
| 1476.0100055 | M10 x 55mm | 3 - 22 mm | 3 - 22 mm | 18 mm (+1.0 / -0.2) | M10 x 55mm Hollo-Bolt HDG |
| 1476.0100070 | M10 x 70mm | 22 - 41 mm | 22 - 41 mm | 18 mm (+1.0 / -0.2) | M10 x 70mm Hollo-Bolt HDG |
| 1476.0100090 | M10 x 90mm | 41 - 60 mm | 41 - 60 mm | 18 mm (+1.0 / -0.2) | M10 x 90mm Hollo-Bolt HDG |
