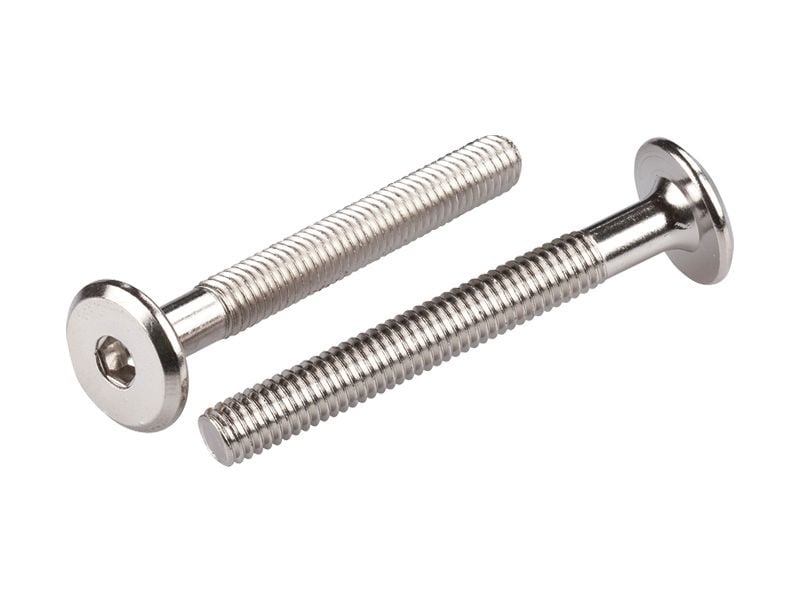

Joint Connector Bolts JCB 6mm Furniture Bolt
Joint Connector Bolts JCB 6mm Furniture Bolt
These JCB bolts have an M6 thread compatible with nickel plated JCB M6 (6mm) Connector Nuts featuring identical head size. Installed with a 4mm hex (allen) key.
JCB bolts are know available in stainless steel, click here.
Please be aware our quoted lengths measure from under the head to the end of the thread.
Also available as a JCB-W Woodscrew.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description

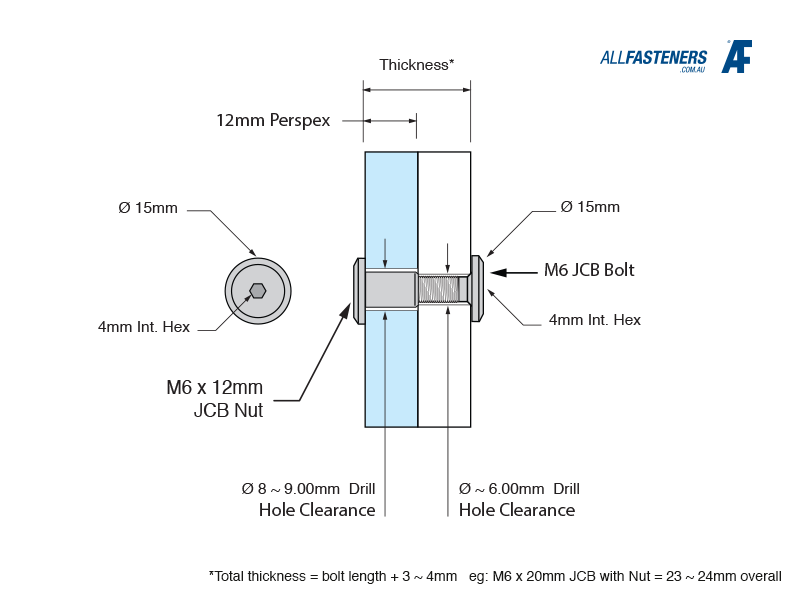

How to use JCB nut with connector bolts.
The JCB nut is 12mm measured from under the head to the end of the barrel. The barrel features roughly about 8mm of internal thread, these means it will add approximately 3 to 4mm to your selected bolt length.
What is a JCB bolt?
Similar to 'sex bolts' or 'chicago screws' which are common in book binding applications. This JCB type of fasteners is mostly commonly used among the furniture industry, it has compatible nut which resembles a barrel shaped flange with a protruding boss that is internally threaded. The boss (connector nut) sits within the two joining pieces.
A popular bolt and nut option as the head on both sides of the join sit almost flush with the surface (head height is about 2-3mm).
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Coating & Plating | Nickel Plated |
| Head Type | Flat Top |
| Driver Type | Hex Bit (Internal Hex) |
| Diameter / Gauge | M6, M10 |
| Thread Type | Metric |
Technical Information
| SKU | Item | Finish | Driver Bit | Finish | Dia x Length |
|---|---|---|---|---|---|
| 1760.0060012 | M6 x 12mm | Nickel Plated | 4mm | Nickel Plated | M6 x 12mm |
| 1760.0060016 | M6 x 16mm | Nickel Plated | M6 x 16mm | ||
| 1760.0060020 | M6 x 20mm | Nickel Plated | M6 x 20mm | ||
| 1760.0060025 | M6 x 25mm | Nickel Plated | M6 x 25mm | ||
| 1760.0060030 | M6 x 30mm | Nickel Plated | M6 x 30mm | ||
| 1760.0060035 | M6 x 35mm | Nickel Plated | M6 x 35mm | ||
| 1760.0060040 | M6 x 40mm | Nickel Plated | M6 x 40mm | ||
| 1760.0060045 | M6 x 45mm | Nickel Plated | M6 x 45mm | ||
| 1760.0060050 | M6 x 50mm | Nickel Plated | M6 x 50mm | ||
| 1760.0060055 | M6 x 55mm | Nickel Plated | M6 x 55mm | ||
| 1760.0060060 | M6 x 60mm | Nickel Plated | M6 x 60mm | ||
| 1760.0060065 | M6 x 65mm | Nickel Plated | M6 x 65mm | ||
| 1760.0060070 | M6 x 70mm | Nickel Plated | M6 x 70mm | ||
| 1760.0060075 | M6 x 75mm | Nickel Plated | M6 x 75mm | ||
| 1760.0060080 | M6 x 80mm | Nickel Plated | M6 x 80mm | ||
| 1760.0060085 | M6 x 85mm | Nickel Plated | M6 x 85mm | ||
| 1760.0060100 | M6 x 100mm | Nickel Plated | M6 x 100mm | ||
| 1760.0060110 | M6 x 110mm | Nickel Plated | M6 x 110mm |
