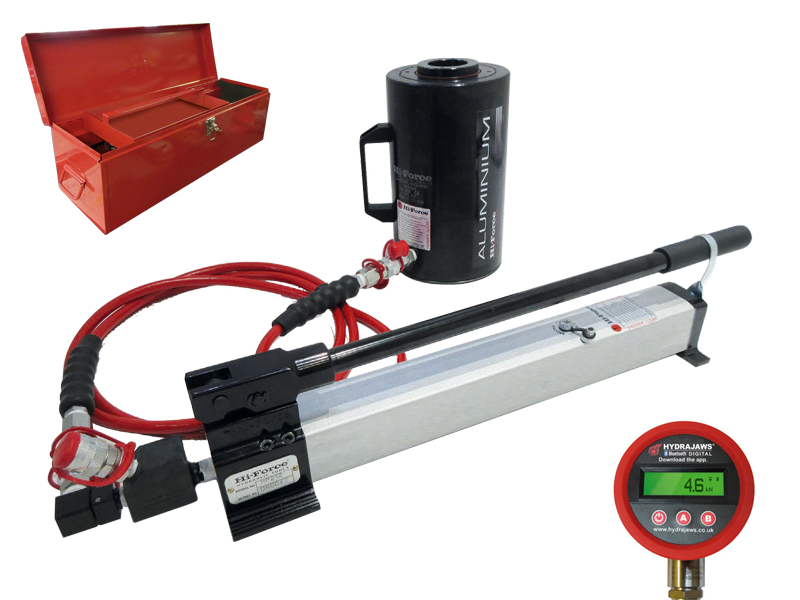

500kN 156mm Stroke Hydraulic Cylinder & Hand Pump Kit HYDRAJAWS®

500kN 156mm Stroke Hydraulic Cylinder & Hand Pump Kit HYDRAJAWS®

Hydrajaws® hydraulic hand pump offers two speed operation, supplied complete with a pre-filled oil reservoir, ready for immediate use. Kitted with a single acting cylinder with a maximum working pressure of 700 bar. Low handle effort characteristics for easy operation and lightweight design.

The ideal solution for a completely independent portable system requiring hydraulic power.

All kits are ready to use and include single-acting cylinder, two-speed pump, 3.0m hose, calibrated Hydrajaws® Bluetooth® gauge with gauge adaptor.

Order Here
Item Cyl. Cap. Unit(s) EX.GST QTY
Item Cyl. Cap. 500kN Pack Qty.- $ Ex. GST -
Product List
SKU Item Max. Press. Cyl. Cap. Bx. Qty. Crt. Qty.
SKU 13HJ080-003 Item Hydraulic Hand Pump Tester Max. Press. 700bar Cyl. Cap. 500kN Bx. Qty. 1 Crt. Qty.

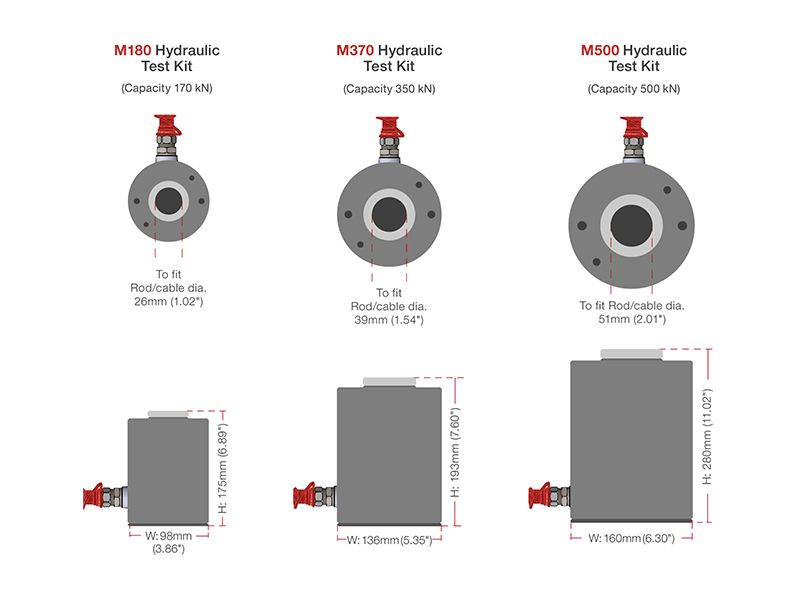

The kit features a 500 kN capacity cylinder with a hollow piston to enable a rod or cable to be passed through the entire cylinder length making it suitable for applications where a pulling force is required. The single acting hollow piston aluminium cylinder is supplied with a hardened anodised piston rod and cylinder body and a steel cylinder base protection plate.


Single Acting Hollow Piston Cylinder

  • Maximum Operating Pressure (bar): 700
  • Cylinder Capacity Advance (kN): 500
  • Stroke (mm): 156
  • Collapsed Height (mm):
  • Oil Capacity (cm³): 765
  • Cylinder Effective Area (cm²): 72.8
  • Weight (kg): 13.4

Two Stage Hand Operated Pump for Single Acting Cylinder

  • Maximum Operating Pressure (bar): 700
  • Pressure Rating 1st Stage (bar):
  • Pressure Rating 2nd Stage (bar):
  • Cylinder Compatibility: Single-acting
  • Pump Type: Two Speed
  • Reservoir Capacity (cm³):
  • Usable Oil Capacity (litres): 1
  • Maximum Flow at Rated Pressure:
  • Oil Displacement Per Stroke (cm³):     -
  • Oil Displacement Per Stroke 1st Stage (cm³): 12.9
  • Oil Displacement Per Stroke 2nd Stage (cm³): 2.3
  • Maximum Handle Effort (kg): 40
  • Piston Stroke (mm):
  • Valve Operation:  Manual 2-Way
  • Power Source: Manual
  • Weight (kg): 4.0
