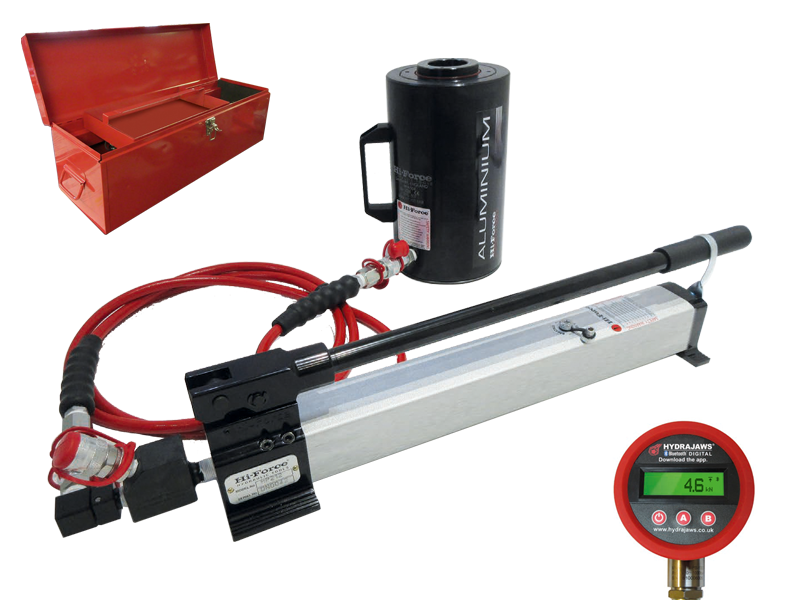

180kN 51mm Stroke Hydraulic Cylinder & Hand Pump Kit HYDRAJAWS®

180kN 51mm Stroke Hydraulic Cylinder & Hand Pump Kit HYDRAJAWS®

The kit features a 370 kN cylinder with a hollow piston to enable a rod or cable to be passed through the entire cylinder length making it suitable for applications where a pulling force is required. The single acting hollow piston aluminium cylinder is supplied with a hard anodised piston rod and cylinder body and a steel cylinder base protection plate.

The ideal solution for a completely independent portable system requiring hydraulic power.

All kits are ready to use and include single-acting cylinder, two-speed pump, 3.0m hose, calibrated Hydrajaws® Bluetooth® gauge with gauge adaptor.

SPECIAL ORDER
SHIPS 6 - 8 WEEKS
$6,260.00
Order Here
Item Cyl. Cap. Unit(s) EX.GST QTY
Item Cyl. Cap. 180kN Pack Qty.- $ Ex. GST -
BoxVOLUME DISCOUNT:
Close
Qty.
Product List
SKU Item Max. Press. Cyl. Cap. Bx. Qty. Crt. Qty.
SKU 13HJ080-001 Item Hydraulic Hand Pump Tester Max. Press. 700bar Cyl. Cap. 180kN Bx. Qty. 1 Crt. Qty.

The kit features a 370 kN capacity cylinder with a hollow piston to enable a rod or cable to be passed through the entire cylinder length making it suitable for applications where a pulling force is required. The single acting hollow piston aluminium cylinder is supplied with a hard anodised piston rod and cylinder body and a steel cylinder base protection plate.

Specifications

Single Acting Hollow Piston Cylinder

  • Maximum Operating Pressure (bar): 700
  • Cylinder Capacity Advance (kN): 370
  • Stroke (mm): 51
  • Collapsed Height (mm):
  • Oil Capacity (cm³): 129
  • Cylinder Effective Area (cm²): 25.2
  • Weight (kg): 3.6

Two Stage Hand Operated Pump for Single Acting Cylinder

  • Maximum Operating Pressure (bar): 700
  • Pressure Rating 1st Stage (bar):
  • Pressure Rating 2nd Stage (bar):
  • Cylinder Compatibility: Single-acting
  • Pump Type: Two Speed
  • Reservoir Capacity (cm³):
  • Usable Oil Capacity (litres): 1
  • Maximum Flow at Rated Pressure:
  • Oil Displacement Per Stroke (cm³):     -
  • Oil Displacement Per Stroke 1st Stage (cm³): 12.9
  • Oil Displacement Per Stroke 2nd Stage (cm³): 2.3
  • Maximum Handle Effort (kg): 40
  • Piston Stroke (mm):
  • Valve Operation:  Manual 2-Way
  • Power Source: Manual
  • Weight (kg): 4.0
