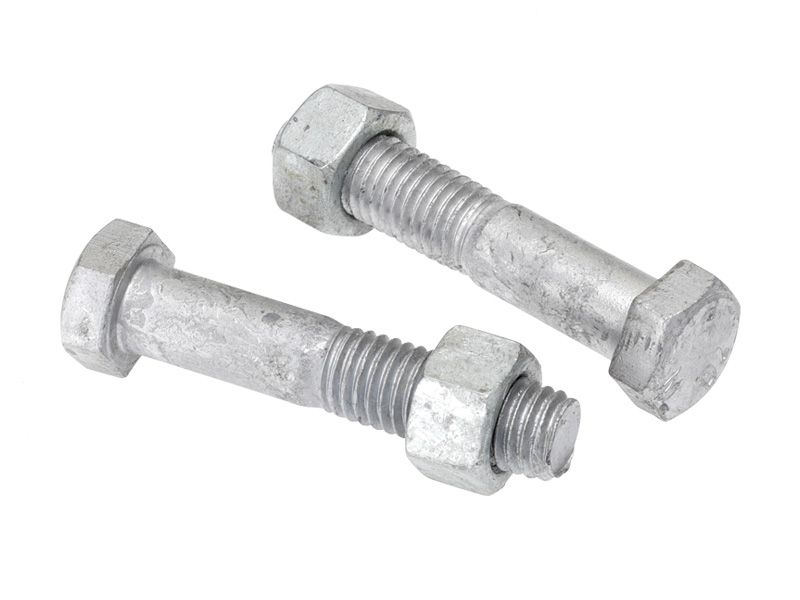

Hex Bolt & Nut 4.6 Mild-Steel HDG Metric
Hex Bolt 4.6 Mild-Steel Galvanised ISO4014/AS1111.1
- Grade 4.6 mild steel bolt and nut
- Hot dipped galavanised
- Metric coarse thread
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 4.6 Mild Steel |
| Coating & Plating | Hot Dipped Galvanised (HDG) |
| Head Type | Hexagonal |
| Driver Type | Hex Sockets |
| Diameter / Gauge | M8, M10, M12, M16, M20, M24 |
| Thread Type | Metric |
Technical Information

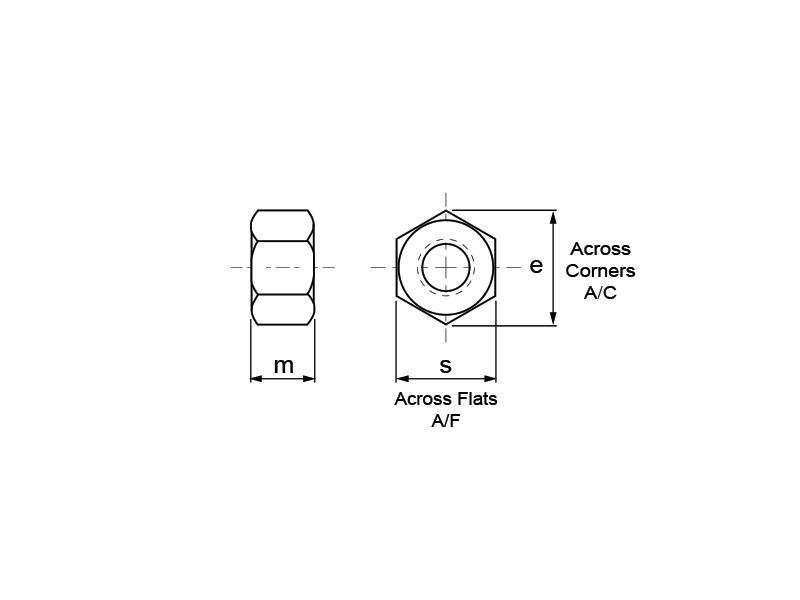

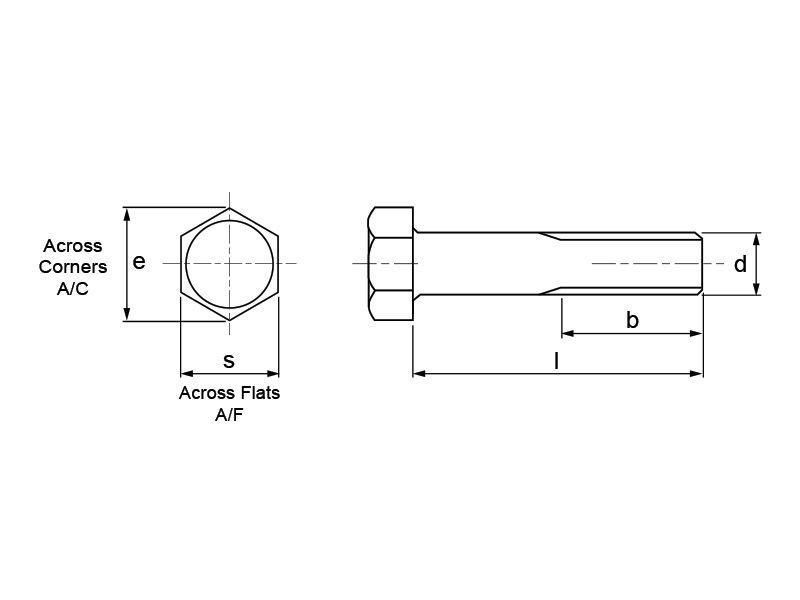

| SKU | Dia.-Pitch | Length | A/F [ s ] | A/C [ e ] | Thread Length [ b ] |
|---|---|---|---|---|---|
| 1466.0080020 | M8–1.25 | 20mm | 13mm | 15mm | 22mm |
| 1466.0080025 | M8–1.25 | 25mm | 13mm | 15mm | 22mm |
| 1466.0080030 | M8–1.25 | 30mm | 13mm | 15mm | 22mm |
| 1466.0080040 | M8–1.25 | 40mm | 13mm | 15mm | 22mm |
| 1466.0080050 | M8–1.25 | 50mm | 13mm | 15mm | 22mm |
| 1466.0080065 | M8–1.25 | 65mm | 13mm | 15mm | 22mm |
| 1466.0080075 | M8–1.25 | 75mm | 13mm | 15mm | 22mm |
| 1466.0080100 | M8–1.25 | 100mm | 13mm | 15mm | 22mm |
| 1466.0100020 | M10–1.5 | 20mm | 16mm | 18mm | 26mm |
| 1466.0100025 | M10–1.5 | 25mm | 16mm | 18mm | 26mm |
| 1466.0100030 | M10–1.5 | 30mm | 16mm | 18mm | 26mm |
| 1466.0100035 | M10–1.5 | 35mm | 16mm | 18mm | 26mm |
| 1466.0100040 | M10–1.5 | 40mm | 16mm | 18mm | 26mm |
| 1466.0100045 | M10–1.5 | 45mm | 16mm | 18mm | 26mm |
| 1466.0100050 | M10–1.5 | 50mm | 16mm | 18mm | 26mm |
| 1466.0100060 | M10–1.5 | 60mm | 16mm | 18mm | 26mm |
| 1466.0100065 | M10–1.5 | 65mm | 16mm | 18mm | 26mm |
| 1466.0100070 | M10–1.5 | 70mm | 16mm | 18mm | 26mm |
| 1466.0100075 | M10–1.5 | 75mm | 16mm | 18mm | 26mm |
| 1466.0100090 | M10–1.5 | 90mm | 16mm | 18mm | 26mm |
| 1466.0100100 | M10–1.5 | 100mm | 16mm | 18mm | 26mm |
| 1466.0200075 | M20–2.5 | 75mm | 30mm | 33mm | 46mm |
| 1466.0100160 | M10-1.5 | 160mm | 16mm | 18mm | 32mm |
| 1466.0200425 | M20-2.5 | 425mm | 30mm | 33mm | 65mm |
| 1466.0100120 | M10–1.5 | 120mm | 16mm | 18mm | 26mm |
| 1466.0100130 | M10–1.5 | 130mm | 16mm | 18mm | 32mm |
| 1466.0100140 | M10–1.5 | 140mm | 16mm | 18mm | 32mm |
| 1466.0100150 | M10–1.5 | 150mm | 16mm | 18mm | 32mm |
| 1466.0100180 | M10–1.5 | 180mm | 16mm | 18mm | 32mm |
| 1466.0100200 | M10–1.5 | 200mm | 16mm | 18mm | 45mm |
| 1466.0100220 | M10–1.5 | 220mm | 16mm | 18mm | 45mm |
| 1466.0120025 | M12–1.75 | 25mm | 18mm | 20mm | 30mm |
| 1466.0120030 | M12–1.75 | 30mm | 18mm | 20mm | 30mm |
| 1466.0120035 | M12–1.75 | 35mm | 18mm | 20mm | 30mm |
| 1466.0120040 | M12–1.75 | 40mm | 18mm | 20mm | 30mm |
| 1466.0120050 | M12–1.75 | 50mm | 18mm | 20mm | 30mm |
| 1466.0120060 | M12–1.75 | 60mm | 18mm | 20mm | 30mm |
| 1466.0120070 | M12–1.75 | 70mm | 18mm | 20mm | 30mm |
| 1466.0120075 | M12–1.75 | 75mm | 18mm | 20mm | 30mm |
| 1466.0120090 | M12–1.75 | 90mm | 18mm | 20mm | 30mm |
| 1466.0120100 | M12–1.75 | 100mm | 18mm | 20mm | 30mm |
| 1466.0120120 | M12–1.75 | 120mm | 18mm | 20mm | 30mm |
| 1466.0120130 | M12–1.75 | 130mm | 18mm | 20mm | 36mm |
| 1466.0120150 | M12–1.75 | 150mm | 18mm | 20mm | 36mm |
| 1466.0120160 | M12–1.75 | 160mm | 18mm | 20mm | 36mm |
| 1466.0120170 | M12–1.75 | 170mm | 18mm | 20mm | 36mm |
| 1466.0120180 | M12–1.75 | 180mm | 18mm | 20mm | 36mm |
| 1466.0120200 | M12–1.75 | 200mm | 18mm | 20mm | 49mm |
| 1466.0120220 | M12–1.75 | 220mm | 18mm | 20mm | 49mm |
| 1466.0160030 | M16–2.0 | 30mm | 24mm | 27mm | 30mm |
| 1466.0160040 | M16–2.0 | 40mm | 24mm | 27mm | 40mm |
| 1466.0160045 | M16–2.0 | 45mm | 24mm | 27mm | 42mm |
| 1466.0160050 | M16–2.0 | 50mm | 24mm | 27mm | 42mm |
| 1466.0160055 | M16–2.0 | 55mm | 24mm | 27mm | 42mm |
| 1466.0160060 | M16–2.0 | 60mm | 24mm | 27mm | 42mm |
| 1466.0160065 | M16–2.0 | 65mm | 24mm | 27mm | 42mm |
| 1466.0160070 | M16–2.0 | 70mm | 24mm | 27mm | 42mm |
| 1466.0160075 | M16–2.0 | 75mm | 24mm | 27mm | 42mm |
| 1466.0160080 | M16–2.0 | 80mm | 24mm | 27mm | 42mm |
| 1466.0160100 | M16–2.0 | 100mm | 24mm | 27mm | 42mm |
| 1466.0160110 | M16–2.0 | 110mm | 24mm | 27mm | 42mm |
| 1466.0160120 | M16–2.0 | 120mm | 24mm | 27mm | 42mm |
| 1466.0160140 | M16–2.0 | 140mm | 24mm | 27mm | 44mm |
| 1466.0160150 | M16–2.0 | 150mm | 24mm | 27mm | 44mm |
| 1466.0160160 | M16–2.0 | 160mm | 24mm | 27mm | 44mm |
| 1466.0160180 | M16–2.0 | 180mm | 24mm | 27mm | 44mm |
| 1466.0160200 | M16–2.0 | 200mm | 24mm | 27mm | 57mm |
| 1466.0160220 | M16–2.0 | 220mm | 24mm | 27mm | 57mm |
| 1466.0160240 | M16–2.0 | 240mm | 24mm | 27mm | 57mm |
| 1466.0160280 | M16–2.0 | 280mm | 24mm | 27mm | 57mm |
| 1466.0160300 | M16–2.0 | 300mm | 24mm | 27mm | 57mm |
| 1466.0160325 | M16–2.0 | 325mm | 24mm | 27mm | 57mm |
| 1466.0160375 | M16–2.0 | 375mm | 24mm | 27mm | 57mm |
| 1466.0160400 | M16–2.0 | 400mm | 24mm | 27mm | 57mm |
| 1466.0200045 | M20–2.5 | 45mm | 30mm | 33mm | 45mm |
| 1466.0200060 | M20–2.5 | 60mm | 30mm | 33mm | 46mm |
| 1466.0200070 | M20–2.5 | 70mm | 30mm | 33mm | 46mm |
| 1466.0200090 | M20–2.5 | 90mm | 30mm | 33mm | 46mm |
| 1466.0200100 | M20–2.5 | 100mm | 30mm | 33mm | 46mm |
| 1466.0200110 | M20–2.5 | 110mm | 30mm | 33mm | 46mm |
| 1466.0200120 | M20–2.5 | 120mm | 30mm | 33mm | 46mm |
| 1466.0200130 | M20–2.5 | 130mm | 30mm | 33mm | 52mm |
| 1466.0200150 | M20–2.5 | 150mm | 30mm | 33mm | 52mm |
| 1466.0200170 | M20–2.5 | 170mm | 30mm | 33mm | 52mm |
| 1466.0200200 | M20–2.5 | 200mm | 30mm | 33mm | 65mm |
| 1466.0200240 | M20–2.5 | 240mm | 30mm | 33mm | 65mm |
| 1466.0200280 | M20–2.5 | 280mm | 30mm | 33mm | 65mm |
| 1466.0200300 | M20–2.5 | 300mm | 30mm | 33mm | 65mm |
| 1466.0200325 | M20–2.5 | 325mm | 30mm | 33mm | 65mm |
| 1466.0200375 | M20–2.5 | 375mm | 30mm | 33mm | 65mm |
| 1466.0200400 | M20–2.5 | 400mm | 30mm | 33mm | 65mm |
| 1466.0200475 | M20–2.5 | 475mm | 30mm | 33mm | 65mm |
