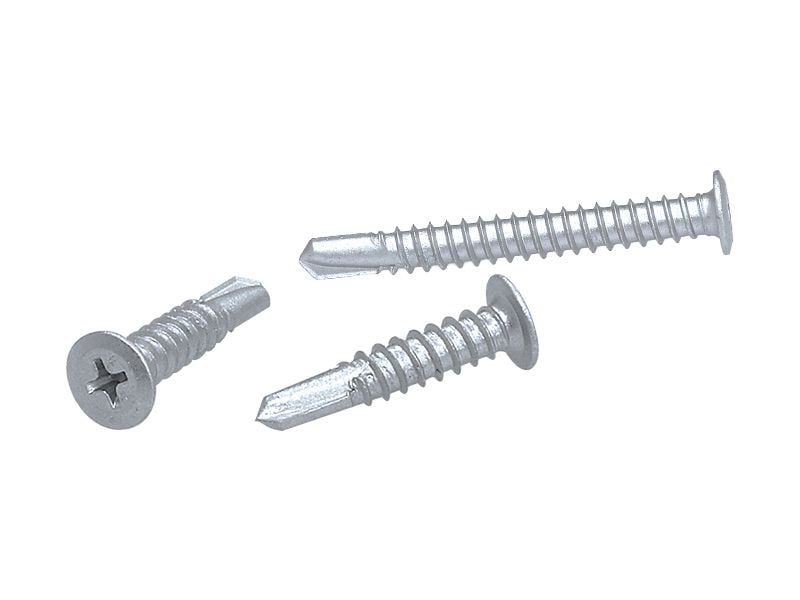

Flush Top Philips SD Screws Bimetal 316
Flush Top Philips SD Screws Bimetal 316
Flush top self drillers have the performance of 12g screws but with a very small head profile. This is an ideal solution for fitting narrow metal channel or steel brackets in facade application. The low head profile makes them suitable for fixing off brackets or tophats where cladding sheets are to be installed over the top. They will provide the best possible clamping of material up to 6mm thick.
Excellent for external use, the bimetal flushtop head screws feature a heat treated hardened carbon steel drill tips. The head and threaded body are a 316 stainless steel grade. This provides the ultimate corrosion resistance in a self drilling screw whilst still maintaining drilling performance.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
TECHNICAL INFO:
INSTALLATION
- Drill Capacity: 12g (6.00mm of steel)
- Driver Type: P2 Philips Drive
- Installation Speed: 1800 RPM Max Drill Speed
PHYSICAL CHARACTERISTICS
- Head Type: Flush Top
- Point Type: No.3 drill point
- Material: Bimetal (stainless steel 316 grade, heat treated alloy steel tip)
- Finish: Ruspert
- Head Dia: 9.1mm
- Head Height: 1.3mm
CORROSION RESISTANCE
Austenitic stainless steel 300 grade with Ruspert coating. Ruspert coating is a high-grade metal surface technology that prevents surface corrosion. Consisting of a baked ceramic surface coating and a second metallic zinc layer, these layers are bonded together through chemical reactions producing a strong coating film.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Coating & Plating | Ruspert |
|---|---|
| Material Grade | Bimetal Stainless Steel |
| Head Type | Flat Top |
| Driver Type | Philips Bit |
| Diameter / Gauge | 12g |
| Point Type | Drill Point No.3 |
| Thread Type | Coarse |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Item | Size |
|---|---|---|
| 1095.0120025 | 12-14 x 25mm | Ph2 |
| 1095.0120045 | 12-14 x 45mm | Ph2 |
