Fascia Hex Bolt Gr8.8 Hi-tensile Zinc
Fascia Hex Bolt Gr8.8 Hi-tensile Zinc

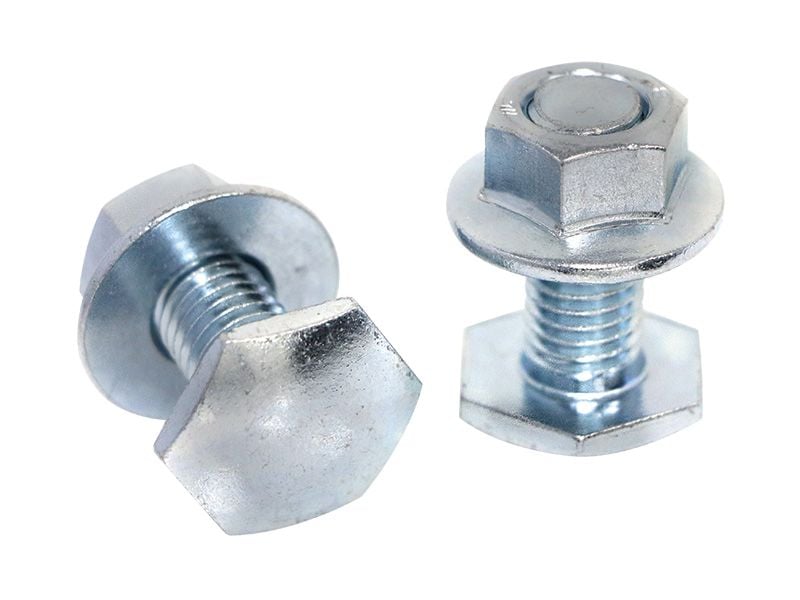

Fascia Assembly includes a fascia hex head bolt and flange hex nut. Fascia assemblies are used to support roofs when guttering is installed in industrial, commercial, and agricultural structures, as well as water tanks.
- Fascia hex head bolt
- Flange hex nut
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
FEATURES
- Metric: M12 Hex head bolt and hex nut
- Thread: Metric Coarse
- Material: 8.8 grade high tensile steel
- Finish: Zinc Plated

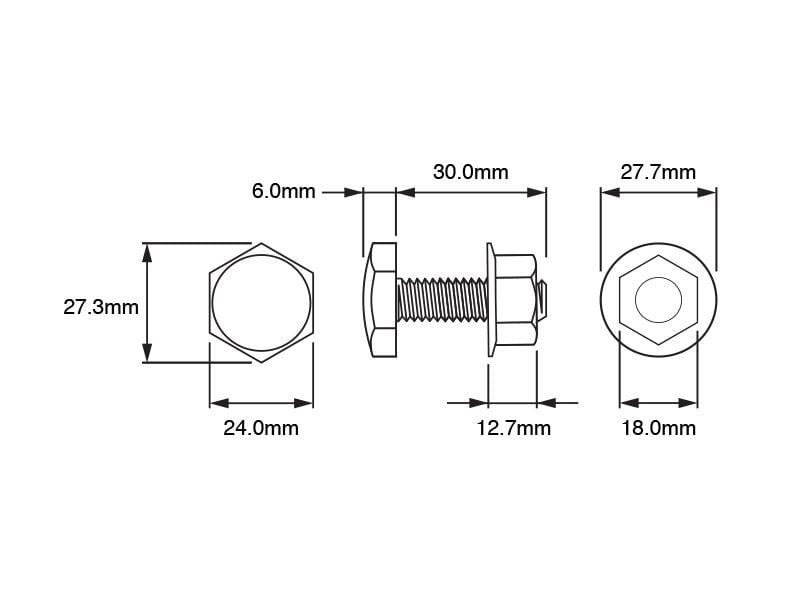

Fascia Bolt M12 x 30mm
- Head Height: 6.0mm
- Across Flats: 24.0mm
Flange Nut M12
- Diameter: 27.7mm
- Across Flats: 18.0mm
- Height: 12.7mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 8.8 Hi-Tensile Steel |
| Coating & Plating | Zinc Clear |
| Head Type | Hexagonal |
| Driver Type | Hex Socket |
| Diameter / Gauge | M12 |
| Thread Type | Metric |
Technical Information
| SKU | Dia. x Length | Across Flat | Head Height | Nut Head Height |
|---|---|---|---|---|
| 6HCHZH12030 | M12 x 30mm | 24.0 | 6.0 | 12.7 |
