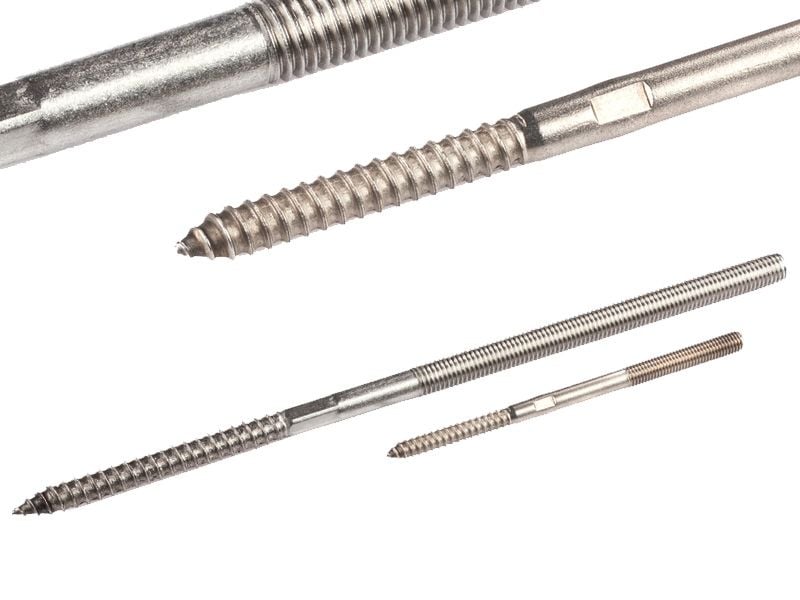

Double Thread Lag Screws 304 Stainless Steel
Double Thread Lag Screws 304 Stainless Steel
Dual thread lag screws (or hanger bolts) allow for permanent or removable connections in many applications. The wood screw thread provides a secure fixing point in soft and hard timbers, whilst the machine thread allows for internally thread parts to be joined.
- Dual thread – opposing wood screw and metric machine screw thread
- 304 stainless steel
Pilot drilling a hole in the timber material is recommended for installation. Lag screws can be driven in using 2 hex nuts in a locking configuration with a powered drill. Longer lag screws feature a flat spot above the timber thread to fit a spanner or wrench.
Also known as Hanger Bolts (Hangar) or Dowel Screws.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Plain / Unplated |
| Material Grade | 304 Stainless Steel |
| Head Type | Externally Threaded |
| Diameter / Gauge | M8, M10, M12 |
| Point Type | Type AB (Gimlet Point) |
| Thread Type | Woodscrew Thread |
| For use with | Hardwood, Timber, Treated Pine |
Technical Information
| SKU | Dia | OAL | Thread Length | Wood Thread | Dia x OAL |
|---|---|---|---|---|---|
| 1765.0080090 | M8 | 90mm | 40mm | 37mm | M8 x 90mm |
| 1765.0080100 | M8 | 100mm | 40mm | 47mm | M8 x 100mm |
| 1765.0080110 | M8 | 110mm | 40mm | 47mm | M8 x 110mm |
| 1765.0080120 | M8 | 120mm | 50mm | 47mm | M8 x 120mm |
| 1765.0080140 | M8 | 140mm | 50mm | 47mm | M8 x 140mm |
| 1765.0080160 | M8 | 160mm | 50mm | 47mm | M8 x 160mm |
| 1765.0100080 | M10 | 80mm | 20mm | 47mm | M10 x 80mm |
| 1765.0100100 | M10 | 100mm | 30mm | 57mm | M10 x 100mm |
| 1765.0100120 | M10 | 120mm | 40mm | 57mm | M10 x 120mm |
| 1765.0100140 | M10 | 140mm | 40mm | 57mm | M10 x 140mm |
| 1765.0100160 | M10 | 160mm | 40mm | 57mm | M10 x 160mm |
| 1765.0120080 | M12 | 80mm | 20mm | 47mm | M12 x 80mm |
| 1765.0120120 | M12 | 120mm | 40mm | 57mm | M12 x 120mm |
| 1765.0120140 | M12 | 140mm | 40mm | 57mm | M12 x 140mm |
| 1765.0120160 | M12 | 160mm | 40mm | 57mm | M12 x 160mm |
| 1765.0120180 | M12 | 180mm | 100mm | 57mm | M12 x 180mm |
| 1765.0120250 | M12 | 250mm | 100mm | 57mm | M12 x 250mm |
| 1765.0120300 | M12 | 300mm | 140mm | 95mm | M12 x 300mm |
