Countersunk Stainless Steel Barrel Nut
Countersunk Stainless Steel Barrel Nut
Sleeve Nut

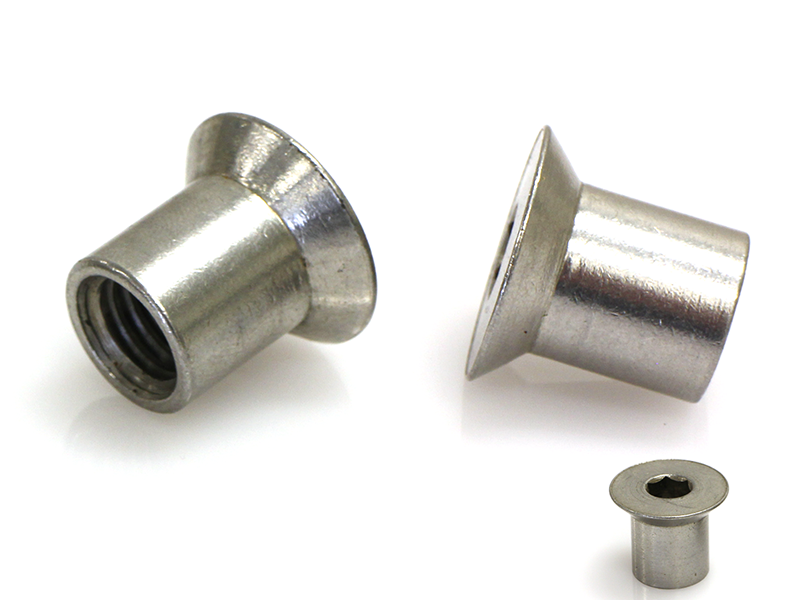

Countersunk socket head barrel nuts in 300 series stainless steel feature the same head diameter as their’ mating countersunk hex socket screws.
Most commonly used in architectural joinery features with glass, steel and timber materials using a channel design in overhead or vertical panels.
- 302 grade stainless steel
- Hex socket drive
- Countersunk head
- Metric internal thread

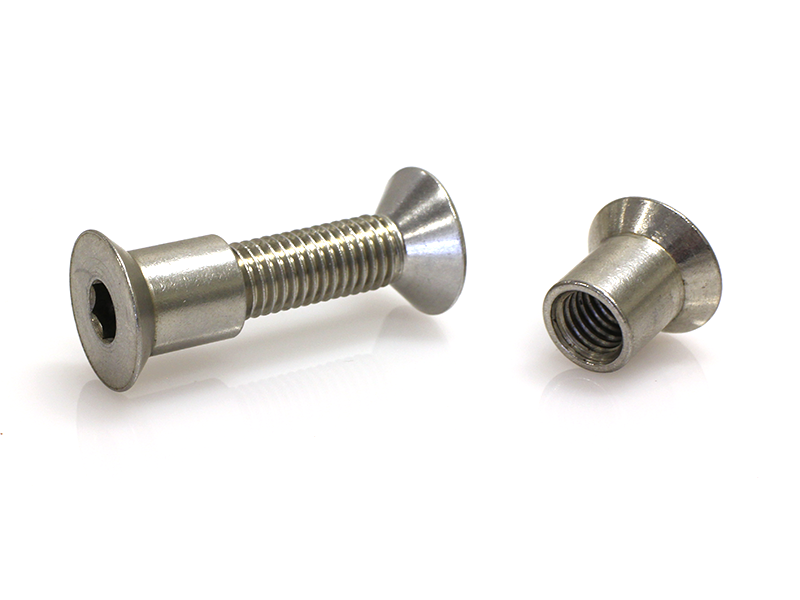

Fasten with the same hex socket tooling.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Stainless Steel |
| Driver Type | Hex Sockets |
| Nut Type | Barrel Nuts |
| Diameter / Gauge | M6, M8, M10, M12, M16 |
| Thread Type | Metric |
Technical Information
| SKU | Barrel Nut | Material | Barrel Dia. | Hex Socket | Thread x OAL |
|---|---|---|---|---|---|
| 1491.0060000 | M6 x 16mm csk nut | 302 | 8mm | 4mm | M6 x 16mm Csk Barrel Nut |
| 1491.0080000 | M8 x 16mm csk nut | 302 | 11mm | 5mm | M8 x 16mm Csk Barrel Nut |
| 1491.0100000 | M10 x 20mm csk nut | 302 | 14mm | 6mm | M10 x 20mm Csk Barrel Nut |
| 1491.0120000 | M12 x 20mm csk nut | 302 | 16mm | 8mm | M12 x 20mm Csk Barrel Nut |
| 1491.0160000 | M16 x 25mm csk nut | 302 | 22mm | 10mm | M16 x 25mm Csk Barrel Nut |
