6G Bugle Head Self-Drilling Collated Screws (TEK) – Zinc Plated

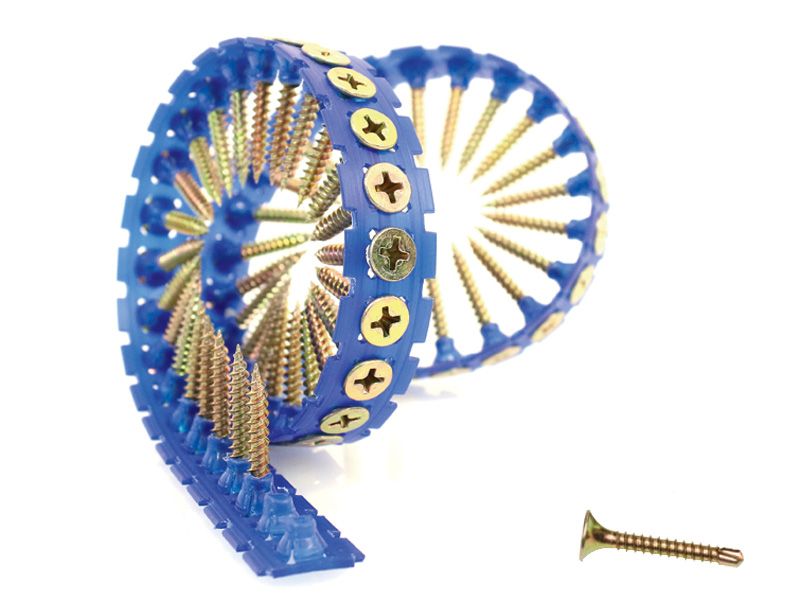

6g Collated Self Drilling Screws – Bugle Head Zinc
These 6G bugle head self-drilling collated screws are engineered for fast and efficient metal-to-metal fastening. Featuring a TEK drill point, they eliminate the need for pre-drilling while delivering strong and reliable thread engagement in light gauge steel.
Supplied in collated strips of 50, these screws are designed for use with auto-feed screw guns, increasing productivity and ensuring consistent installation across high-volume applications.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 0.8-2.3mm of Steel
- Driver Type: Philips P2
- Installation Speed: 2400 RPM Max Drill Speed
PHYSICAL CHARACTERISTICS
- Head Type: Bugle
- Point Type: Self Drilling Point
- Material: Carbon Steel
- Finish: Zinc – Yellow
- Head Dia: 8.2mm
- Head Height: 5mm
Key Features
- Self-drilling (TEK) point for metal penetration
- Suitable for metal-to-metal fixing applications
- Bugle head for controlled seating and reduced surface damage
- Zinc plated for internal corrosion resistance
- Collated strips of 50 for fast, continuous fastening
- Reduced installation time on large projects
Applications
- Metal-to-metal fixing
- Steel framing connections
- Sheet metal installation
- Commercial fit-out and services work
Tool Compatibility
Designed for use with leading collated screw gun systems using standard plastic strip collation.
Compatible Brands & Systems
- Makita collated screwdrivers (e.g. DFR450, DFR550)
- DeWalt collated systems (e.g. DCF620 with magazine attachment)
- Milwaukee M18 collated screw guns
- Hilti screw systems (e.g. SD 5000-A22 with collated attachment)
Important: Always confirm compatibility with your specific screw gun, including screw length capacity and strip format.
Available Sizes
- 6G x 25mm
- 6G x 32mm
- 6G x 41mm
Why Use Collated Self-Drilling Screws?
Collated TEK screws streamline metal fastening by combining drilling and fixing in one operation. When used with an auto-feed system, they significantly increase installation speed while maintaining consistent performance across repetitive fixing tasks.
Installation Tips
- Allow the drill point to fully penetrate before applying pressure
- Use appropriate RPM settings for metal applications
- Ensure correct driver bit engagement (PH2 recommended)
- Match screw length to material thickness
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Yellow |
| Material Grade | Carbon Steel |
| Head Type | Bugle |
| Driver Type | Philips Bit |
| Diameter / Gauge | 6g |
| Point Type | Drill Point No.3 |
| Thread Type | Fine |
| For use with | Aluminium, Sheet Metal, Steel |
| Application | Self Driller |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Drill Range | Gauge x Length |
|---|---|---|---|---|---|
| 1100.0060025 | 6-20 x 25mm | Zinc Yellow | Ph2 | 0.8 - 2.3 | 6-20 x 25mm |
| 1100.0060032 | 6-20 x 32mm | Zinc Yellow | Ph2 | 0.8 - 2.3 | 6-20 x 32mm |
| 1100.0100041 | 6-20 x 41mm | Zinc Yellow | Ph2 | 0.8 - 2.3 | 6-20 x 41mm |
Documents
FAQs
What are self-drilling collated screws used for?
Self-drilling (TEK) collated screws are used for fastening metal to metal without pre-drilling. They are commonly used in steel framing and sheet metal applications.
Can these screws drill through steel?
Yes. The TEK point is designed to drill through light gauge steel while forming threads in a single operation.
Are these compatible with Makita and DeWalt collated screw guns?
Yes, they are compatible with most Makita, DeWalt, Milwaukee and Hilti collated screw systems that support plastic strip screws.
Do I need a special drill bit?
No drilling is required. A standard PH2 driver bit is typically used for installation.
What thickness of steel can these screws handle?
They are suitable for light gauge steel applications. For thicker steel, higher specification TEK screws may be required.
